Centralized water cooled chiller

Price 350000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Centralized water cooled chiller Specification

Application
Industrial / Commercial Cooling

Refrigerating Capacity
R 407C

Water Flowing Rate
10.5 11.0 m /h

Motor
Centrifugal Water Pump Motor

Material
Aluminum, Metal

Condition
New

Usage
Industrial / Process Cooling

Type
Water Cooled Scroll Chiller

Dimension (L*W*H)
1500 x 750 x 1450 Millimeter (mm)

Size
standard

Product Type
Water Cooled Scroll Chiller

Power Supply
420 V (Three Phase)

Weight
450 Kilograms (kg)

Voltage
415 -420 V Volt (v)

Cooling Type
Water Cooled

Color
Multi

Cooling Coil Material
Copper

Water Pump Motor
1.5 HP - 2 HP

Noise Control
Below 70 dB db

Compressor
Hermetic Scroll

Warranty
1 Year

Centralized water cooled chiller Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
3 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Packaging Details
Standard And Secure

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About Centralized water cooled chiller

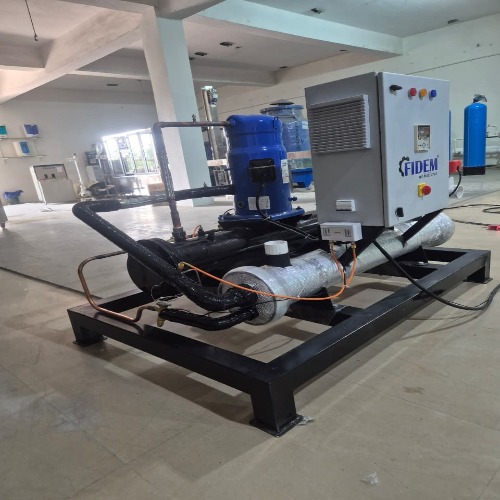

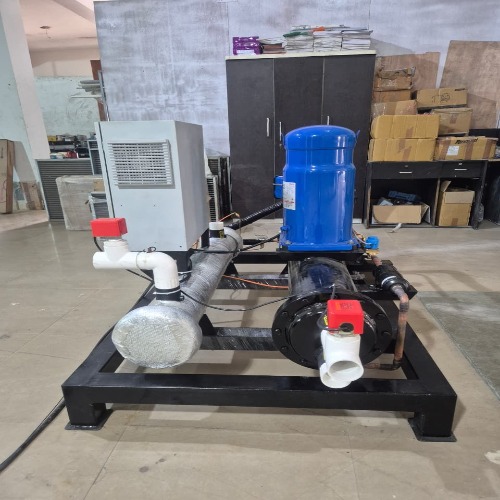

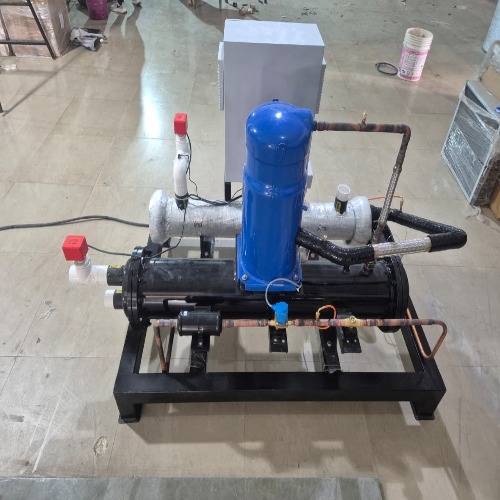

The 10 TR Water Cooled Scroll Chiller from Aquatech Plus Pvt. Ltd. is a high-performance industrial cooling system designed for continuous operation. It uses a hermetic scroll compressor and efficient water-cooled technology to deliver stable chilled water with low power consumption. Ideal for process cooling, commercial applications, and equipment heat management.

Description	Specification
Actual Cooling Capacity	10.21 TR(35.9 kW)
Nominal Rated Capacity	10.0 TR
Compressor Input Power	5.75 kW
Pump Power	0.75 kW
Total Power Input (Chiller only)	5.75 kW
Compressor Type	Hermetic Scroll
Compressor Make / Model	Danfoss
Quantity of Compressors	1 No.
Refrigerant Circuits	1 Circuit
Refrigerant	R407C /R-410A
Total Heat Rejection	52 kW
Full Load EER	11.23 Btu/Wh
Full Load COP	3.29 W/W
Estimated IPLV (COP)	3.0 3.2 W/W
Estimated IPLV (EER)	10.5 11.0 Btu/Wh
Total Power / TR	0.57 kW/TR
Altitude	0 m

CONDENSER DETAILS (WATER COOLED SHELL & TUBE)

Description	Specification
Type	Shell & Tube Water Cooled
Entering / Leaving Condenser Water	30 C / 35 C
Condenser Water Flow Rate	10.5 11.0 m/h
Design Pressure	150 psig
Fouling Factor	0.000018 mK/W
Tube Material	Copper (C12200)
Tube OD	19 mm
Pass Arrangement	2-Pass
Shell Material	Carbon Steel (IS 2062)
Water Velocity	1.0 1.2 m/s
Pressure Drop	0.05 0.10 bar
Heat Rejection	49 52 kW
