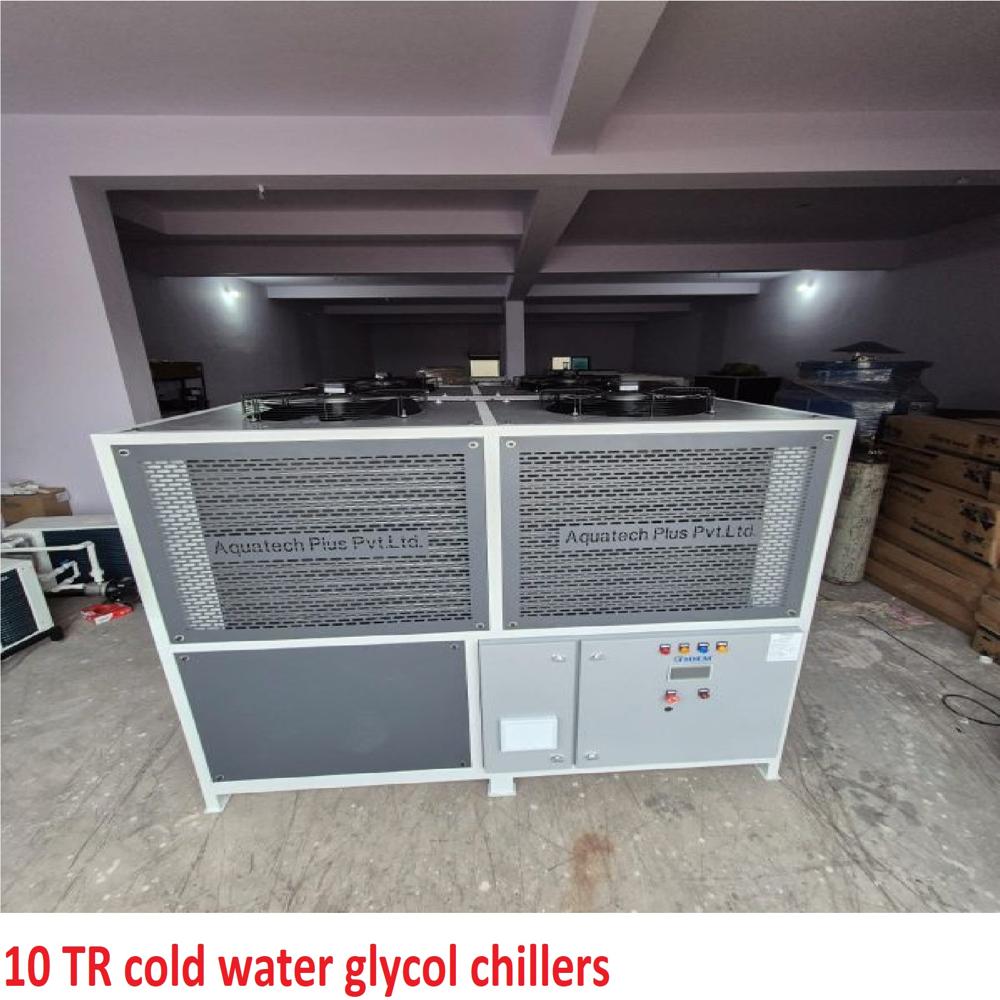

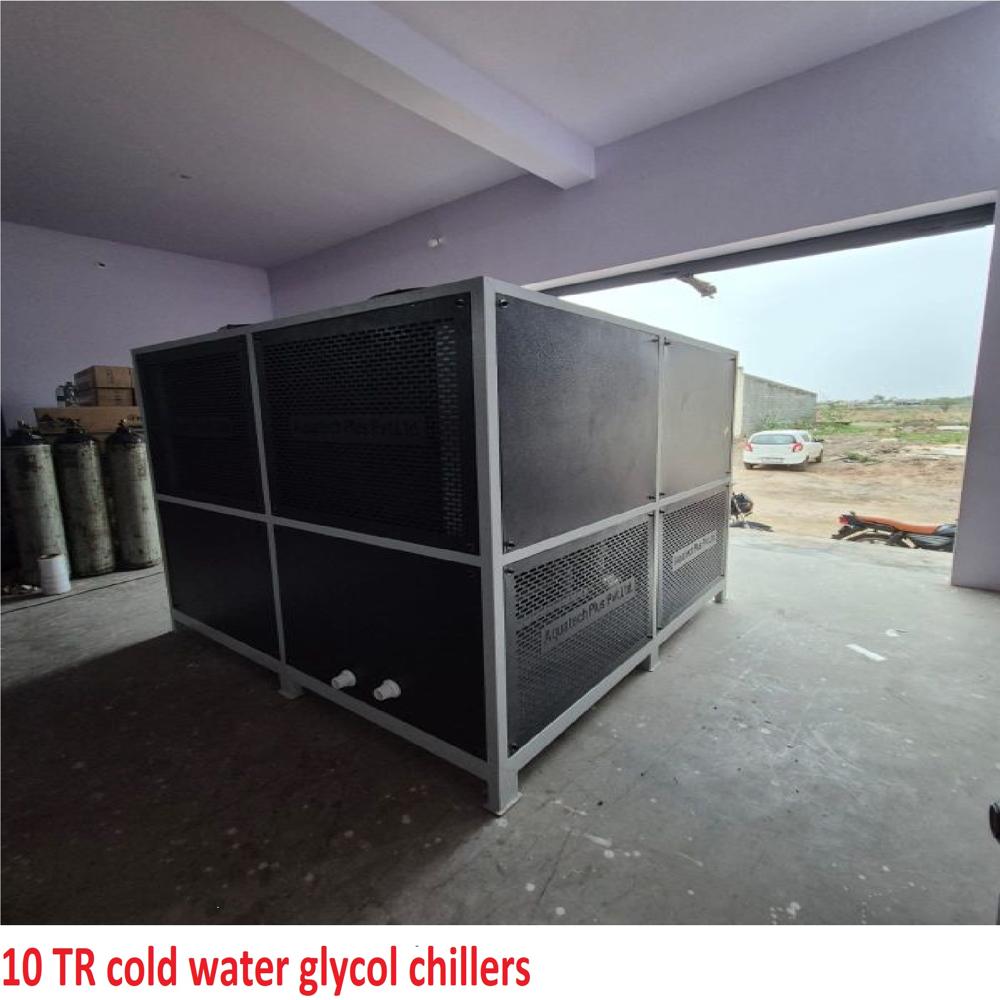

Send Inquiry10 TR cold water glycol chillers
Price 400000.0 INR/ Unit
MOQ : 1 Unit
10 TR cold water glycol chillers Specification
- Air Flow
- 4000 ft3/min (CFM)
- Application
- CHILLING WATER
- Refrigerating Capacity
- 10 TR
- Motor
- 2 HP
- Material
- Metal
- Water Flowing Rate
- 2000 lph
- Usage
- CHILLING WATER
- Condition
- New
- Type
- AIR COOLED SCROLL GLYCOL CHILLER
- Dimension (L*W*H)
- 90X70X50 Inch (in)
- Size
- STANDARD
- Height
- 50 Inch (in)
- Power Supply
- 50 HZ
- Product Type
- AIR COOLED GLYCOL CHILLER
- Voltage
- 400 Volt (v)
- Weight
- 1000 Kilograms (kg)
- Color
- MULTI
- Cooling Type
- COPPER
- Length
- 70 Inch (in)
- Nozzle Material
- METEL
- Width
- 90 Inch (in)
- Cooling Coil Material
- COPPER
- Water Pump Motor
- 2 HP
- Noise Control
- 30 db
- Compressor
- scroll
- Warranty
- 1 YEAR
10 TR cold water glycol chillers Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- MUNDRA
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 3 Units Per Month
- Delivery Time
- 15 Days
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- STANDARD PACKAGING
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC
About 10 TR cold water glycol chillers
Technical Specification Air Cooled Chiller (10 TR):| Sr. No. | Parameter | Specification |
|---|---|---|
| 1 | Model | FMACS-10TR-407 |
| 2 | Cooling Capacity | 10 TR |
| 3 | Refrigeration Circuit | 1 No. |
| 4 | Power Supply | 400 V / 50 Hz / 3 Phase |
| 5 | Connecting Load | 12 kW / 20 A |
| 6 | Refrigerant | R-407C |
| 7 | Refrigerant Control | Thermostatic Expansion Valve |
| 8 | Evaporating SST | 7C |
| 9 | Condensing SDT | 48C |
| 10 | Ambient Temperature | 60C |
| 11 | Working Temperature Range | 7C to 20C |
| 12 | Chilled Water Flow Rate | 4500 LPH @ T 15C |
| 13 | Condenser Air Flow | 10,000 CFM |
| 14 | Fan Type | Axial (Large Blade) |
| 15 | Fan Quantity | 2 Nos. |
| 16 | Fan Size | 500 mm (Suction Type) |
| 17 | Fan Power | 0.8 kW 2 |
| 18 | Compressor Type | Scroll |
| 19 | Compressor Quantity | 2 Nos. |
| 20 | Compressor Power | 9 kW / 16 A |
| 21 | Starting Mode | Regular (Direct Start) |
| 22 | Capacity Control | 0 / 100% |
| 23 | Evaporator Type | BPHE (Brazed Plate Heat Exchanger) |
| 24 | Evaporator Pipe Connection | 1.5 inch |
| 25 | Evaporator Shell MOC | MS, Powder Coated |
| 26 | Evaporator MOC | Copper & SS-304 |
| 27 | Condenser Type | Air Cooled (Copper Tube) 6 sq.ft per TR |
| 28 | Condenser Pipe Size | 3/8 inch |
| 29 | Chiller Body & Support | Galvanized Steel |
| 30 | Pump | SS-304 / 1.5 HP |
| 31 | Safety Protection | Internal motor thermostat, overload relay, high & low pressure switch, reverse phase protection, discharge gas thermostat, flow switch, anti-freeze protection |
| 32 | Electrical Control Panel | Controller, protection relay, contactor, MCB, phase preventer, timer |
