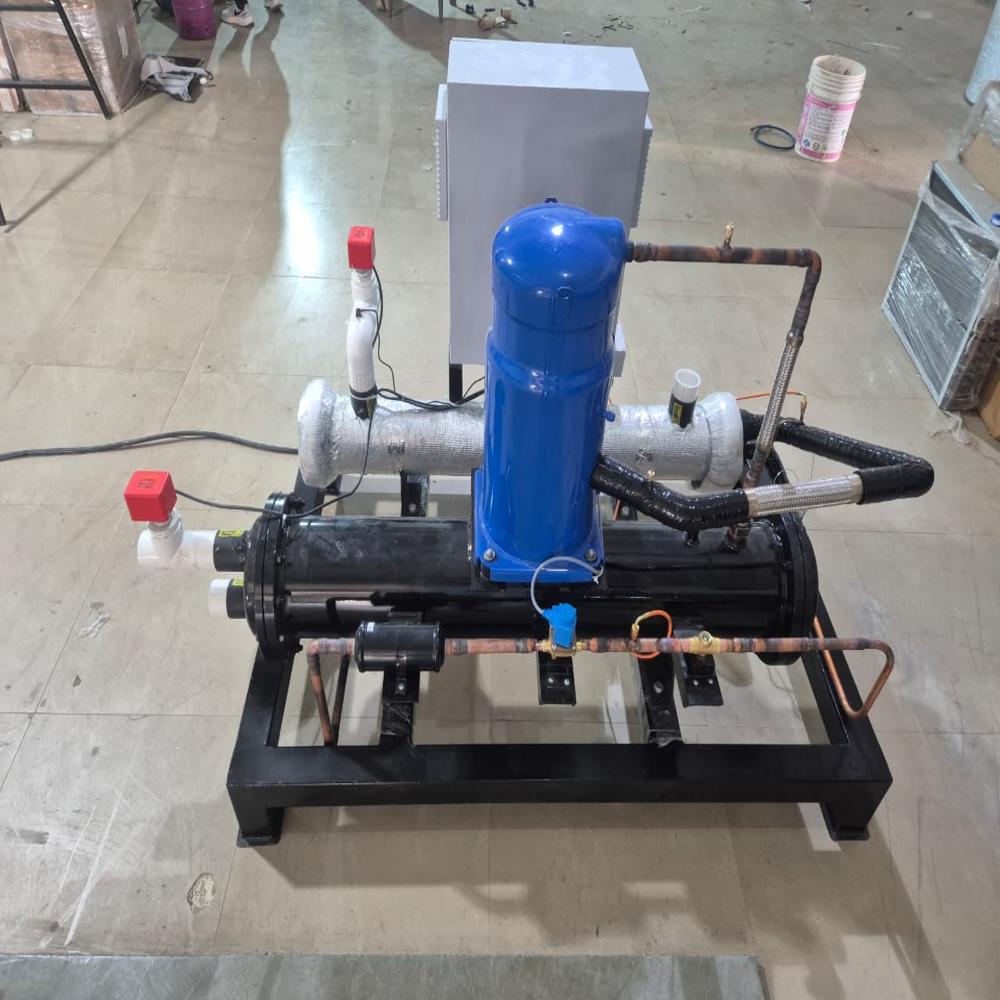

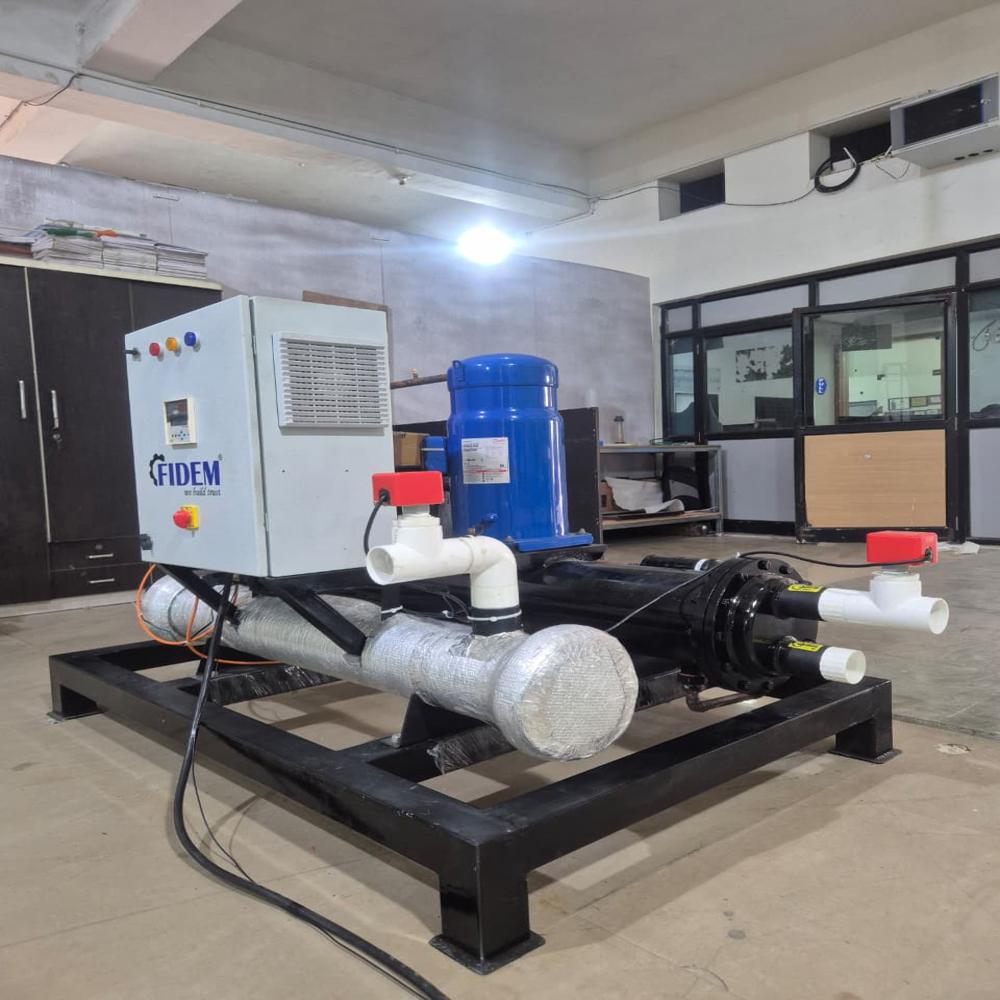

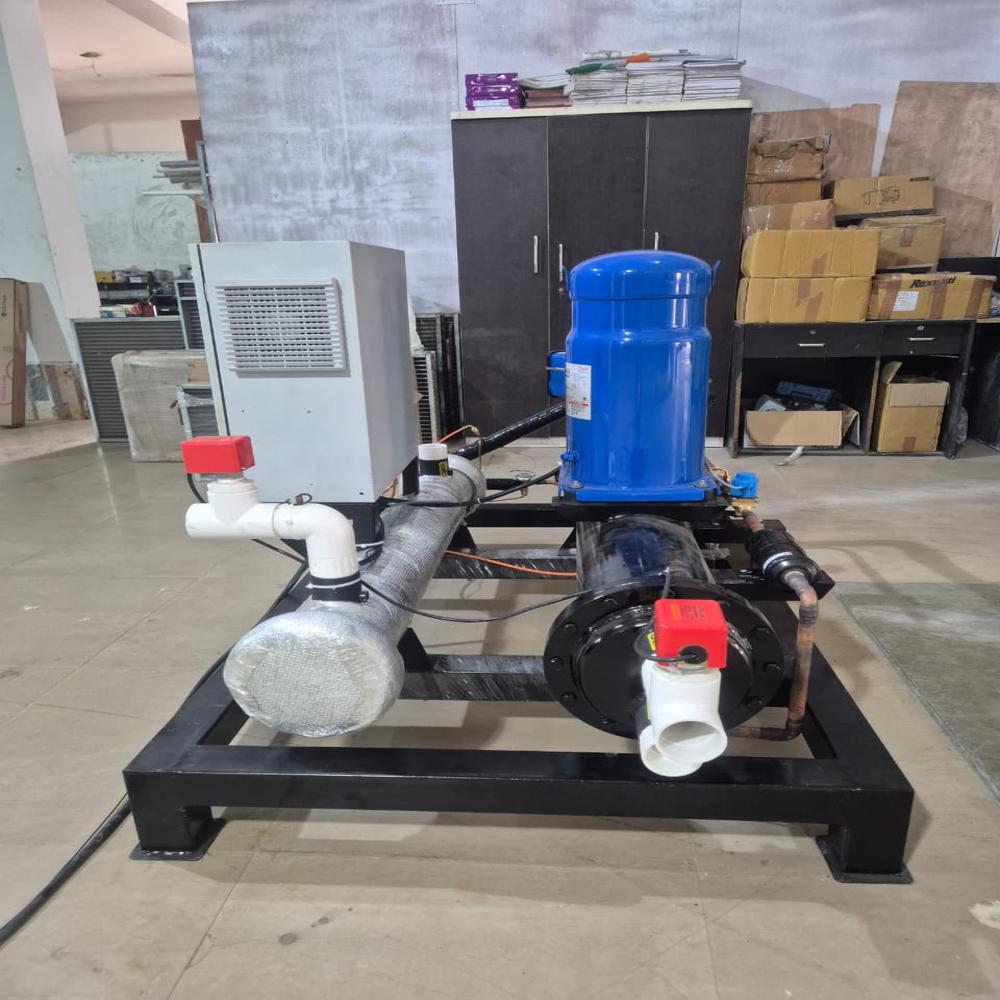

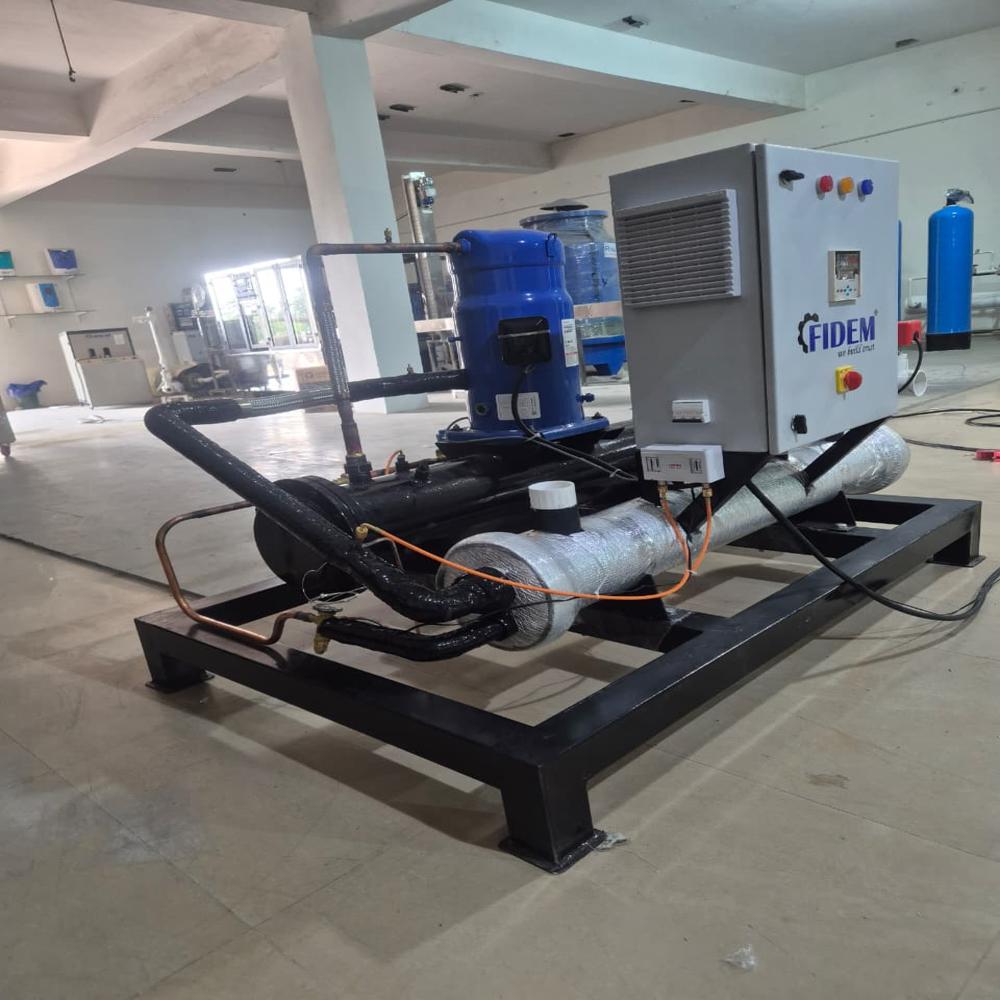

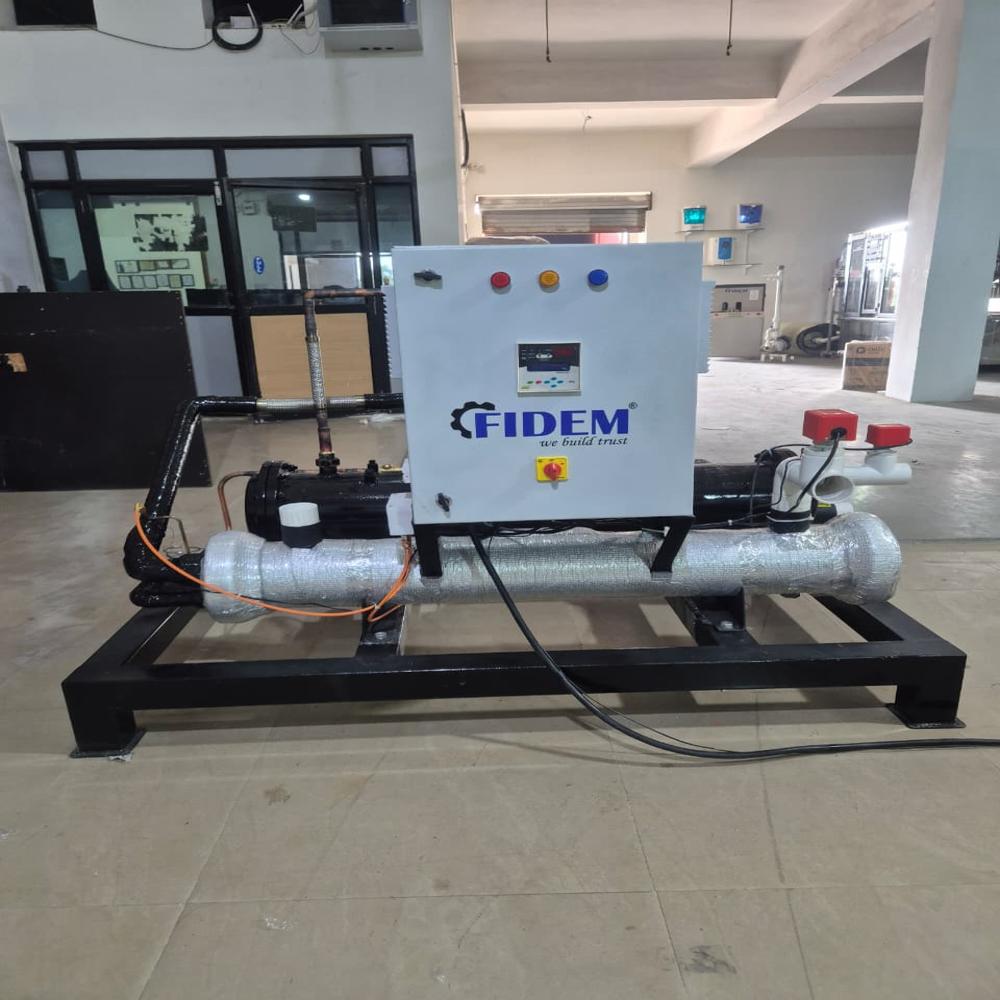

10 TR WATER COOLED SCROLL CHILLER

Name: 10 TR WATER COOLED SCROLL CHILLER
Brand: AQUATECH PLUS PVT. LTD.
Price: 350000.0 INR
Availability: InStock

Price 350000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

10 TR WATER COOLED SCROLL CHILLER Specification

Application
CHILLING WATER

Motor
1.5 HP

Water Flowing Rate
1000 LPH

Air Flow
NA ft3/min (CFM)

Refrigerating Capacity
10 TR

Material
Metal

Condition
New

Usage
CHILLING WATER

Type
WATER COOLED

Dimension (L*W*H)
1700*900*1350 Millimeter (mm)

Size
STANDARD

Height
900 Millimeter (mm)

Product Type
WATER COOLED CHILLER

Power Supply
50 HERTZ

Voltage
415 Volt (v)

Weight
700 Kilograms (kg)

Cooling Type
WATER COOLED

Color
MULTI

Width
1700 Millimeter (mm)

Nozzle Material
METEL

Length
1700 Millimeter (mm)

Cooling Coil Material
COPPER

Water Pump Motor
1.5 HP

Noise Control
30 db

Compressor
SCROLL

Warranty
1 YEAR

10 TR WATER COOLED SCROLL CHILLER Trade Information

Minimum Order Quantity
1 Unit

FOB Port
MUNDRA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
1 Unit Per Week

Delivery Time
15 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
STANDARD PACKAGIN

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About 10 TR WATER COOLED SCROLL CHILLER

Description	Specification
Actual Cooling Capacity	10.21 TR (35.9 kW)
Nominal Rated Capacity	10.0 TR
Compressor Input Power	5.75 kW
Pump Power	0.75 kW
Total Power Input (Chiller only)	5.75 kW
Compressor Type	Hermetic Scroll
Compressor Make / Model	Danfoss
Quantity of Compressors	1 No.
Refrigerant Circuits	1 Circuit
Refrigerant	R407C /R-410A
Total Heat Rejection	52 kW
Full Load EER	11.23 Btu/Wh
Full Load COP	3.29 W/W
Estimated IPLV (COP)	3.0 3.2 W/W
Estimated IPLV (EER)	10.5 11.0 Btu/Wh
Total Power / TR	0.57 kW/TR
Altitude	0 m

2. CONDENSER DETAILS (WATER COOLED SHELL & TUBE)

Description	Specification
Type	Shell & Tube Water Cooled
Entering / Leaving Condenser Water	30 C / 35 C
Condenser Water Flow Rate	10.5 11.0 m/h
Design Pressure	150 psig
Fouling Factor	0.000018 mK/W
Tube Material	Copper (C12200)
Tube OD	19 mm
Pass Arrangement	2-Pass
Shell Material	Carbon Steel (IS 2062)
Water Velocity	1.0 1.2 m/s
Pressure Drop	0.05 0.10 bar
Heat Rejection	49 52 kW

3. EVAPORATOR DETAILS (SHELL & TUBE)

Description	Specification
Type	Shell & Tube Removable Tube Bundle
Entering / Leaving Chilled Water	12 C / 7 C
Chilled Water T	5 C
Chilled Water Flow Rate	8.6 8.8 m/h
Design Pressure	150 psig
Evaporating Temperature	+5.0 C
Tube Material	Copper
Tube OD	19 mm
Pass Arrangement	2-Pass
Water Velocity	0.7 1.0 m/s
Pressure Drop	0.02 0.05 bar

4. ELECTRICAL DATA

Description	Specification
Power Supply	415 V / 3 Ph / 50 Hz
Voltage Range	360 440 V
Compressor Power	5.75 kW
Full Load Current	13 15 A
Starting Method	DOL / Star-Delta
Control Power	230 V AC
Compressor Speed	2900 rpm
Circuit Protection	O/L Relay, MCB, Main MCCB

5. PHYSICAL DATA

Description	Specification
Operating Weight	650 750 kg
Length	1,700 mm
Width	900 mm
Height	1,350 mm
Mounting	Common Base Frame
Transport	Suitable for small truck movement
