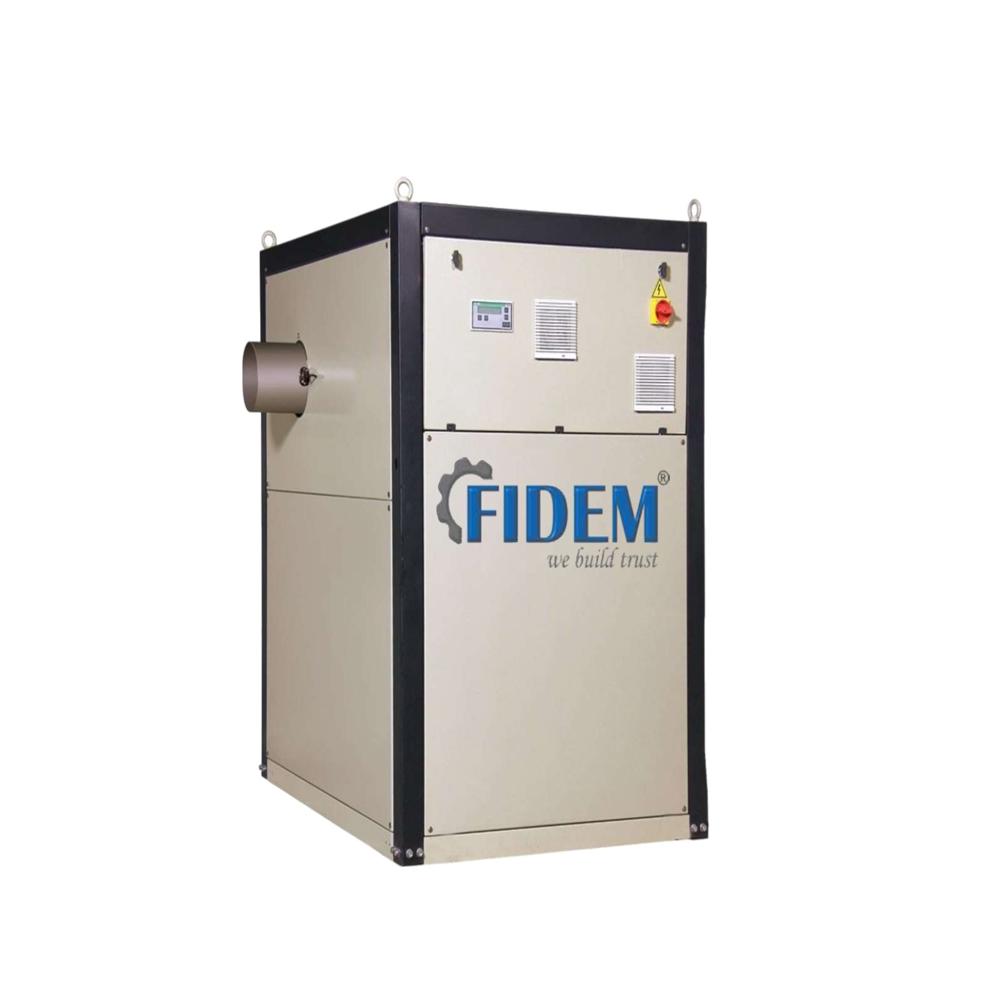

Send Inquiry12 TR air cooled scroll chiller
Price 380000.0 INR/ Unit
MOQ : 1 Unit
12 TR air cooled scroll chiller Specification
- Motor
- NA
- Refrigerating Capacity
- 12 tr
- Material
- Metal
- Water Flowing Rate
- NA
- Application
- chilled air
- Air Flow
- 3000 ft3/min (CFM)
- Condition
- New
- Usage
- chilling air
- Type
- air cooled air chiller
- Size
- standard
- Dimension (L*W*H)
- 2350 2550 2350 Millimeter (mm)
- Height
- 2350 Millimeter (mm)
- Product Type
- air cooled air chiller
- Power Supply
- 50 hz
- Weight
- 1000 Kilograms (kg)
- Voltage
- 415 Volt (v)
- Cooling Type
- air cooled air chiller
- Color
- multi
- Length
- 2350 Millimeter (mm)
- Width
- 2550 Millimeter (mm)
- Nozzle Material
- metel
- Cooling Coil Material
- copper
- Water Pump Motor
- NA
- Noise Control
- 30 db
- Compressor
- scroll
- Warranty
- 1 year
12 TR air cooled scroll chiller Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Mundra
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 5 Units Per Month
- Delivery Time
- 15 Days
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- Standard packaging
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Middle East, Africa, Western Europe
- Main Domestic Market
- All India
- Certifications
- ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC
About 12 TR air cooled scroll chiller
2. Technical Specifications:
|
Parameter |
Specification |
|
Model |
FMACA 12 |
|
Nominal Cooling Capacity |
43 kW (12.6 TR) |
|
At Air outlet temperature |
15 C |
|
Design Air Flow Rate |
3000 m/hr |
|
Ambient Temperature |
40C |
|
Control Range |
+5 to +20 C |
|
Cooling Circuit |
1 No. |
|
Cooling Agent |
R22 |
|
No. of Compressor |
2 Nos. |
|
No. of Gas Circuit |
2 No. |
|
No. of Fan / Fan Power |
2 Nos. / 2.63 kW each |
|
Compressor Power |
6.32 kW 2 |
|
Maximum Air Flow Rate |
3000 m/hr |
|
Minimum Air Flow Rate |
1200 m/hr |
|
Pressure Drop of Air Through Evaporator |
150 Pa |
|
Air Connection IN / OUT |
200 mm |
|
Air Temperature IN / OUT |
40C / 15C |
|
Relative Humidity |
|
|
Electrical Power Supply |
415V, 50 Hz, 3 phase |
|
Control Voltage |
24V DC |
|
Condenser And Evaporator MOC |
Copper And Aluminum |
|
Copper tube |
Silver Coted |
|
Fines |
Anticorrosion Coting |
|
Total Connected Load |
15.27 kW |
|
Main Dimensions (W D H) |
2350 2550 2350 mm |
|
Weight |
1300 kg |
|
Color |
Gray and Off White |
|
Air Cooled Air Chiller Require Fresh Air Suction on Condenser side and hot exhaust on top of the chiller |
3. Make of Components:
|
Component |
Make |
|
Compressor |
Emerson / Danfoss |
|
Evaporator |
Aquatech Plus |
|
Condenser |
Aquatech Plus |
|
VFD (Optional) |
Frecon |
|
Expansion Valve |
Danfoss |
|
Control Panel |
Aquatech Plus |
|
Filter |
Aquatech Plus |
|
Solenoid Valve |
Danfoss |
|
Flow Switch |
Castle |
|
Pressure Switch |
Danfoss |
