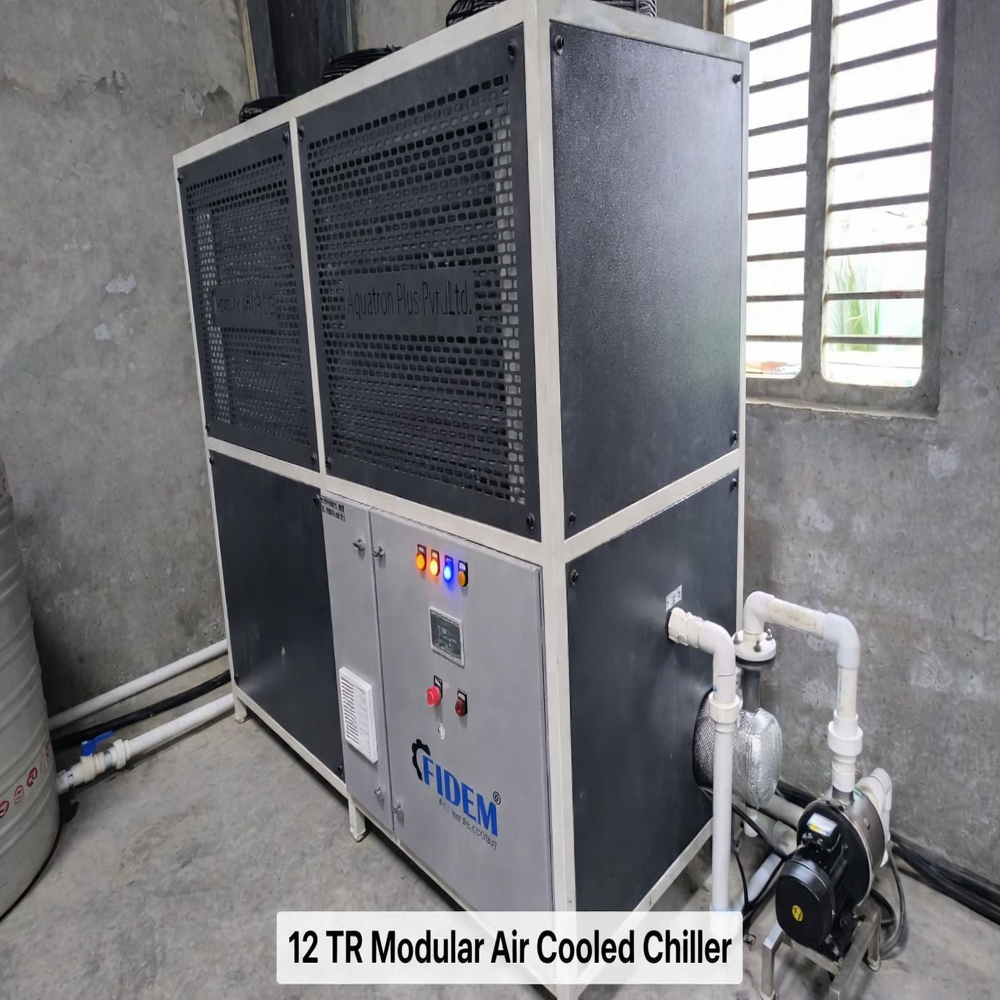

Send Inquiry12 TR modular air cooled chiller
Price 380000.0 INR/ Unit
MOQ : 1 Unit
12 TR modular air cooled chiller Specification
- Air Flow
- 7000 ft3/min (CFM)
- Refrigerating Capacity
- 12 TR
- Water Flowing Rate
- 4000 lph
- Motor
- 1 HP
- Application
- chilling water
- Material
- Metal
- Usage
- chilling water
- Condition
- New
- Type
- air cooled
- Size
- Standard
- Dimension (L*W*H)
- 2350 2550 2350 Inch (in)
- Height
- 2350 Inch (in)
- Product Type
- air cooled chiller
- Power Supply
- 50 HZ
- Weight
- 1000 Kilograms (kg)
- Voltage
- 400 Volt (v)
- Cooling Type
- air cooled
- Color
- Multi
- Length
- 2350 Inch (in)
- Width
- 2550 Inch (in)
- Nozzle Material
- metel
- Cooling Coil Material
- copper
- Water Pump Motor
- 1 HP
- Noise Control
- 30 db
- Compressor
- scroll
- Warranty
- 1 year
12 TR modular air cooled chiller Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Mundra
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 5 Units Per Month
- Delivery Time
- 15 Days
- Sample Available
- Yes
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- Standard And Secure
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC
About 12 TR modular air cooled chiller
| Parameter | Specification |
|---|---|
| Model | FMACA 12 |
| Nominal Cooling Capacity | 43 kW (12.6 TR) |
| Air Outlet Temperature | 15 C |
| Design Air Flow Rate | 3000 m/hr |
| Ambient Temperature | 40 C |
| Control Range | +5 C to +20 C |
| Cooling Circuit | 1 No. |
| Cooling Agent (Refrigerant) | R22 |
| Number of Compressors | 2 Nos. |
| Number of Gas Circuits | 2 Nos. |
| Number of Fans / Fan Power | 2 Nos. / 2.63 kW each |
| Compressor Power | 6.32 kW 2 |
| Maximum Air Flow Rate | 3000 m/hr |
| Minimum Air Flow Rate | 1200 m/hr |
| Pressure Drop Across Evaporator | 150 Pa |
| Air Connection (Inlet / Outlet) | 200 mm |
| Air Temperature (In / Out) | 40 C / 15 C |
| Relative Humidity | |
| Electrical Power Supply | 415 V, 50 Hz, 3 Phase |
| Control Voltage | 24 V DC |
| Condenser & Evaporator MOC | Copper & Aluminum |
| Copper Tube | Silver Coated |
| Fins | Anti-corrosion Coated |
| Total Connected Load | 15.27 kW |
| Main Dimensions (W D H) | 2350 2550 2350 mm |
| Approx. Weight | 1300 kg |
| Color | Gray & Off White |
Installation Note:
The air-cooled air chiller requires fresh air suction on the condenser side and hot air exhaust from the top of the chiller.
