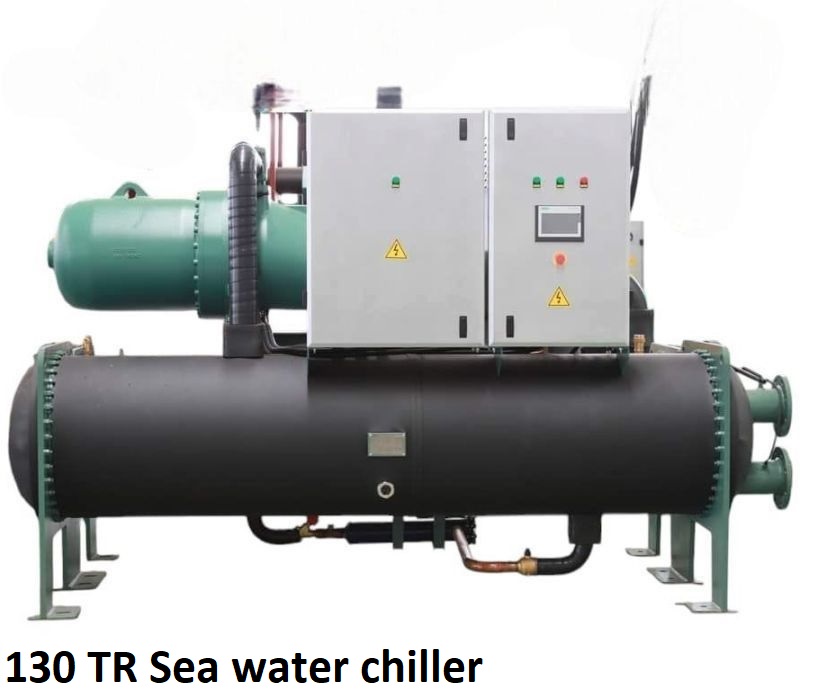

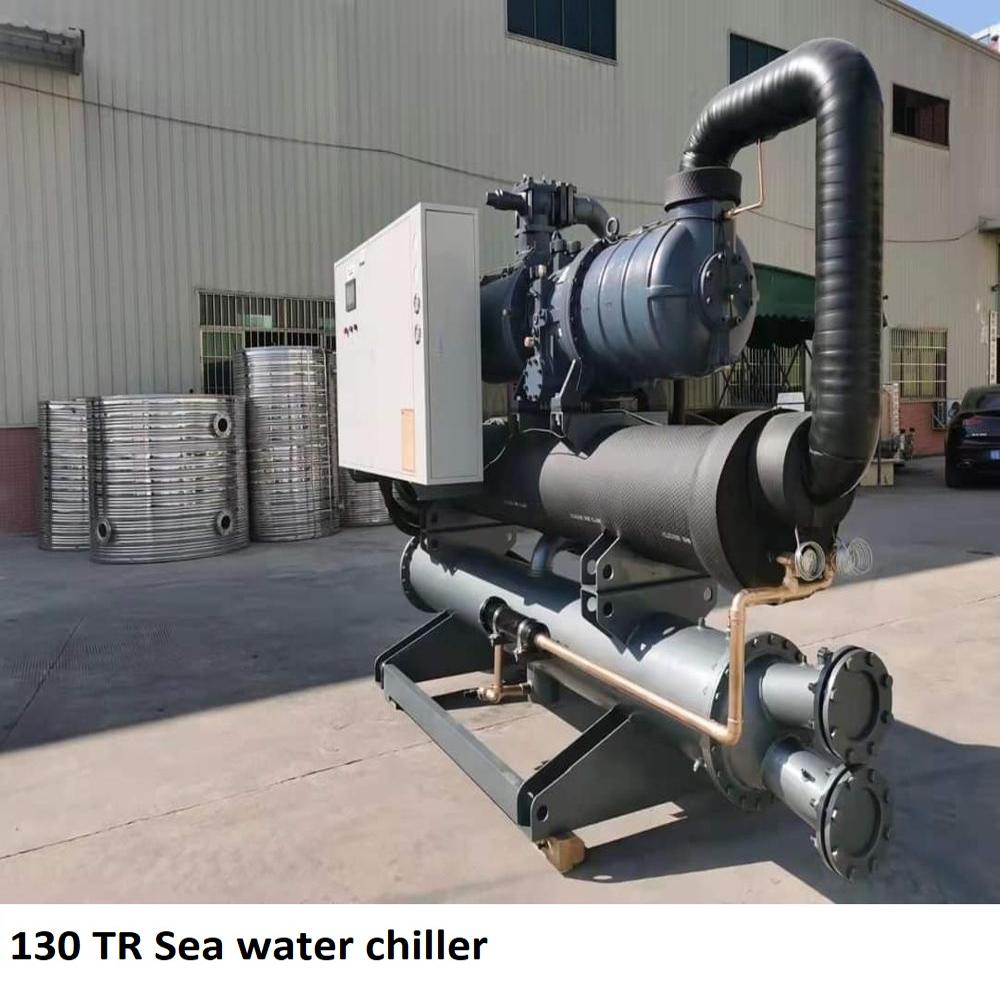

Send Inquiry130 TR Sea water chiller
Price 3300000.0 INR/ Unit
MOQ : 1 Unit
130 TR Sea water chiller Specification
- Refrigerating Capacity
- 130 TR
- Application
- chilling water
- Material
- Metal
- Motor
- 5 HP
- Air Flow
- NA ft3/min (CFM)
- Water Flowing Rate
- 15000
- Usage
- chilling water
- Condition
- New
- Type
- water cooled
- Size
- Standard
- Dimension (L*W*H)
- 100x80x80 Inch (in)
- Height
- 80 Inch (in)
- Power Supply
- 50 HZ
- Product Type
- water cooled
- Voltage
- 400 Volt (v)
- Weight
- 2000 Kilograms (kg)
- Color
- Multi
- Cooling Type
- water cooled
- Nozzle Material
- metel
- Length
- 80 Inch (in)
- Width
- 100 Inch (in)
- Cooling Coil Material
- copper
- Water Pump Motor
- 5 HP
- Noise Control
- 30 db
- Compressor
- screw
- Warranty
- 1 year
130 TR Sea water chiller Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Mundra
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 3 Units Per Month
- Delivery Time
- 15 Days
- Sample Available
- Yes
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- Standard packaging
- Main Export Market(s)
- Africa, Asia, Central America, North America, South America, Eastern Europe, Australia, Western Europe, Middle East
- Main Domestic Market
- All India
- Certifications
- ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC
About 130 TR Sea water chiller
Technical Specification:| Sr. No. | Parameter | Details |
|---|---|---|
| 1 | Model | FMACS-130TR-407 |
| 2 | Cooling Capacity | 130 TR / 464 kW |
| 3 | Refrigeration Circuit | 1 No. |
| 4 | Power Supply | 400 V, 50 Hz |
| 5 | Connected Load | 92.5 kW / 154.8 A |
| 6 | Refrigerant | R407C |
| 7 | Refrigerant Control | Thermostatic Expansion Valve |
| 8 | Evaporating SST | 5C |
| 9 | Condensing SDT | 35C |
| 10 | Ambient Temperature | 48C |
| 11 | Working Temperature Range | +7C to +20C |
| 12 | Chilled Water Flow | 78,000 LPH @ T 5C |
| 13 | Compressor Type | Screw |
| 14 | Compressor Quantity | 1 No. |
| 15 | Compressor Power | 92.5 kW / 154.8 A |
| 16 | Starting Mode | Regular |
| 17 | Capacity Control | 0%, 25%, 50%, 75%, 100% |
| 18 | Evaporator Type | Shell & Tube |
| 19 | Evaporator Pipe Connection | 4" |
| 20 | Evaporator Shell MOC | MS, Powder Coated |
| 21 | Evaporator Tube MOC | Copper & SS-304 |
| 22 | Condenser Type | Shell & Tube |
| 23 | Condenser Support | Galvanized |
| 24 | Safety Protections | Compressor motor thermostat, overload relay, HP/LP switch, reverse phase protection relay, discharge gas thermostat, flow switch, anti-freeze protection |
| 25 | Electrical Control Panel | Controller, protection relay, contactor, MCB, phase preventer, timer |
| 26 | Dimensions (L W H) | To be provided after order confirmation along with GA drawing |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Water Cooled Chiller Category
130 TR Water cooled chiller system
Price 3300000.0 INR / Unit
Minimum Order Quantity : 1 Unit
Length : 80 Inch (in)
Usage : chilling water
Air Flow : NA ft3/min (CFM)
Height : 80 Inch (in)
40 tr brine water -cooled screw chiller
Price 2050000.0 INR / Unit
Minimum Order Quantity : 1 Unit
Length : 60 Inch (in)
Usage : chilling water
Air Flow : NA ft3/min (CFM)
Height : 60 Inch (in)

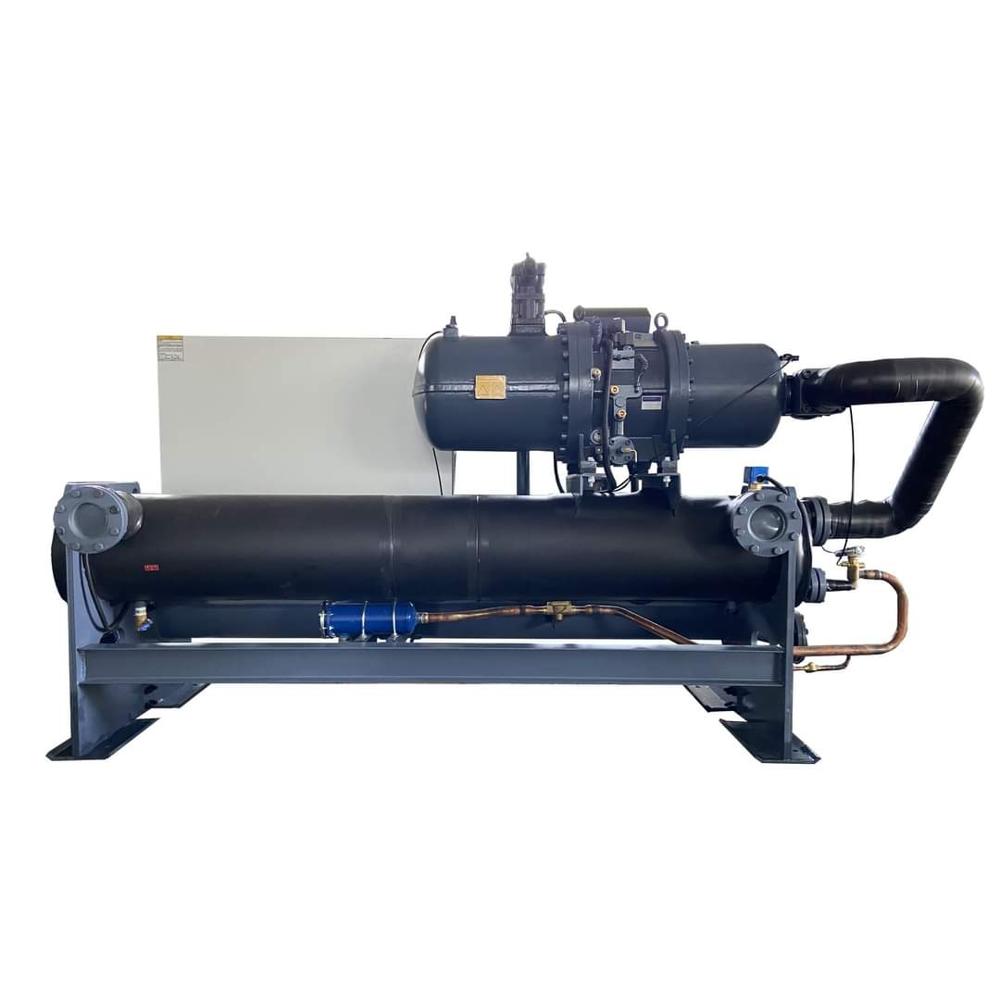

30 TR Custom chiller solution
