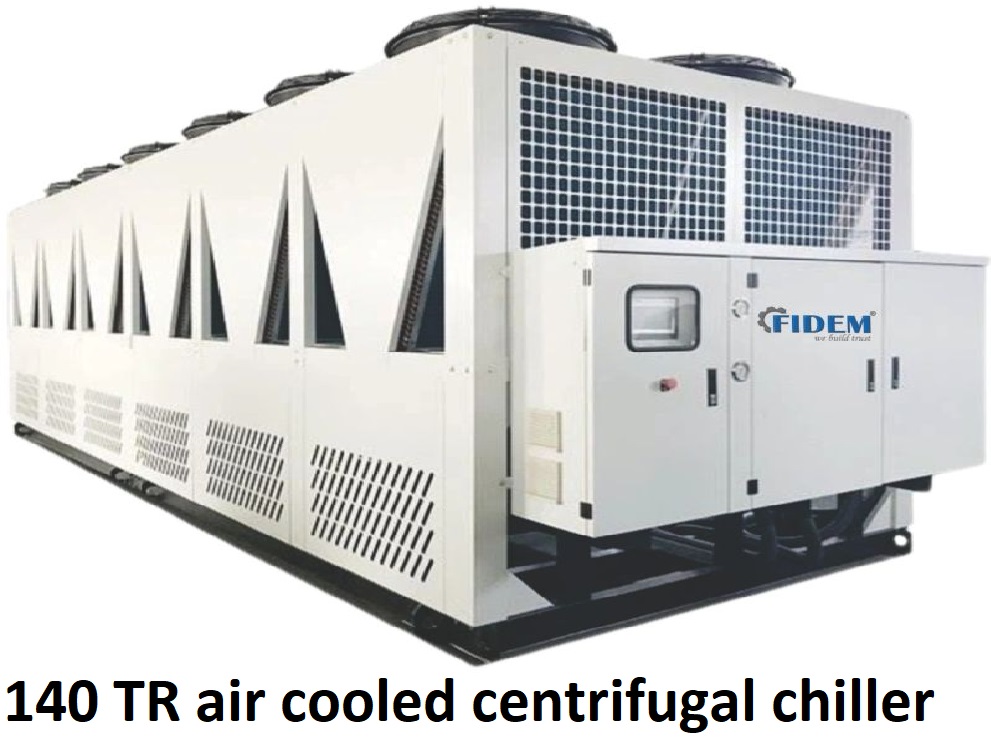

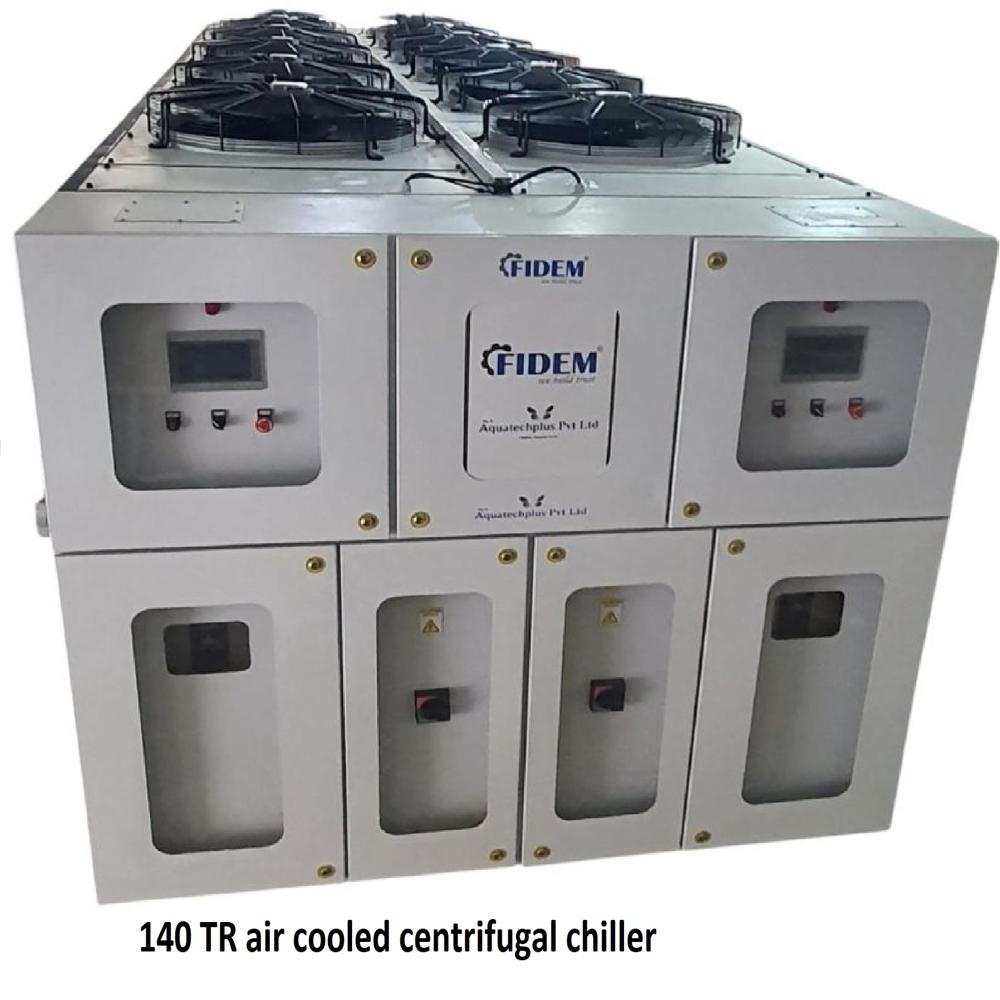

140 TR air cooled centrifugal chiller

Price 7500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

140 TR air cooled centrifugal chiller Specification

Motor
5 HP

Air Flow
56000 ft3/min (CFM)

Material
Metal

Application
chilling water

Water Flowing Rate
20000 lph

Refrigerating Capacity
140 TR

Condition
New

Usage
chilling water

Type
air cooled screw

Size
standard

Dimension (L*W*H)
200x180x90 Inch (in)

Height
90 Inch (in)

Power Supply
50 hz

Product Type
air cooled screw chiller

Voltage
415 Volt (v)

Weight
2000 Kilograms (kg)

Color
multi

Cooling Type
air cooled

Width
180 Inch (in)

Length
180 Inch (in)

Nozzle Material
metel

Cooling Coil Material
copper

Water Pump Motor
5 HP

Noise Control
30 db

Compressor
screw

Warranty
1 year

140 TR air cooled centrifugal chiller Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
3 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Standard packaging

Main Export Market(s)
Asia, Western Europe, Middle East, Africa, Australia, Central America, North America, South America, Eastern Europe

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About 140 TR air cooled centrifugal chiller

Technical Specification

Sr. No.	Parameter	Details
1	Model	FMACSC-140TR-R407C
2	Cooling Capacity	140 TR / 492 kW
3	Refrigeration Circuit	2 No
4	Power Supply	400V, 3Ph, 50Hz
5	Connected Load	151.8 kW / 170 A
6	Refrigerant	R407C
7	Refrigerant Control	Thermostatic Expansion Valve
8	Evaporating SST	5C
9	Condensing SDT	48C
10	Ambient Temperature	Max. 48C
11	Working Temperature Range	+7C to +20C
12	Chilled Water Flow	84000 LPH (T = 5C)
13	Condenser Air Flow	56000 CFM
14	Fan Type	Axial Type, Large Blade
15	Fan Quantity	8 Nos
16	Fan Size	25 inches (Suction Type)
17	Fan Power	0.76 kW 8 Nos = 6.12 kW
18	Compressor Type	Semi-Hermetic Screw
19	Compressor Quantity	2 No
20	Compressor Make & Model	Bitzer
21	Compressor Power	158.8 kW / 246 A @ 50 Hz
22	Start Mode	Star-Delta Starter
23	Capacity Control	Step (0,25,50,75,100%)
24	Evaporator Type	Shell & Tube Type
25	Evaporator Shell MOC	Carbon Steel, Powder Coated
26	Evaporator Tube MOC	Inner Grooved Copper Tubes
27	Evaporator Baffle & Header	SS-304, TIG Welded
28	Evaporator Design Pressure	10 Bar
29	Evaporator Test Pressure	15 Bar (Hydrostatic)
30	Evaporator Pipe Connection	3 BSP (Inlet & Outlet)
31	Evaporator Insulation	40 mm PUF, Closed Cell
32	Condenser Type	Air Cooled (Copper Tubes & Aluminum Fins)
33	Condenser Pipe Size	3/8
34	Condenser Support	Galvanized Steel Frame
36	Safety Protections	Inner Thermostat, HP/LP Switch, Overload Relay, Phase Reverse, Flow Switch, Anti-Freeze, Discharge Temp. Protection, Water low levels.
37	Electrical Panel	MCB, Contactor, Overload, Timer, Relays, , Pre-wired, PLC, HMI
38	Dimensions (LWH)	After confirmation we will provide dimension and drawing
