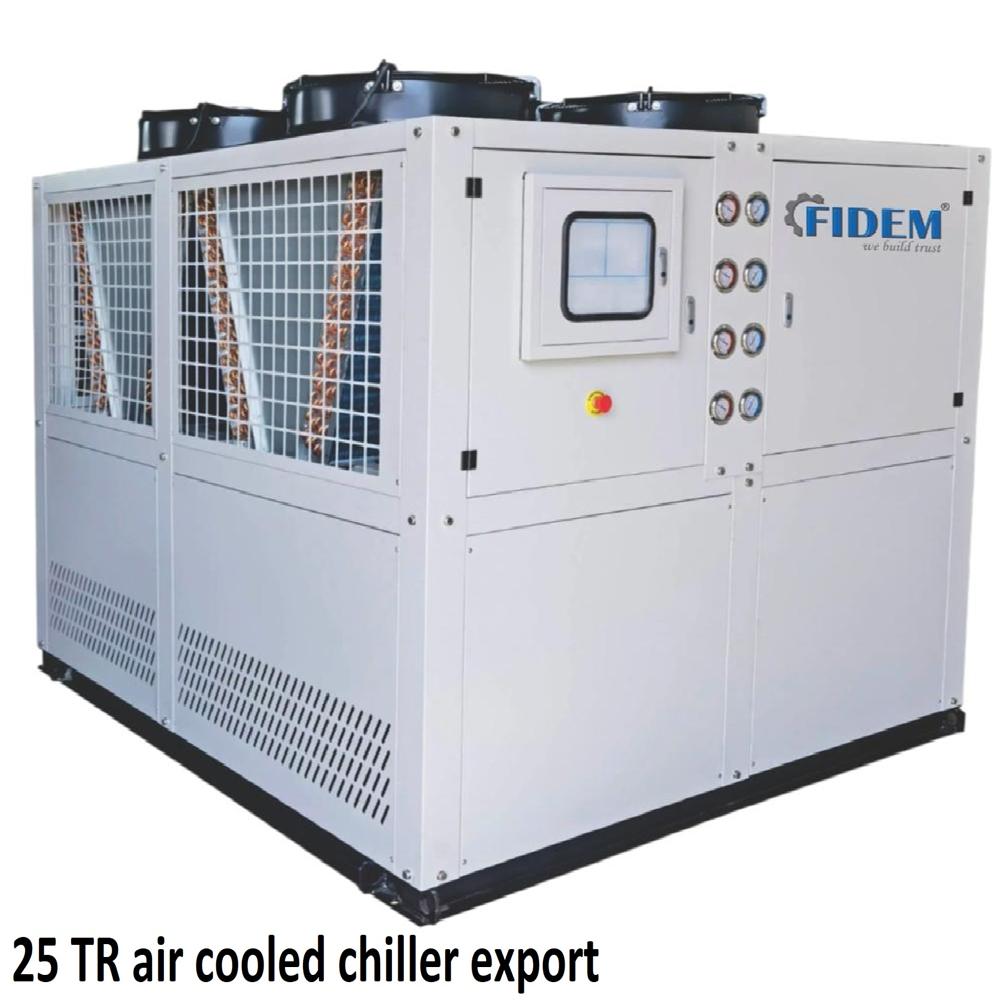

25 TR air cooled chiller export

Name: 25 TR air cooled chiller export
Brand: AQUATECH PLUS PVT. LTD.
Price: 690000.0 INR
Availability: InStock

Price 690000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

25 TR air cooled chiller export Specification

Refrigerating Capacity
25 tr

Application
chilling water

Motor
5 hp

Air Flow
10000 ft3/min (CFM)

Water Flowing Rate
12000 lph

Material
Metal

Condition
New

Usage
chilling water

Type
air cooled chiller

Dimension (L*W*H)
3000x1700x2100 Millimeter (mm)

Size
standard

Height
1200 Millimeter (mm)

Product Type
air cooled chiller

Power Supply
50 hz

Weight
2000 Kilograms (kg)

Voltage
400 Volt (v)

Cooling Type
air cooled chiller

Color
multi

Width
3000 Millimeter (mm)

Nozzle Material
metel

Length
1700 Millimeter (mm)

Cooling Coil Material
copper

Water Pump Motor
5 hp

Noise Control
30 db

Compressor
scroll

Warranty
1 year

25 TR air cooled chiller export Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
3 Units Per Month

Delivery Time
15 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
standard packaging

Main Export Market(s)
Australia, Central America, Asia, Africa, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About 25 TR air cooled chiller export

Technical Specification:

Sr. No.	Parameter	Details
1	Model	FMACS-25TR
2	Cooling Capacity	25 TR / 88 kW
3	Cooling Capacity (Control)	0%, 50%, 100%
4	Refrigeration Circuit	2 Nos
5	Power Supply	400 V, 3 Phase, 50 Hz
6	Total Connected Load	30 kW / 48 A
7	Refrigerant	R410A / R407C (Eco-Friendly)
8	Refrigerant Control	Thermostatic Expansion Valve
9	Evaporating SST	7 C
10	Condensing SDT	54 C
11	Ambient Temperature	Max. 50 C (High-Ambient Compatible)
12	Working Temperature Range	+7 C to +20 C
13	Chilled Water Flow	7500 LPH (T = 10 C)
14	Condenser Air Flow	11,250 CFM
15	Fan Type	Axial Type, Large Blade (Low Noise)
16	Fan Quantity	4 Nos
17	Fan Size	800 mm (Suction Type)
18	Fan Power	0.75 kW 4 Nos = 3 kW
19	Compressor Type	Hermetic Scroll
20	Compressor Quantity	2 Nos
21	Compressor Make & Model	Danfoss
22	Compressor Power	25 kW @ 50 Hz
23	Start Mode	Regular
24	Capacity Control
25	Evaporator Type	BPHE
26	Evaporator MOC	Cu / SS-304
27	Evaporator Tube MOC
28	Evaporator Baffle & Header
29	Evaporator Design Pressure	16 Bar
30	Evaporator Test Pressure	24 Bar (Hydrostatic)
31	Evaporator Pipe Connection	2" BSP (Inlet & Outlet)
32	Evaporator Insulation	40 mm PUF, Closed Cell
33	Condenser Type	Air Cooled (Copper Tubes & Aluminum Fins)
34	Condenser Pipe Size	3/8"
35	Condenser Support	Galvanized Frame
36	Pump	Flow: 20,000 LPH @ 2 Bar, SS-304, 1.2 kW, 1 No
37	Safety Protections	Inner Thermostat, HP/LP Switch, Overload Relay, Phase Reverse, Flow Switch, Anti-Freeze, Discharge Temperature Protection, Water Low Level
38	Circulation Tank	Clients Scope
39	Electrical Panel	MCB, Contactor, Overload, Timer, Relays, Pre-Wired, PLC, HMI
40	Structure MOC	Galvanized with Powder Coating
41	Dimensions (L W H)	3000 1700 2100 mm
42	Running Weight	2100 kg

COMPONENT BRANDS:

Component	Make / Brand
Fixed Speed Compressor	Danfoss
Evaporator	FIDEM
Condenser	FIDEM
Electrical Panel	FIDEM
Flow Switch	Castle
Pressure Switch	Danfoss
Expansion Valve	Danfoss
Filter Drier	DryAll
Solenoid Valve	Danfoss
Electrical Components	Schneider Electric
Gasket (PHE)	FIDEM
