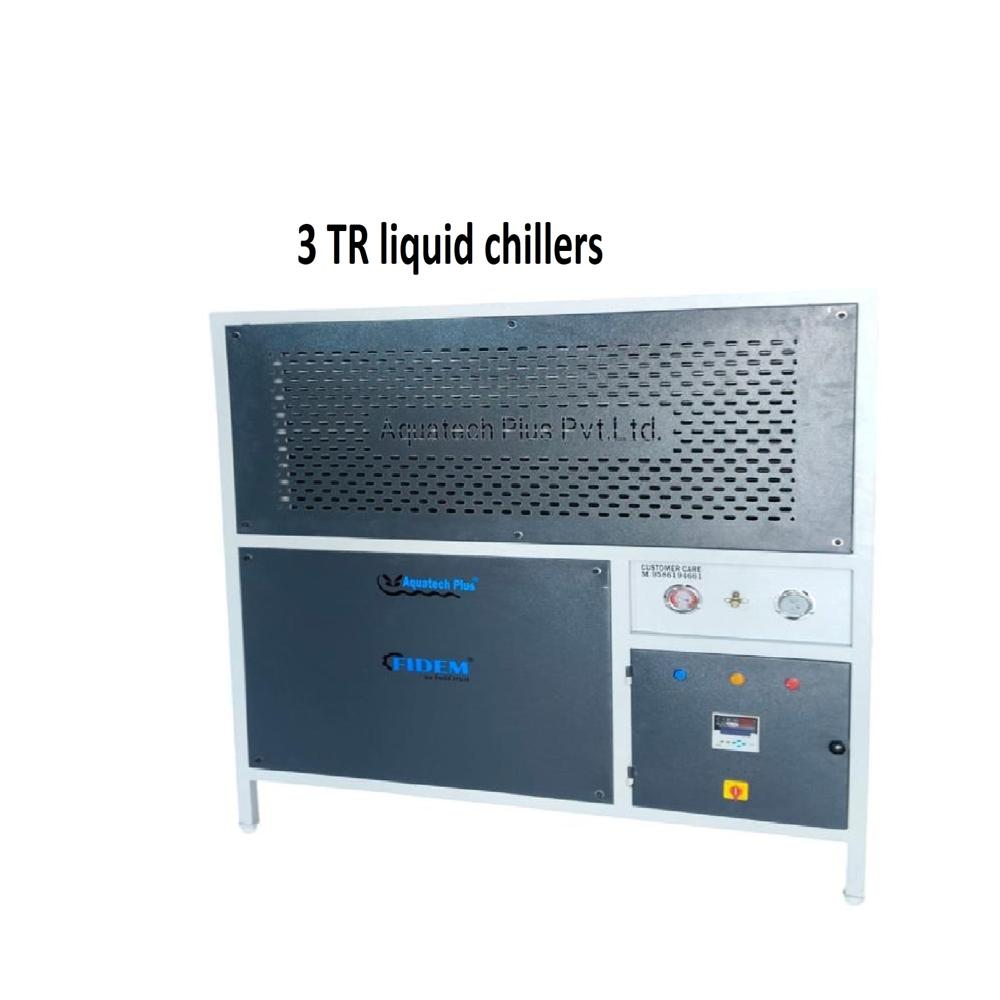

3 TR liquid chillers

Name: 3 TR liquid chillers
Brand: AQUATECH PLUS PVT. LTD.
Price: 90000.0 INR
Availability: InStock

Price 90000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

3 TR liquid chillers Specification

Application
chilling water

Material
Metal

Water Flowing Rate
500 lph

Motor
0.5 hp

Air Flow
1200 ft3/min (CFM)

Refrigerating Capacity
3 tr

Usage
chilling water

Condition
New

Type
air cooled chiller

Dimension (L*W*H)
24x24x48 Inch (in)

Size
standard

Height
24 Inch (in)

Power Supply
50 hz

Product Type
air cooled chiller

Weight
300 Kilograms (kg)

Voltage
400 Volt (v)

Cooling Type
air cooled

Color
multi

Length
24 Inch (in)

Nozzle Material
metel

Width
48 Inch (in)

Cooling Coil Material
copper

Water Pump Motor
0.5 hp

Noise Control
30 db

Compressor
scroll

Warranty
1 year

3 TR liquid chillers Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
5 Units Per Month

Delivery Time
15 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
standard packaging

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About 3 TR liquid chillers

FIDEM 3TRAirCooled Hermetic Chiller

An air-cooled chiller uses ambient air to remove heat from the refrigerant. It does not need a cooling tower, making it simpler to install and maintain compared to water-cooled chillers.

For a 3 TR chiller, its a small-capacity system (10.5 kW) used for light industrial or commercial applications.

Technical Specification:

S.No	Description	Specification
1	System	Air Cooled Reciprocating Chiller
2	Model No.	FMACSR-3TR Chiller
3	Cooling Capacity	10.5 kW / 3 TR @ 5C Evap. & 45C Cond.
4	Compressor Type	Reciprocating (Emerson / Danfoss)
5	Evaporator Type	Cooling Coil, 100% Copper
6	Condenser Type	Air Cooled, Finned Tube Type
7	Refrigerant	R-407C
8	Flow Rate	4000 LPH (As per requirement control)
9	Chilled Water Inlet Temp (Max)	55C
10	Chilled Water Outlet Temp (Max)	3C
11	Cooling Fan Type	1 Nos Axial Flow Fan (Low Noise)
12	Power Consumption	3 kW
13	Power Supply	415 V 10%, 50 Hz 5%
14	IP Protection	IP54
15	Control	Fully Automatic
16	Safety Devices	LP/HP Switches, Digital Temp Controller, Flow Failure Trip
17	Chilled Water Pump	1 HP, 4000 LPH @ 2 Bar
18	Chilled Water Tank	SS304, Fully Insulated, 1.2 mm Thickness
19	Tank Volume	200 Liters
20	Connection Size	1 3 Nos
21	Inlet / Overflow Connection	1 1 Nos / 1 Nos
22	Flow Meter	1 Nos
23	Water Level	1 Nos
