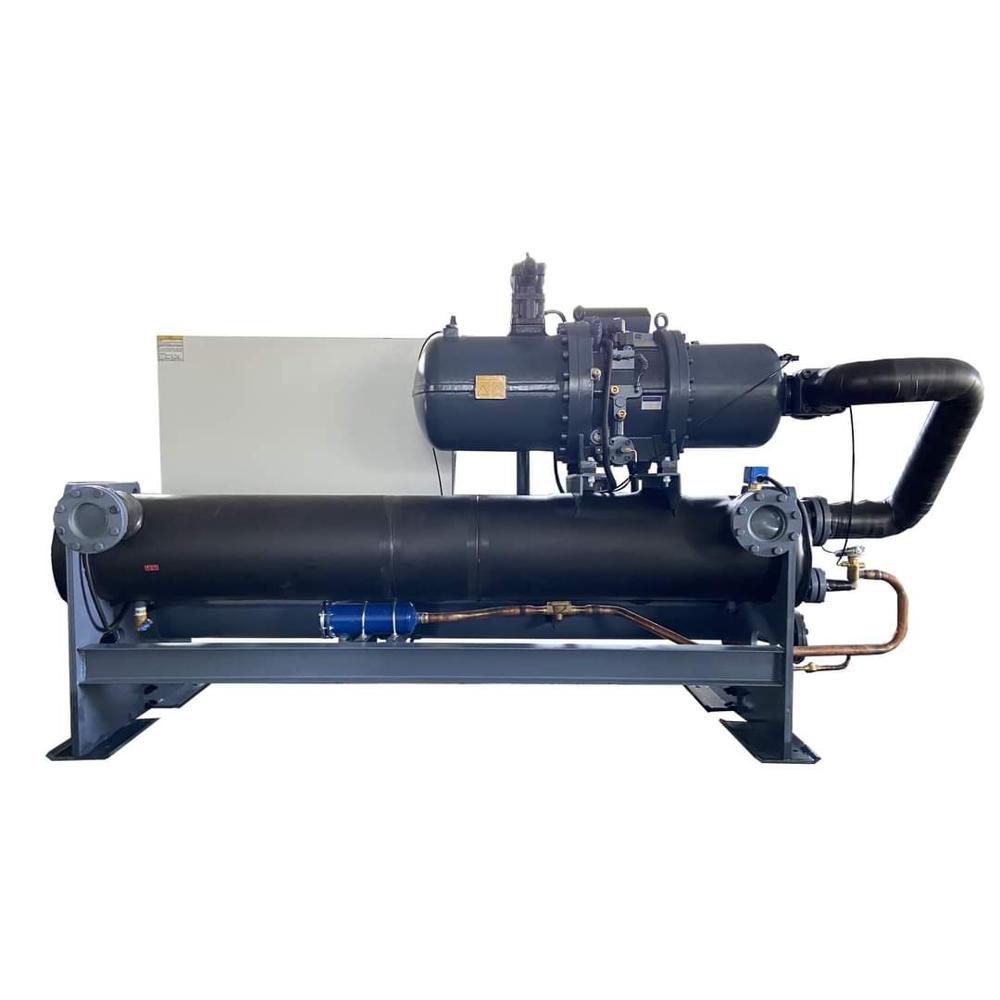

30 TR Best water cooled chiller

Sr.No.

Parameter

Details

1

Model

FMACS-30TR-407

2

Cooling Capacity

30 TR/105.5 kw

3

Refrigeration circuit

2

4

Power Supply

400V-50Hz

5

Connecting load

15 KW / 33.52A

6

Refrigerant

R410A

7

Refrigerant Control

Thermostatic Expansion

8

Evaporating SST

2C

9

Condensing SDT

32C

10

Ambient Temp

45C

11

 Working Temperature Range

+5 TO +20

12

Chilled Flow Of Water

4500 LPH , T 20C

18

Compressor Types

Scorll

19

Compressor Qty

2

20

Compressor power

13.9 KW / 33.52A

21

Start mode

Regular

22

Capacity control

0,50,100 %

23

Evaporator Types

Shell and tube

24

Evaporator pipe connection

3

25

Evaporator Shell MOC

MS. Powder Coted

26

Evaporator MOC

Copper and SS-304

27

Condenser  types

Shell and tube

29

Condenser Supporter

Galvanize

30

Pump

SS-304/1.5 HP

31

Safety Protection

Inner Thermostat for compressor motor, unit overload relay, high and low pressure switch , reverse phase protection relay, discharge gas thermostat, flow switch , Antic Freeze protection

32

Electric control panel

Controller, protection relay, contactor, MCB, preventer, timer.

33

Dimension(length/width/height)

After confirmation we will provide dimension and drawing -

34

Running weight

-
