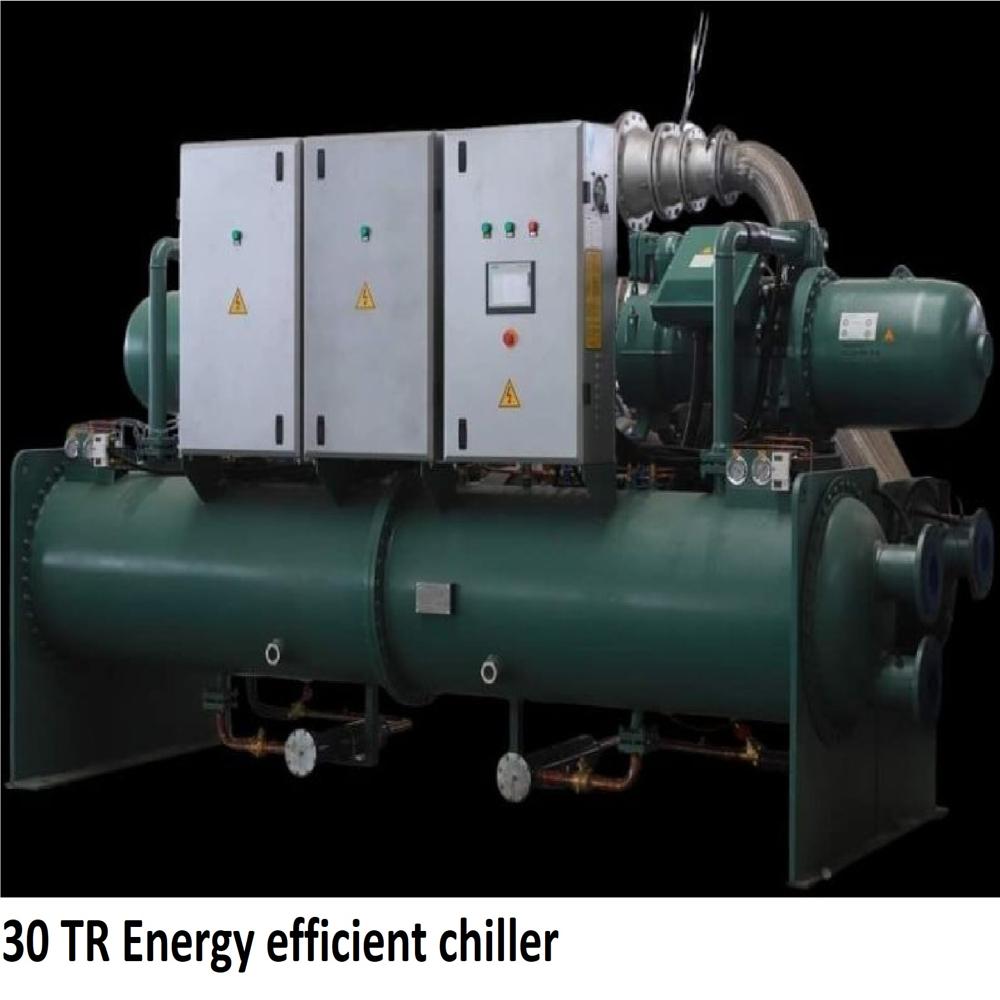

30 TR Energy efficient chiller.

Name: 30 TR Energy efficient chiller.
Brand: AQUATECH PLUS PVT. LTD.
Price: 1450000.0 INR
Availability: InStock

Price 1450000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

30 TR Energy efficient chiller. Specification

Motor
5 HP

Water Flowing Rate
6000 LPH

Material
Metal

Air Flow
NA ft3/min (CFM)

Application
chilling water

Refrigerating Capacity
30 TR

Condition
New

Usage
chilling water

Type
water cooled glycol chiller

Size
standard

Dimension (L*W*H)
80x50x60 Inch (in)

Height
50 Inch (in)

Product Type
water cooled glycol chiller

Power Supply
50 hz

Weight
1000 Kilograms (kg)

Voltage
415 Volt (v)

Color
multi

Cooling Type
water cooled glycol

Length
80 Inch (in)

Nozzle Material
metel

Width
60 Inch (in)

Cooling Coil Material
copper

Water Pump Motor
5 HP

Noise Control
30 db

Compressor
screw

Warranty
1 year

30 TR Energy efficient chiller. Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
3 Units Per Month

Delivery Time
15 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Standard packaging

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About 30 TR Energy efficient chiller.

TECHNICAL SPECIFICATION GLYCOL CHILLER (30 TR)

Sr. No.	Parameter	Specification
1	Model	FMWCSGLY-30-407
2	Cooling Capacity	102 kW / 30 TR
3	Power Supply	400 V, 50 Hz, 3 Phase
4	Refrigerant	R-410A
5	Refrigerant Control	Thermostatic Expansion Valve
6	Evaporating SST	7 C
7	Condensing SDT	38 C
8	Glycol Working Temperature Range	10 C to +10 C (Set Point 3 C)
9	Glycol Chilled Flow	3000 LPH
10	Milk Flow Rate	2000 LPH
11	Milk Outlet Temperature	2 C
12	Condenser Water Flow	15 m/hr
13	Compressor Type	Scroll
14	Compressor Power	32 kW
15	Starting Mode	StarDelta
16	Capacity Control
17	Evaporator Type	BPHE
18	Evaporator Pipe Connection	2
19	Evaporator MOC	SS + Copper
20	Condenser Type	Shell & Tube
21	Condenser Pipe Connection	2
22	Condenser Shell MOC	MS, Powder Coated
23	Condenser Tube Material	Copper (IGT)
24	Safety Protections	Compressor motor thermostat, overload relay, HP/LP switch, reverse phase relay, discharge gas thermostat, flow switch, anti-freeze protection
25	Electrical Control Panel	PLC, HMI, protection relay, contactor, MCB, preventer, pressure transmitter, timer
26	Overall Dimensions (LWH)	2000 1200 1600 mm
27	Running Weight	1100 kg

GLYCOL TANK COMPONENT SPECIFICATION

Parameter	Specification
Volume	300 Litres
Material	SS-304
Thickness	2 mm
Insulation	25 mm PUF
Fittings	Inlet, outlet, drain, level gauge, overflow vent
Mounting	Floor Mounted

GASKETED PLATE HEAT EXCHANGER (PHE)

Duty Stages

Stage-1: Pre-cooling using chilled water
Stage-2: Final chilling using glycol (2 C)

Parameter	Specification
Type	Gasketed Plate Heat Exchanger
Plate Material	SS-316
Gasket Material	EPDM / NBR
Surface Area	8 m
Flow Capacity	2000 LPH
Temperature Drop	40 C 2 C
Ports	Dairy Type Fittings

GLYCOL CIRCULATION PUMP

Parameter	Specification
Flow Rate	4.0 m/hr
Head	2.5 bar
Pump Type	Centrifugal
Pump MOC	SS-304
Motor Power	2.2 kW

MAJOR BOUGHT-OUT & IN-HOUSE COMPONENTS

Sr. No.	Component	Make
1	Compressor	Bitzer
2	Evaporator	Fidem
3	Condenser	Fidem
4	Electrical Panel	Fidem
5	Flow Switch	Fidem
6	Pressure Switch	Castle
7	Expansion Valve	Danfoss
8	Filter Drier	Danfoss
9	Solenoid Valve	Dryall
10	Electronic Controls	Danfoss
11	Glycol Tank	Schneider
12	BPHE	Fidem
13	Glycol Circulation Pump	Shimge
