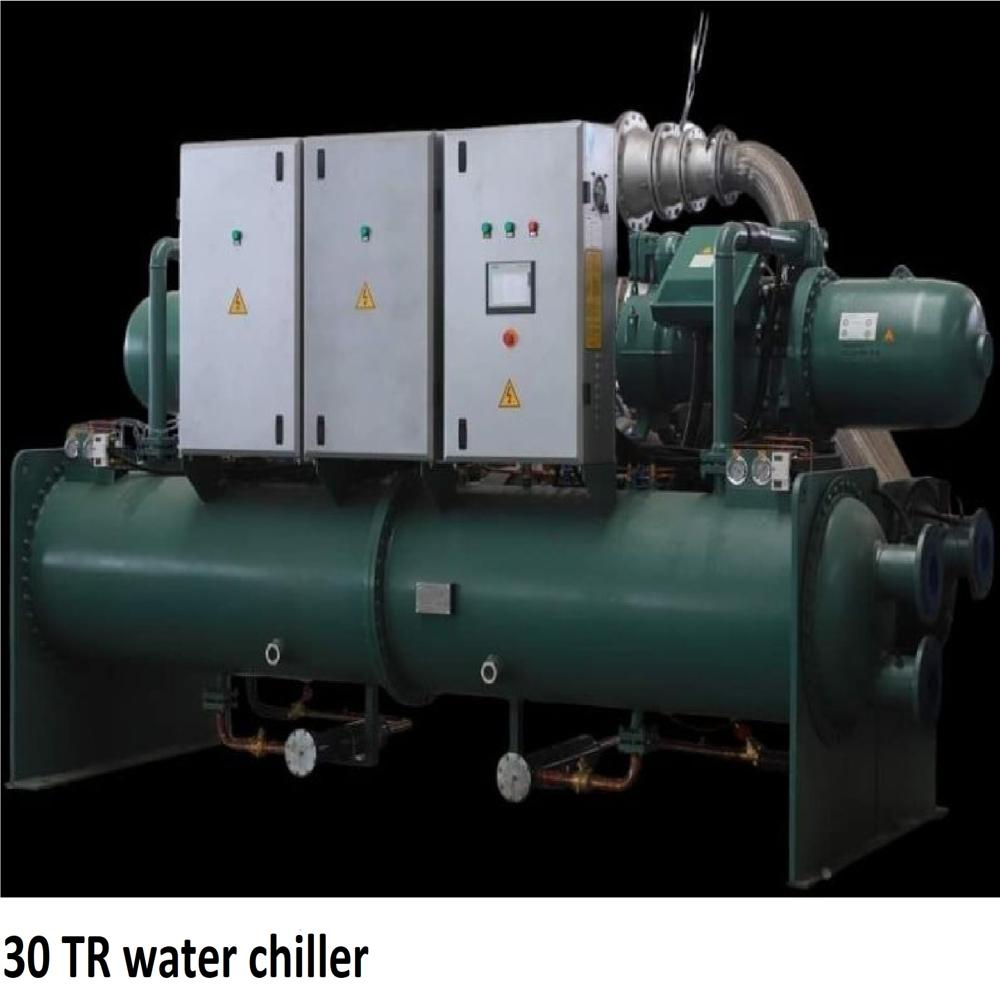

Send Inquiry30 TR water chiller
Price 1450000.0 INR/ Unit
MOQ : 1 Unit
30 TR water chiller Specification
- Application
- chilling water
- Refrigerating Capacity
- 30 TR
- Air Flow
- NA ft3/min (CFM)
- Water Flowing Rate
- 6000 LPH
- Motor
- 5 HP
- Material
- Metal
- Usage
- chilling water
- Condition
- New
- Type
- water cooled glycol chiller
- Size
- standard
- Dimension (L*W*H)
- 80x50x60 Inch (in)
- Height
- 50 Inch (in)
- Product Type
- water cooled glycol chiller
- Power Supply
- 50 hz
- Voltage
- 415 Volt (v)
- Weight
- 1000 Kilograms (kg)
- Color
- multi
- Cooling Type
- water cooled glycol
- Length
- 80 Inch (in)
- Nozzle Material
- metel
- Width
- 60 Inch (in)
- Cooling Coil Material
- copper
- Water Pump Motor
- 5 HP
- Noise Control
- 30 db
- Compressor
- screw
- Warranty
- 1 year
30 TR water chiller Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Mundra
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 3 Units Per Month
- Delivery Time
- 15 Days
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- Standard packaging
- Main Export Market(s)
- North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America
- Main Domestic Market
- All India
- Certifications
- ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC
About 30 TR water chiller
TECHNICAL SPECIFICATION GLYCOL CHILLER (30 TR)
| Sr. No. | Parameter | Specification |
|---|---|---|
| 1 | Model | FMWCSGLY-30-407 |
| 2 | Cooling Capacity | 102 kW / 30 TR |
| 3 | Power Supply | 400 V, 50 Hz, 3 Phase |
| 4 | Refrigerant | R-410A |
| 5 | Refrigerant Control | Thermostatic Expansion Valve |
| 6 | Evaporating SST | 7 C |
| 7 | Condensing SDT | 38 C |
| 8 | Glycol Working Temperature Range | 10 C to +10 C (Set Point 3 C) |
| 9 | Glycol Chilled Flow | 3000 LPH |
| 10 | Milk Flow Rate | 2000 LPH |
| 11 | Milk Outlet Temperature | 2 C |
| 12 | Condenser Water Flow | 15 m/hr |
| 13 | Compressor Type | Scroll |
| 14 | Compressor Power | 32 kW |
| 15 | Starting Mode | StarDelta |
| 16 | Capacity Control | |
| 17 | Evaporator Type | BPHE |
| 18 | Evaporator Pipe Connection | 2 |
| 19 | Evaporator MOC | SS + Copper |
| 20 | Condenser Type | Shell & Tube |
| 21 | Condenser Pipe Connection | 2 |
| 22 | Condenser Shell MOC | MS, Powder Coated |
| 23 | Condenser Tube Material | Copper (IGT) |
| 24 | Safety Protections | Compressor motor thermostat, overload relay, HP/LP switch, reverse phase relay, discharge gas thermostat, flow switch, anti-freeze protection |
| 25 | Electrical Control Panel | PLC, HMI, protection relay, contactor, MCB, preventer, pressure transmitter, timer |
| 26 | Overall Dimensions (LWH) | 2000 1200 1600 mm |
| 27 | Running Weight | 1100 kg |
GLYCOL TANK COMPONENT SPECIFICATION
| Parameter | Specification |
|---|---|
| Volume | 300 Litres |
| Material | SS-304 |
| Thickness | 2 mm |
| Insulation | 25 mm PUF |
| Fittings | Inlet, outlet, drain, level gauge, overflow vent |
| Mounting | Floor Mounted |
GASKETED PLATE HEAT EXCHANGER (PHE)
Duty Stages
-
Stage-1: Pre-cooling using chilled water
-
Stage-2: Final chilling using glycol (2 C)
| Parameter | Specification |
|---|---|
| Type | Gasketed Plate Heat Exchanger |
| Plate Material | SS-316 |
| Gasket Material | EPDM / NBR |
| Surface Area | 8 m |
| Flow Capacity | 2000 LPH |
| Temperature Drop | 40 C 2 C |
| Ports | Dairy Type Fittings |
GLYCOL CIRCULATION PUMP
| Parameter | Specification |
|---|---|
| Flow Rate | 4.0 m/hr |
| Head | 2.5 bar |
| Pump Type | Centrifugal |
| Pump MOC | SS-304 |
| Motor Power | 2.2 kW |
MAJOR BOUGHT-OUT & IN-HOUSE COMPONENTS
| Sr. No. | Component | Make |
|---|---|---|
| 1 | Compressor | Bitzer |
| 2 | Evaporator | Fidem |
| 3 | Condenser | Fidem |
| 4 | Electrical Panel | Fidem |
| 5 | Flow Switch | Fidem |
| 6 | Pressure Switch | Castle |
| 7 | Expansion Valve | Danfoss |
| 8 | Filter Drier | Danfoss |
| 9 | Solenoid Valve | Dryall |
| 10 | Electronic Controls | Danfoss |
| 11 | Glycol Tank | Schneider |
| 12 | BPHE | Fidem |
| 13 | Glycol Circulation Pump | Shimge |
