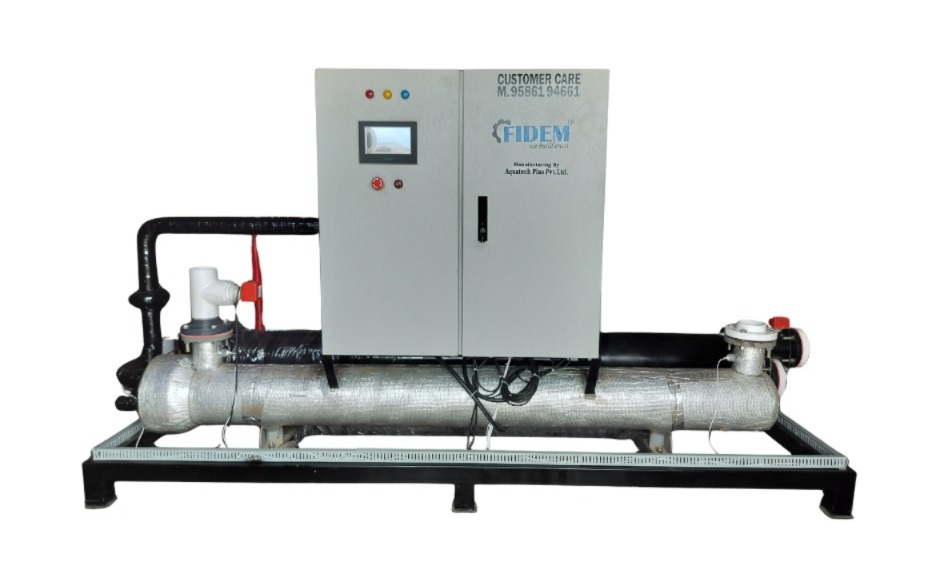

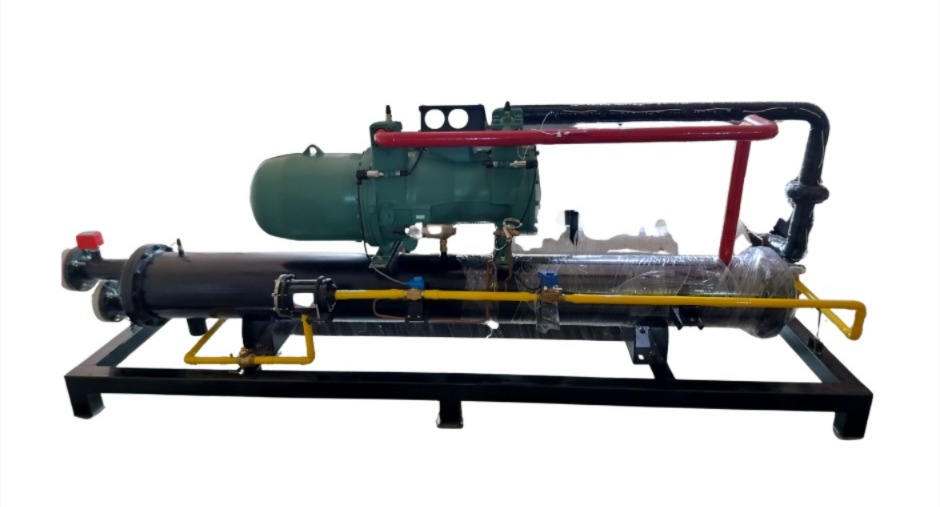

50 ton water cooled chiller

Name: 50 ton water cooled chiller
Brand: AQUATECH PLUS PVT. LTD.
Price: 1400000.0 INR
Availability: InStock

Price 1400000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

50 ton water cooled chiller Specification

Motor
3-phase induction motor with overload protection

Application
Industrial process cooling, HVAC, plastic, pharma, food, chemical industries

Refrigerating Capacity
50 TR ( 176 kW)

Water Flowing Rate
Approx. 25 m /hr

Material
Metal

Condition
New

Usage
Suitable for industrial process cooling applications in plastic, pharma, beverage, dairy, and chemical industries.

Type
Water-Cooled Shell & Tube Chiller

Dimension (L*W*H)
Approx. 3200 1400 1800 mm (varies by model) Millimeter (mm)

Product Type
Industrial water-cooled chiller

Power Supply
3 Phase, 415V, 50Hz (default)

Voltage
380 440 V Volt (v)

Weight
1500 1800 kg (varies by model) Kilograms (kg)

Color
Sky Blue & White (Powder Coated)

Cooling Type
Water cooled (with cooling tower)

Cooling Coil Material
Copper Tubes with Aluminum Fins (High Thermal Conductivity Design)

Water Pump Motor
Centrifugal Monoblock

Noise Control
75 dB(A db

Compressor
Semi-hermetic screw / scroll type (energy efficient)

Warranty
1 year standard (extendable)

50 ton water cooled chiller Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mundra

Payment Terms
Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Supply Ability
3 Pieces Per Month

Delivery Time
20 Days

Sample Available
No

Packaging Details
STANDARD

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About 50 ton water cooled chiller

50 TR Water-Cooled Chiller:-

Capacity: 50 TR ( 176 kW cooling capacity)
Type: Water-cooled, industrial / process chiller
Brand: Aquatech Plus Pvt Ltd.

Working Principle:

A water-cooled chiller removes heat from process or air-conditioning water and rejects it to a separate cooling tower through condenser water.
It includes four main components: compressor, evaporator, condenser, and expansion valve.

Technical Highlights :

Parameter	Specification
Cooling Capacity	50 TR ( 176 kW)
Compressor Type	Semi-hermetic screw or scroll (energy-efficient)
Refrigerant	R-407C / R-134a / R-410A (Eco-friendly, low GWP)
Condenser Type	Shell & tube water-cooled
Evaporator Type	Shell & tube / brazed plate heat exchanger
Power Supply	415 V / 50 Hz / 3 Phase
Chilled Water Temp.	Outlet = 7 C (1 C)
Condenser Water Temp.	Inlet = 30 C 35 C
Water Flow Rate	Approx 25 m/hr (depends on delta T)
Noise Level	< 70 dB (low-noise design)
Controls	Microprocessor / PLC-based panel
Structure	Heavy-duty powder-coated frame with vibration isolators

Key Features:

High energy efficiency ratio (EER)
Compact design with minimal floor space
Long-life corrosion-resistant condenser tubes
Automatic temperature & flow control
Low maintenance & continuous duty design
Compatible with BMS / remote monitoring systems
