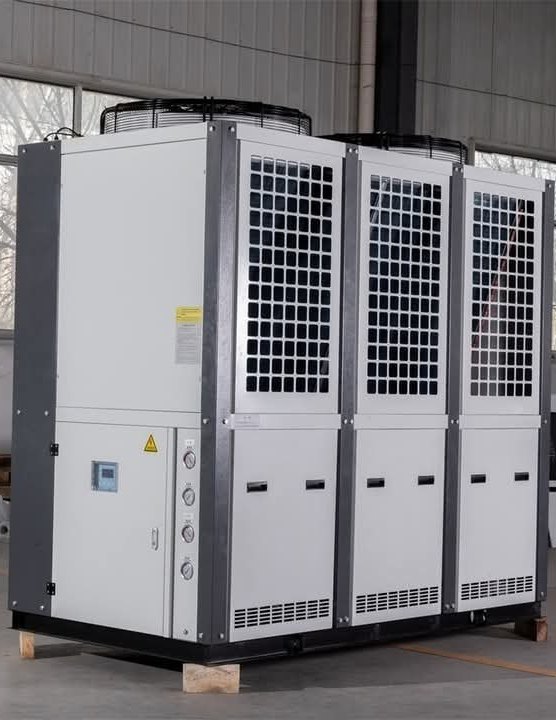

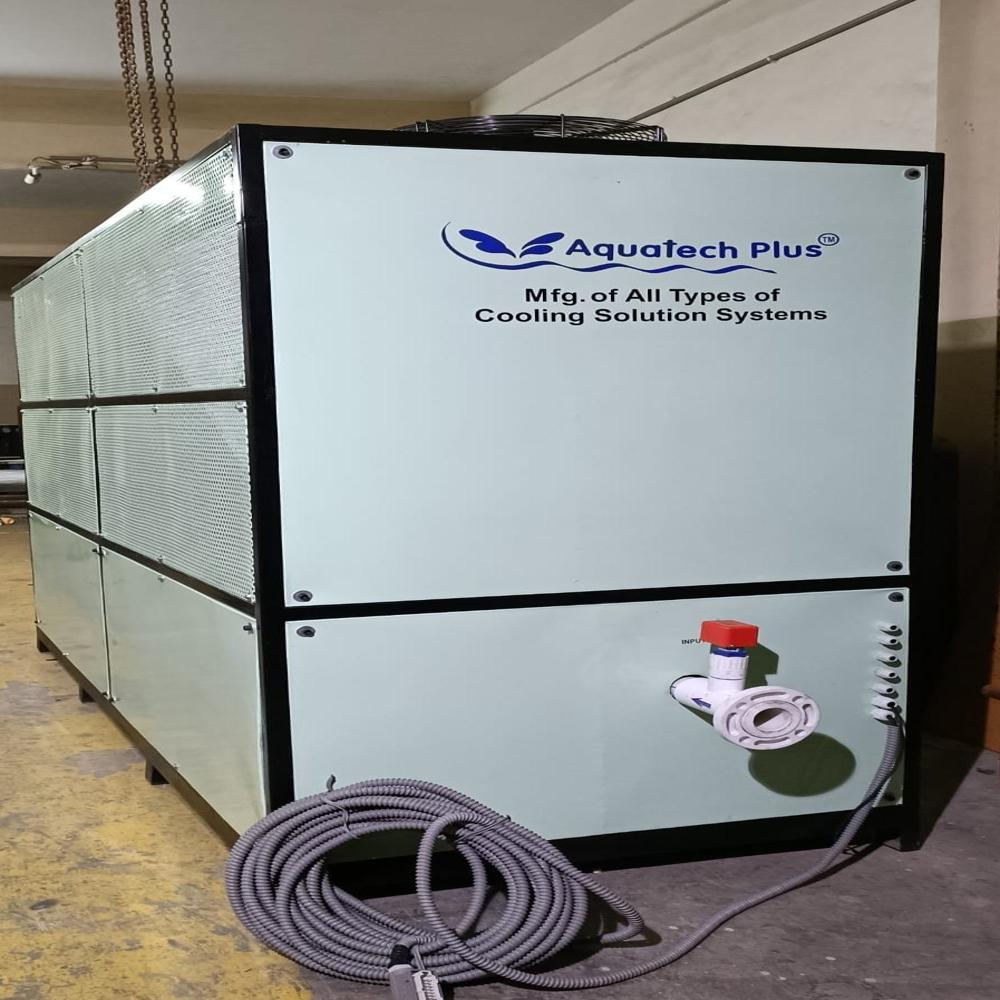

80 TR Air Cooled Chiller

Name: 80 TR Air Cooled Chiller
Brand: AQUATECH PLUS PVT. LTD.
Price: 2450000.0 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Unit

80 TR Air Cooled Chiller Specification

Refrigerating Capacity
80 TR (~280 kW)

Application
HVAC, Industrial Cooling, Process Cooling, Commercial Buildings

Water Flowing Rate
~240 260 LPM

Motor
High efficiency induction motor

Air Flow
30,000 40,000 CFM ft3/min (CFM)

Material
Metal

Condition
New

Usage
Industrial Cooling, HVAC Systems, Process Cooling, Commercial Buildings, Manufacturing Plants

Type
Air Cooled, Packaged Chiller

Dimension (L*W*H)
Approx. 4000 2200 2200 mm Millimeter (mm)

Size
Large Industrial Chiller (80 TR Capacity)

Height
~2200 mm (2.2 m) Meter (m)

Product Type
Air Cooled Water Chiller

Power Supply
415 V / 50 Hz / 3 Phase

Weight
~3,000 3,500 kg Kilograms (kg)

Voltage
415 Volt (v)

Color
Custom Available

Cooling Type
Air Cooled

Nozzle Material
Brass / SS

Width
~2200 mm (2.2 m) Meter (m)

Length
~4000 mm (4.0 m) Meter (m)

Cooling Coil Material
Copper Tubes with Aluminium Fins

Water Pump Motor
5 7.5 HP (depending on head requirement)

Noise Control
<75 dB (at 1 m distance) db

Compressor
multiple scroll compressors

Warranty
1 Year (standard)

80 TR Air Cooled Chiller Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)

Supply Ability
3 Units Per Month

Delivery Time
20 Days

Sample Available
No

Packaging Details
STANDARD

Main Export Market(s)
Asia, North America, South America, Eastern Europe, Western Europe, Australia, Central America, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

80 TR Air Cooled Chiller About

The 80 TR chiller from Aquatech Plus Pvt. Ltd. is a robust, industrial-grade cooling system engineered for a wide range of applications, including centralised air conditioning, process cooling, and HVAC systems. Built for reliable 24/7 performance, this unit delivers a powerful cooling capacity of 80 Tons (281 kW), making it the perfect solution for demanding commercial and industrial environments.

Technical Specification:

Sr. No.	Parameter	Details
1	Model	FMACSC-80TR-R407C
2	Cooling Capacity	80 TR / 280 kW
3	Refrigeration Circuit	1 No
4	Power Supply	400V, 3Ph, 50Hz
5	Connected Load	70.25 kW /114.8A
6	Refrigerant	R407C
7	Refrigerant Control	Thermostatic Expansion Valve
8	Evaporating SST	7C
9	Condensing SDT	50C
10	Ambient Temperature	45C
11	Working Temperature Range	+10C to +20C
12	Chilled Water Flow	6000 LPH (T = 35C)
13	Condenser Air Flow	30720 CFM
14	Fan Type	Axial Type, Large Blade
15	Fan Quantity	4 Nos
16	Fan Size	28 inches (Suction Type)
17	Fan Power	0.65kW 4 Nos = 2.6 kW
18	Compressor Type	Semi-Hermetic Screw
19	Compressor Quantity	1 No
20	Compressor Make & Model	Bitzer
21	Compressor Power	63.9 kW / 105.4 A @ 50 Hz

High-Efficiency Industrial Cooling Solution

Engineered for demanding environments, the 80 TR Air Cooled Chiller efficiently manages large cooling loads. Its advanced scroll compressors and high water pump output (57.5 HP) ensure optimal thermal regulation across industrial and commercial spaces. This makes it a top choice for process cooling, manufacturing plants, and HVAC installations where reliability is paramount.

Durable and Customizable Construction

Fabricated with robust metal housing and equipped with copper tubes and aluminium fins, the chiller promises long-term durability and resistance to corrosion. The use of high-quality brass or stainless steel for nozzles assures consistent water delivery, while customizable color options allow adaptation to corporate branding or specific installation requirements.

Quiet Operation and Reliable Performance

Operating at less than 75 dB, this chiller minimizes noise impact, making it suitable for noise-sensitive areas. Its design prioritizes performance stability, delivering consistent cooling capabilities with an energy-efficient induction motor, optimal for continuous operation in both commercial and industrial settings.

FAQs of 80 TR Air Cooled Chiller:

Q: How does the 80 TR Air Cooled Chiller benefit industrial and commercial operations?

A: This chiller provides robust, efficient cooling for large-scale HVAC systems, process cooling, and manufacturing plants. Its high thermal output and reliable components ensure stable operation, reducing downtime and maintaining desired ambient temperatures, ultimately supporting productivity and equipment longevity.

Q: What types of applications are suitable for this air cooled chiller?

A: The unit is ideal for industrial cooling, commercial buildings, HVAC systems, process cooling lines, and manufacturing plants. Thanks to its substantial capacity and durable build, it excels in environments with demanding continuous-cooling needs.

Q: When is installation of the chiller recommended in a facility?

A: Installing the 80 TR Air Cooled Chiller is recommended when there is a need for reliable, high-capacity coolingsuch as during facility upgrades, expansions, or when transitioning to packaged, energy-efficient systems. Early integration during project planning ensures optimal configuration and utility connections.

Q: Where can this chiller be installed, and what space is required?

A: This model is suitable for outdoor or dedicated mechanical spaces with adequate ventilation. The approximate dimensions are 4000 mm (L) x 2200 mm (W) x 2200 mm (H), so ensure sufficient clearance for installation, operation, and maintenance.

Q: What is the cooling process of this chiller system?

A: It operates by drawing ambient air through aluminium finned copper coils, extracting heat from the water coolant via multiple scroll compressors, and expelling warmed air. The process delivers chilled water through durable brass or stainless steel nozzles, maintaining a stable water flow rate for industrial cooling needs.

Q: How does the noise control feature enhance the user experience?

A: The chiller runs at less than 75 dB (at 1 m distance), ensuring minimal noise pollution. This makes it suitable for locations where sound levels are a concern, such as commercial buildings or near occupied workspaces.

Q: What warranty and support services are offered with the air cooled chiller?

A: A standard one-year warranty covers manufacturing defects and operational issues. Additionally, comprehensive after-sales servicesincluding installation, maintenance, and technical supportare available throughout India, ensuring uninterrupted performance.
