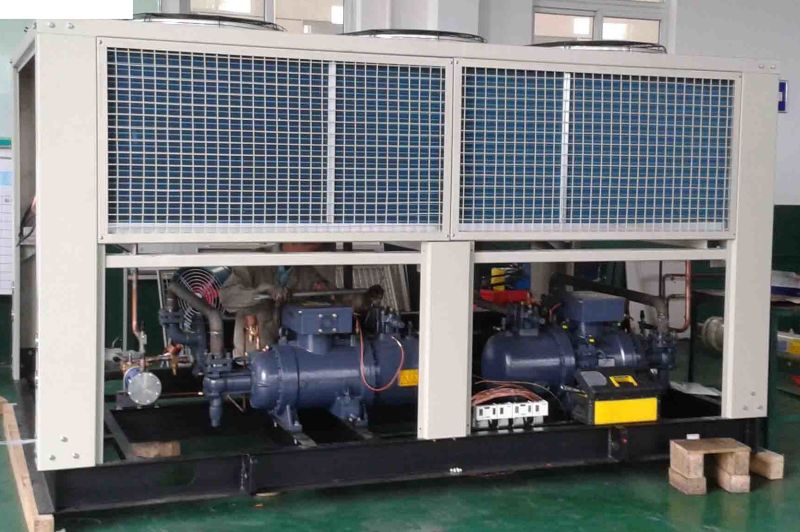

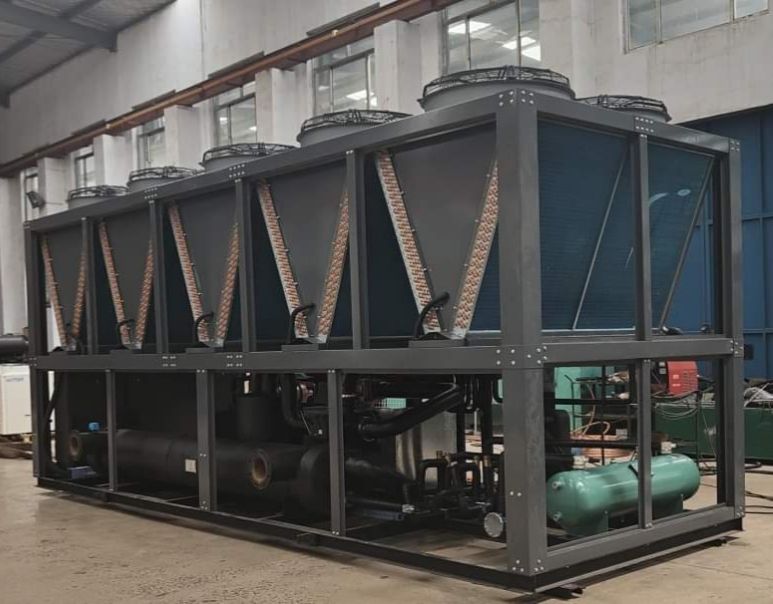

80 TR Air Cooled Screw Chiller

Sr. No.

Parameter

Details

1

Model

FMACSC-80TR-R407C

2

Cooling Capacity

80 TR / 280 kW

3

Refrigeration Circuit

1 No

4

Power Supply

400V, 3Ph, 50Hz

5

Connected Load

 70.25 kW /114.8A

6

Refrigerant

R407C

7

Refrigerant Control

Thermostatic Expansion Valve

8

Evaporating SST

7C

9

Condensing SDT

50C

10

Ambient Temperature

45C

11

Working Temperature Range

+10C to +20C

12

Chilled Water Flow

6000 LPH (T = 35C)

13

Condenser Air Flow

30720 CFM

14

Fan Type

Axial Type, Large Blade

15

Fan Quantity

 4 Nos

16

Fan Size

 28 inches (Suction Type)

17

Fan Power

 0.65kW 4 Nos = 2.6 kW

18

Compressor Type

Semi-Hermetic Screw

19

Compressor Quantity

1 No

20

Compressor Make & Model

Bitzer

21

Compressor Power

 63.9 kW / 105.4 A @ 50 Hz

22

Start Mode

Star-Delta Starter

23

Capacity Control

Step (0,25,50,75,100%)

24

Evaporator Type

Shell & Tube Type

25

Evaporator Shell MOC

Carbon Steel, Powder Coated

26

Evaporator Tube MOC

Inner Grooved Copper Tubes

27

Evaporator Baffle & Header

SS-304, TIG Welded

28

Evaporator Design Pressure

10 Bar

29

Evaporator Test Pressure

15 Bar (Hydrostatic)

30

Evaporator Pipe Connection

3 BSP (Inlet & Outlet)

31

Evaporator Insulation

40 mm PUF, Closed Cell

32

Condenser Type

Air Cooled (Copper Tubes & Aluminum Fins)

33

Pump power

 3.75 kw/5HP/5.2A/50000LPH

34

Pump head(Lift)

 2.33 KG

35

Condenser Pipe Size

3/8

36

Condenser Support

Galvanized Steel Frame

37

Safety Protections

Inner Thermostat, HP/LP Switch, Overload Relay, Phase Reverse, Flow Switch, Anti-Freeze, Discharge Temp. Protection, Water low levels.

38

Electrical Panel

MCB, Contactor, Overload, Timer, Relays, Pre-wired, PLC, HMI

39

Dimensions (LWH)

After confirmation, we will provide the dimensions and drawing
