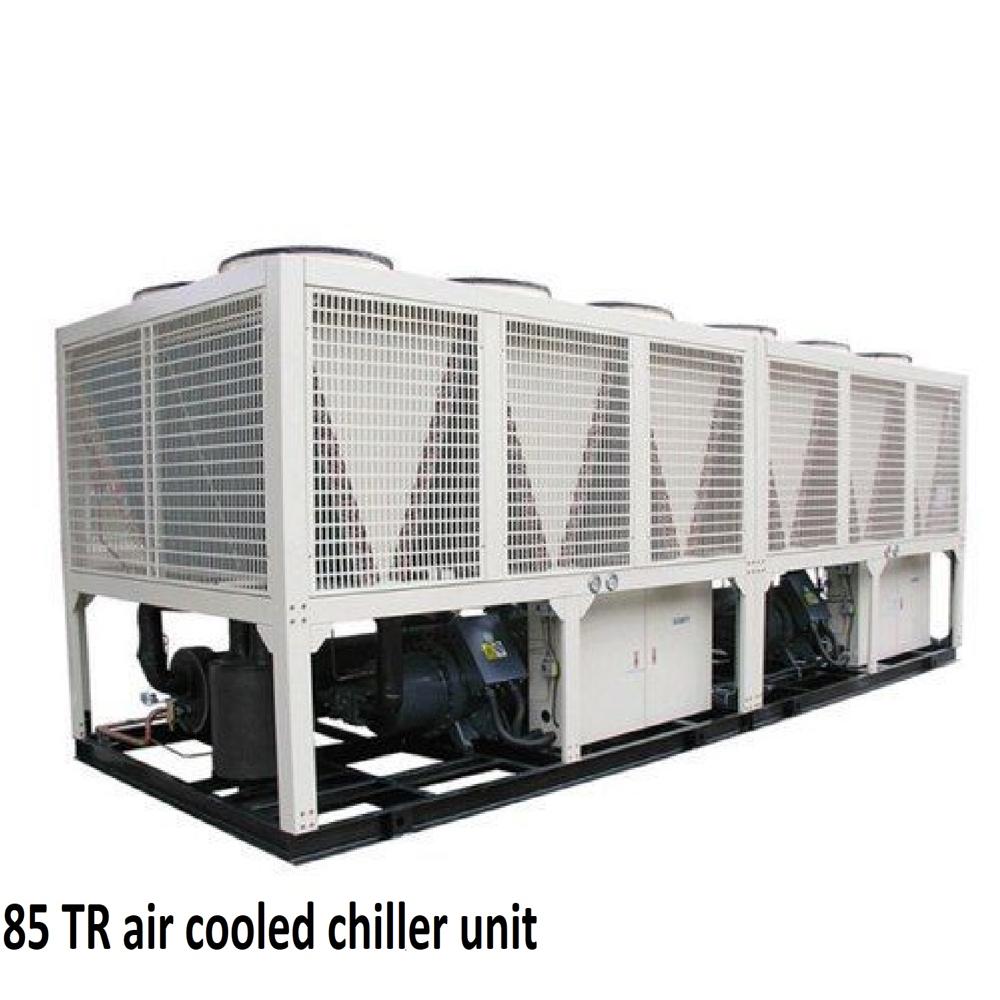

85 TR air cooled chiller unit

Sr. No.

Parameter

Details

1

Model

FMACSC-85TR-R407C

2

Cooling Capacity

85 TR / 302 kW

3

Refrigeration Circuit

1 No

4

Power Supply

400V, 3Ph, 50Hz

5

Connected Load

73.0 kW / 122 A

6

Refrigerant

R407C

7

Refrigerant Control

Thermostatic Expansion Valve

8

Evaporating SST

7C

9

Condensing SDT

40C

10

Ambient Temperature

Max. 48C

11

Working Temperature Range

+7C to +20C

12

Chilled Water Flow

50000 LPH (T = 5C)

13

Condenser Air Flow

70,000 CFM

14

Fan Type

Axial Type, Large Blade

15

Fan Quantity

4 Nos

16

Fan Size

630 mm (Suction Type)

17

Fan Power

1.5 kW 4 Nos = 6.0 kW

18

Compressor Type

Semi-Hermetic Screw

19

Compressor Quantity

1 No

20

Compressor Make & Model

Bitzer

21

Compressor Power

67.0 kW / 102 A @ 50 Hz

22

Start Mode

Star-Delta Starter

23

Capacity Control

Step (0,25,50,75,100%)

24

Evaporator Type

Shell & Tube Type

25

Evaporator Shell MOC

Carbon Steel, Powder Coated

26

Evaporator Tube MOC

Inner Grooved Copper Tubes

27

Evaporator Baffle & Header

SS-304, TIG Welded

28

Evaporator Design Pressure

10 Bar

29

Evaporator Test Pressure

15 Bar (Hydrostatic)

30

Evaporator Pipe Connection

3 BSP (Inlet & Outlet)

31

Evaporator Insulation

40 mm PUF, Closed Cell

32

Condenser Type

Air Cooled (Copper Tubes & Aluminum Fins)

33

Condenser Pipe Size

3/8

34

Condenser Support

Galvanized Steel Frame

35

Pump

SS-304, (5.5 kW), -2 Nos (1W + 1S)

36

Safety Protections

Inner Thermostat, HP/LP Switch, Overload Relay, Phase Reverse, Flow Switch, Anti-Freeze, Discharge Temp. Protection, Water low levels.
