AIR COOLED AIR CHILLER
600000.00 INR/Unit
Product Details:
- Color White and Gray
- Weight 500 Kilograms (kg)
- Material Copper
- Application Plastic Industries
- Product Type Air cooled Scroll Air Chiller
- Usage Industrial, Blown film extraction Machine
- Refrigerating Capacity 9 to 28 TR
- Click to View more
X
AIR COOLED AIR CHILLER Price And Quantity
- 600000.00 INR/Unit
- 1 Unit
AIR COOLED AIR CHILLER Product Specifications
- Emerson
- Industrial, Blown film extraction Machine
- 9 to 28 TR
- New
- Air
- Air cooled Scroll Air Chiller
- Copper
- 420V-50Hz-3phase
- 1 Year
- Plastic Industries
- 440 Volt (v)
- White and Gray
- 500 Kilograms (kg)
AIR COOLED AIR CHILLER Trade Information
- MUNDRA
- 20 Unit Per Month
- 7 Days
- No
- Normally : plastic wrapping , Special Case : Wooden Packing
- Asia Middle East Africa
- All India
- ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC
Product Description
Air Cooled Air Chillers :
Efficient & Reliable Cooling for Blown Film Extrusion
Advantages
Energy-Efficient Cooling
- Uses direct expansion of refrigerant for air cooling, reducing energy consumption compared to conventional water chillers with heat exchangers.
Consistent Performance
- Delivers a stable air temperature, unaffected by ambient conditions, ensuring optimal plastic processing on blown film extrusion lines
High Cooling Capacity
- Available in capacities from 9 TR to 30 TR. Operates efficiently within a temperature range of 5C to 20C, even in ambient temperatures up to 40C.
Space-Saving Design
- Compact and efficient, reducing the footprint by up to 25% compared to traditional water chiller plus heat exchanger systems
Innovative Cooling Technology for Maximum Efficiency Unique Features
High-Efficiency Compressor & Motor
- Energy-efficient scroll compressor with a hermetically sealed suction gas-cooled motor for reliable performance.
Advanced PLC-Based Control System
- User-friendly control platform with a 2-line, 16-character LCD display.
- Onboard fault indication with an audio alarm for quick diagnostics.
- Real-time display of set values, actual values, and return air temperature on the screen.
- Scroll and function buttons for easy navigation.
Precision Temperature Control
- Modulating hot gas bypass valve ensures accurate and stable temperature regulation.
- Intelligent energy-saving program for dual compressor chillers optimized for part-load applications.
Robust & Reliable Design
- Tool-free access panel with a neatly organized internal component layout for easy maintenance.
- Top-tier components from trusted suppliers like Copeland, Danfoss, Siemens, Emerson, EBM, and IFM, ensuring reliability and easy availability.
- Factory-tested under load before shipment for guaranteed performance.

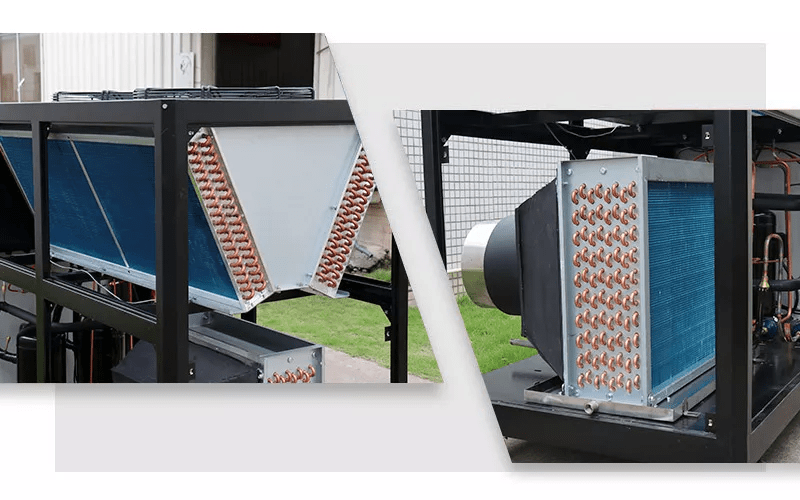

Superior Heat Exchangers & Condenser System
- Finned & Tube Condenser
- Internally grooved copper tubes for a high surface area.
- Generously sized for industrial environments.
- Tested up to 500 PSIG for durability.
- Finned & Tube Evaporator
- High surface area for optimal heat exchange.
- Internally grooved copper tubes with a low-pressure drop.
- Tested up to 300 PSIG for reliability.
|
Model |
FMACA 9 |
FMACA 12 |
FMACA 18 |
FMACA 22 |
FMACA 24 |
FMACA 28 |
|
Nominal Cooling Capacity kW (TR) |
33.2 (9.4) |
43 (12.6) |
66.4 (18.8) |
78.78 (22.4) |
86 (24.4) |
100.3 (28.5) |
|
At Air Outlet Temperature C |
|
15 |
|
|||
|
Design Air Flow Rate m/hr |
2000 |
3000 |
4000 |
5000 |
5500 |
7000 |
|
Ambient Temperature C |
|
40 |
|
|||
|
Control Range C |
|
Plus (+) 5 up to Plus (+) 20 |
|
|||
|
Cooling Circuit |
||||||
|
Cooling Agent |
|
R22 |
|
|||
|
No. of Compressor |
|
2 |
|
|||
|
No. of Gas Circuit |
|
1 |
|
|||
|
No. of Fan / Fan Power |
1 / 2.63 |
2 / 2.63 |
2 / 2.33 |
|||
|
Compressor Power (kW) |
5.45 2 |
6.32 2 |
8.9 2 |
10.82 2 |
11.6 2 |
13.65 2 |
|
Process Air Data |
||||||
|
Maximum Air Flow Rate m/hr |
2000 |
3000 |
4000 |
5000 |
5500 |
7000 |
|
Minimum Air Flow Rate m/hr |
800 |
1200 |
1600 |
2200 |
2400 |
2800 |
|
Pressure Drop of Air Through Evaporator Pa |
150 |
150 |
165 |
250 |
250 |
350 |
|
Air Connection IN / OUT mm |
|
200 |
250 |
|||
|
Air Temperature IN / OUT C |
40 / 15 |
40 / 15 |
40 / 10 |
40 / 10 |
40 / 15 |
40 / 15 |
|
Relative Humidity % |
||||||
|
Electrical Power Supply |
|
415V, 50 Hz, 3 phase |
|
|||
|
Control Voltage |
|
24V DC |
|
|||
|
Total Connected Load KW |
13.53 |
15.27 |
23.06 |
26.9 |
28.46 |
31.96 |
|
Air Cooled Air Chiller Require Fresh Air Suction on Condenser side and hot exhaust on top of the chiller |
||||||
|
Main Dimensions (mm) |
||||||
|
W x D x H (mm) |
1150 1640 2210 |
1610 1960 2310 |
2350 2550 2350 |
|||
|
Weight (Kg.) |
800 |
950 |
1300 |
1550 |
||
|
Color |
|
Gray and Off White |
|
|||
Condenser fan assembly: Single-piece blade, motor, nozzle, and guard for improved reliability with rugged external rotor fan motors.
FAQs of Air Cooled Air Chiller
Q: Is the Air Cooled Air Chiller suitable for industrial use?
A: Yes, the chiller is specifically designed for industrial cooling applications.
Q: What is the power supply requirement for this chiller?
A: The chiller operates on an electric power supply.
Q: What is the warranty coverage for this product?
A: The chiller comes with a 1 year warranty for added protection and reliability.
company provides you 4 time services in a year.
Q: What is the color of the chiller?
A: The chiller is coated in white paint for a modern and professional appearance.
Q: What is the voltage specification of the chiller?
A: The chiller operates at 440 Volt (V) for efficient performance.
