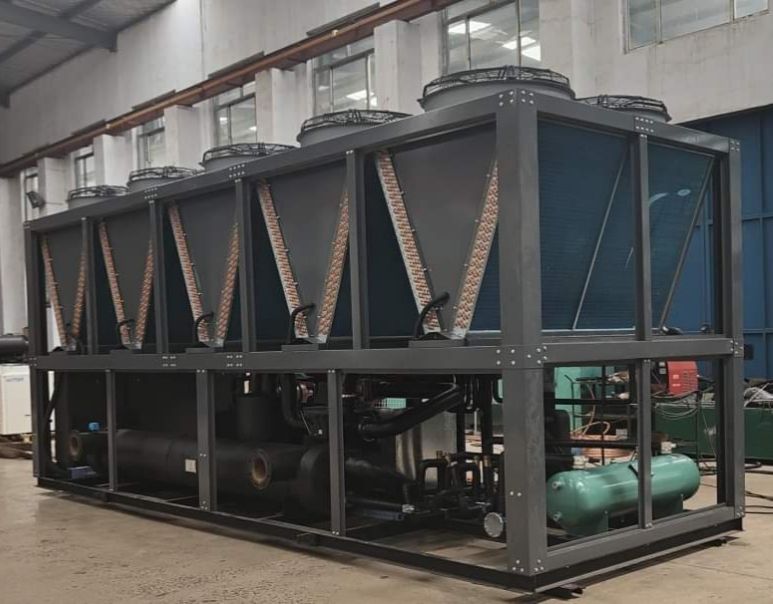

air cooled chiller price per ton

Price 2450000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

air cooled chiller price per ton Specification

Air Flow
32000 ft3/min (CFM)

Material
Metal

Application
chilling water

Water Flowing Rate
20000 lph

Motor
5 hp

Refrigerating Capacity
80 tr

Condition
New

Usage
chilling water

Type
air cooled

Size
standard

Dimension (L*W*H)
150x80x80 Inch (in)

Height
80 Inch (in)

Product Type
air cooled screw chiller

Power Supply
50 hertz

Voltage
415 Volt (v)

Weight
1500 Kilograms (kg)

Color
multi

Cooling Type
air cooled

Nozzle Material
metel

Width
150 Inch (in)

Length
80 Inch (in)

Cooling Coil Material
copper

Water Pump Motor
5 hp

Noise Control
30 db

Compressor
screw

Warranty
1 year

air cooled chiller price per ton Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
5 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
standard packaging

Main Export Market(s)
South America, Africa, Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About air cooled chiller price per ton

Technical Specification

Sr. No.	Parameter	Details
1	Model	FMACSC-80TR-R407C
2	Cooling Capacity	80 TR / 280 kW
3	Refrigeration Circuit	1 No
4	Power Supply	400V, 3Ph, 50Hz
5	Connected Load	70.25 kW /114.8A
6	Refrigerant	R407C
7	Refrigerant Control	Thermostatic Expansion Valve
8	Evaporating SST	7C
9	Condensing SDT	50C
10	Ambient Temperature	45C
11	Working Temperature Range	+10C to +20C
12	Chilled Water Flow	6000 LPH (T = 35C)
13	Condenser Air Flow	30720 CFM
14	Fan Type	Axial Type, Large Blade
15	Fan Quantity	4 Nos
16	Fan Size	28 inches (Suction Type)
17	Fan Power	0.65kW 4 Nos = 2.6 kW
18	Compressor Type	Semi-Hermetic Screw
19	Compressor Quantity	1 No
20	Compressor Make & Model	Bitzer
21	Compressor Power	63.9 kW / 105.4 A @ 50 Hz
22	Start Mode	Star-Delta Starter
23	Capacity Control	Step (0,25,50,75,100%)
24	Evaporator Type	Shell & Tube Type
25	Evaporator Shell MOC	Carbon Steel, Powder Coated
26	Evaporator Tube MOC	Inner Grooved Copper Tubes
27	Evaporator Baffle & Header	SS-304, TIG Welded
28	Evaporator Design Pressure	10 Bar
29	Evaporator Test Pressure	15 Bar (Hydrostatic)
30	Evaporator Pipe Connection	3 BSP (Inlet & Outlet)
31	Evaporator Insulation	40 mm PUF, Closed Cell
32	Condenser Type	Air Cooled (Copper Tubes & Aluminum Fins)
33	Pump power	3.75 kw/5HP/5.2A/50000LPH
34	Pump head(Lift)	2.33 KG
35	Condenser Pipe Size	3/8
36	Condenser Support	Galvanized Steel Frame
37	Safety Protections	Inner Thermostat, HP/LP Switch, Overload Relay, Phase Reverse, Flow Switch, Anti-Freeze, Discharge Temp. Protection, Water low levels.
38	Electrical Panel	MCB, Contactor, Overload, Timer, Relays, Pre-wired, PLC, HMI
39	Dimensions (LWH)	After confirmation, we will provide the dimensions and drawing
