brine chilling plants

Price 350000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

brine chilling plants Specification

Water Flowing Rate
10.5 - 11.0 m /h

Refrigerating Capacity
R 407C

Application
Commercial Cooling

Material
Metal, Copper

Motor
Centrifugal Water Pump Motor

Air Flow
60000 ft3/min (CFM)

Usage
Industrial / Process Cooling

Condition
New

Type
Energy efficient chiller

Size
Standard

Dimension (L*W*H)
1500 X 750 X 1450 Millimeter (mm)

Height
na Meter (m)

Power Supply
420 V ( 3 Phase)

Product Type
Water Cooled Scroll Chiller

Weight
500 Kilograms (kg)

Voltage
415 -420 V Volt (v)

Color
Multi

Cooling Type
Water Cooled

Nozzle Material
metel

Length
na Meter (m)

Width
na Meter (m)

Cooling Coil Material
Copper

Water Pump Motor
1.5 HP - 2 HP

Noise Control
Low Noise (Below 70 dB) db

Compressor
Scroll compressor

Warranty
1 Year

brine chilling plants Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
5 Units Per Month

Delivery Time
18 Days

Sample Available
Yes

Packaging Details
Standard Packaging

Main Export Market(s)
Eastern Europe, Western Europe, Asia, Australia, Central America, North America, South America, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About brine chilling plants

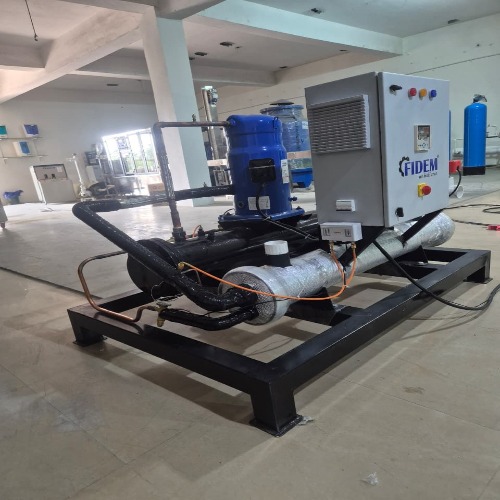

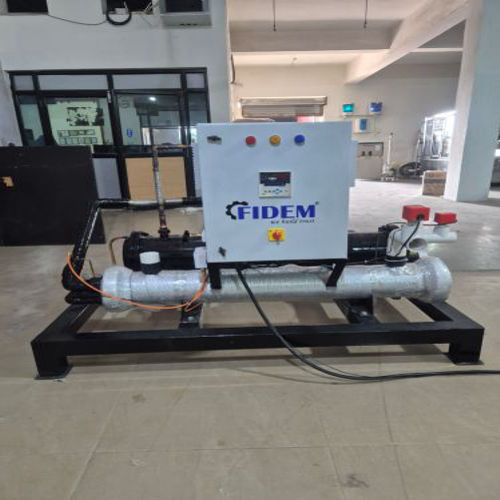

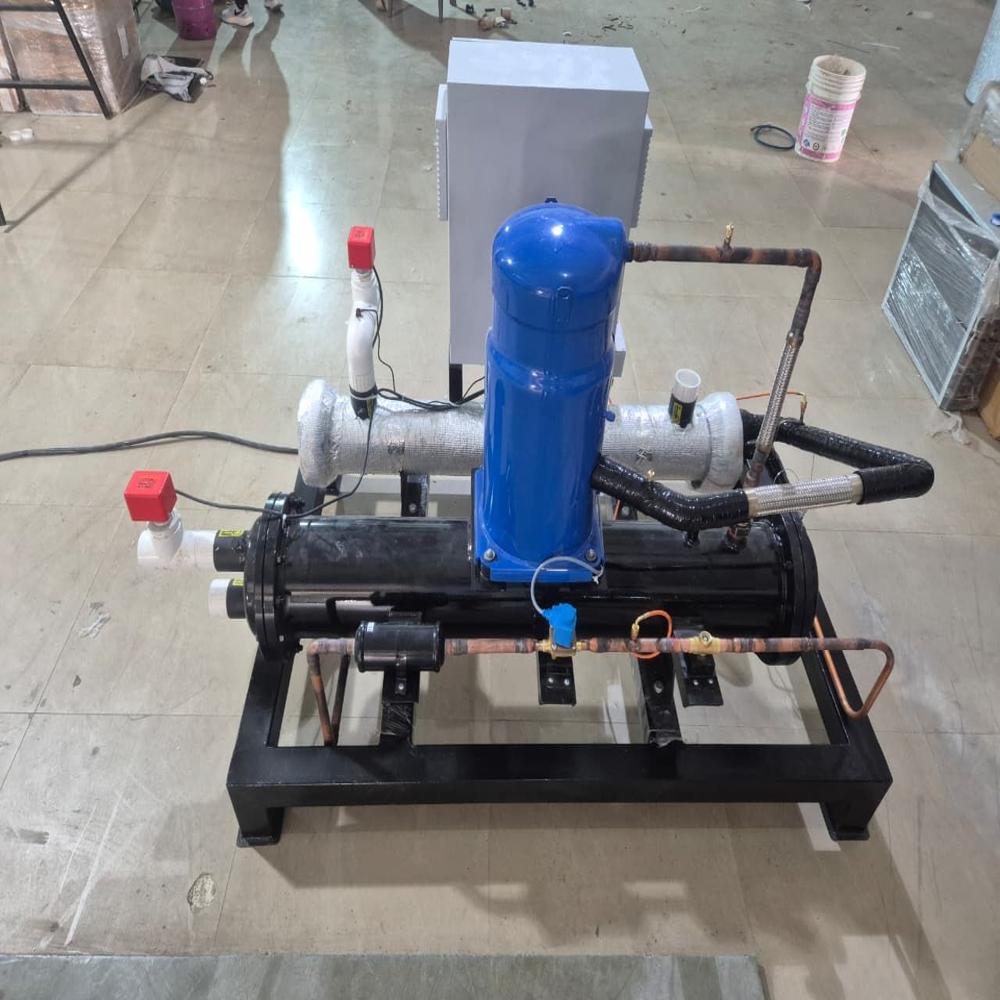

The 10 TR Water Cooled Scroll Chiller from Aquatech Plus Pvt. Ltd. is a high-performance industrial cooling system designed for continuous operation. It uses a hermetic scroll compressor and efficient water-cooled technology to deliver stable chilled water with low power consumption. Ideal for process cooling, commercial applications, and equipment heat management.

Description	Specification
Actual Cooling Capacity	10.21 TR(35.9 kW)
Nominal Rated Capacity	10.0 TR
Compressor Input Power	5.75 kW
Pump Power	0.75 kW
Total Power Input (Chiller only)	5.75 kW
Compressor Type	Hermetic Scroll
Compressor Make / Model	Danfoss
Quantity of Compressors	1 No.
Refrigerant Circuits	1 Circuit
Refrigerant	R407C /R-410A
Total Heat Rejection	52 kW
Full Load EER	11.23 Btu/Wh
Full Load COP	3.29 W/W
Estimated IPLV (COP)	3.0 3.2 W/W
Estimated IPLV (EER)	10.5 11.0 Btu/Wh
Total Power / TR	0.57 kW/TR
Altitude	0 m

CONDENSER DETAILS (WATER COOLED SHELL & TUBE)

Description	Specification
Type	Shell & Tube Water Cooled
Entering / Leaving Condenser Water	30 C / 35 C
Condenser Water Flow Rate	10.5 11.0 m/h
Design Pressure	150 psig
Fouling Factor	0.000018 mK/W
Tube Material	Copper (C12200)
Tube OD	19 mm
Pass Arrangement	2-Pass
Shell Material	Carbon Steel (IS 2062)
Water Velocity	1.0 1.2 m/s
Pressure Drop	0.05 0.10 bar
Heat Rejection	49 52 kW
