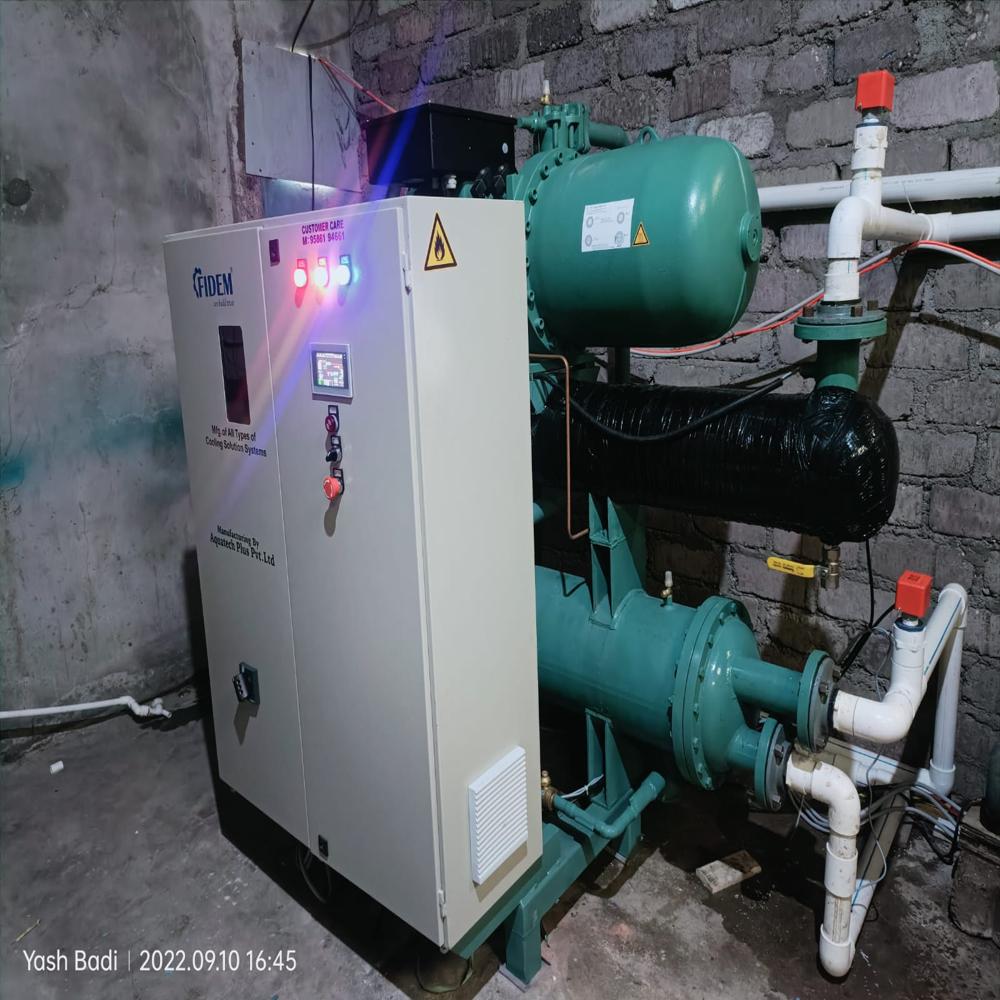

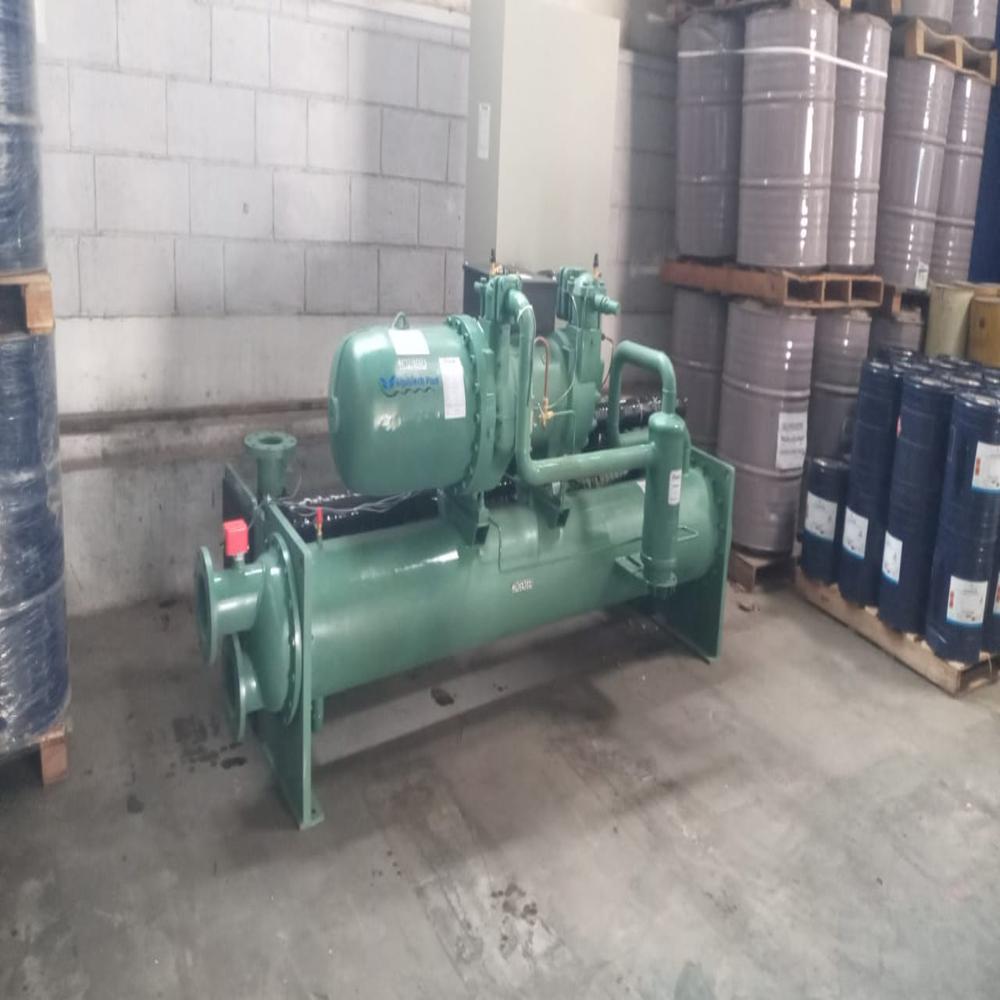

Chiller for chemical industry

Price 800000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Chiller for chemical industry Specification

Motor
3 HP

Air Flow
NA ft3/min (CFM)

Material
Metal

Water Flowing Rate
5000

Application
chilling water

Refrigerating Capacity
25 tr

Usage
chilling water

Condition
New

Type
water cooled

Dimension (L*W*H)
100x50x75 Inch (in)

Size
standard

Height
50 Inch (in)

Power Supply
50 hetrz

Product Type
water cooled

Voltage
415 Volt (v)

Weight
500 Kilograms (kg)

Cooling Type
water cooled

Color
multi

Width
100 Inch (in)

Nozzle Material
metel

Length
75 Inch (in)

Cooling Coil Material
copper

Water Pump Motor
3 hp

Noise Control
30 db

Compressor
screw

Warranty
1 year

Chiller for chemical industry Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
5 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Packaging Details
standard packaging

Main Export Market(s)
North America, South America, Eastern Europe, Western Europe, Middle East, Asia, Africa, Australia, Central America

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About Chiller for chemical industry

Technical Specification FIDEM Glycol Water Cooled Scroll Chiller Sr. No. Parameter Details 1 Model FM-GWCS-25-410A 2 Cooling Capacity 25TR / 88 kW 3 Refrigeration Circuits 1 Nos 4 Power Supply 3Ph, 415V, 50Hz 5 Total Connected Load 28.17kW / 40.56 Amp 6 Refrigerant R410A 7 Expansion Electric Expansion Valve Evaporator - Shell and Tube 8 Temperature (SST) -6 C 9 Chilled Glycol Range -1C TO 10 C Evaporator Circuit 1 Nos 10 Chilled Glycol Flow 15000 LPH (T 5 C) 11 Capacity 88 KW 12 Types Shell and tube 13 Shell MOC Carbone steel (10 MM) (Seamless ) 14 Tube MOC And Types Copper (Grooved ) / U- Bundle 15 Connection Size DN150 16 Pressure Drop 0.4Bar 17 Water side Design pressure 10Bar 18 Design Pressure (Refrigerant Side) 25Bar 19 Pump 15000 Lph @ 15.5 Meter 20 Pump Qty / Types 1 Nos / Centrifuge Mono Block 21 Pump Power 1.2 KW Condenser for Water Cooled chiller 22 Temperature (SDT) +38 C 23 Type Shell & Tube 24 Capacity 109.2 KW 25 Shell MOC Carbon Steel, Epoxy Coated 26 Tube MOC & Type Copper, Plain, Bundle 27 Connection Size 2 28 Water Flow 20000 LPH 29 Pressure Drop (Water Side) 0.4 Bar 30 Water Side Design Pressure 10Bar 31 Refrigerant Side Design Pressure 30Bar 32 Pump 20000 LPH @ 17 m head 33 Pump Qty / Type 1 No., Centrifugal Mono Block 34 Pump Power 2.2 kW, 380415 V, 50 Hz Compressor 35 Compressor types Scroll 36 Capacity Steps 100% 37 Capacity Control -- 38 Compressor Starter Star- Delta 39 Cooling Capacity 88 kW 40 Power Input 24.77 kW 41 Curren
