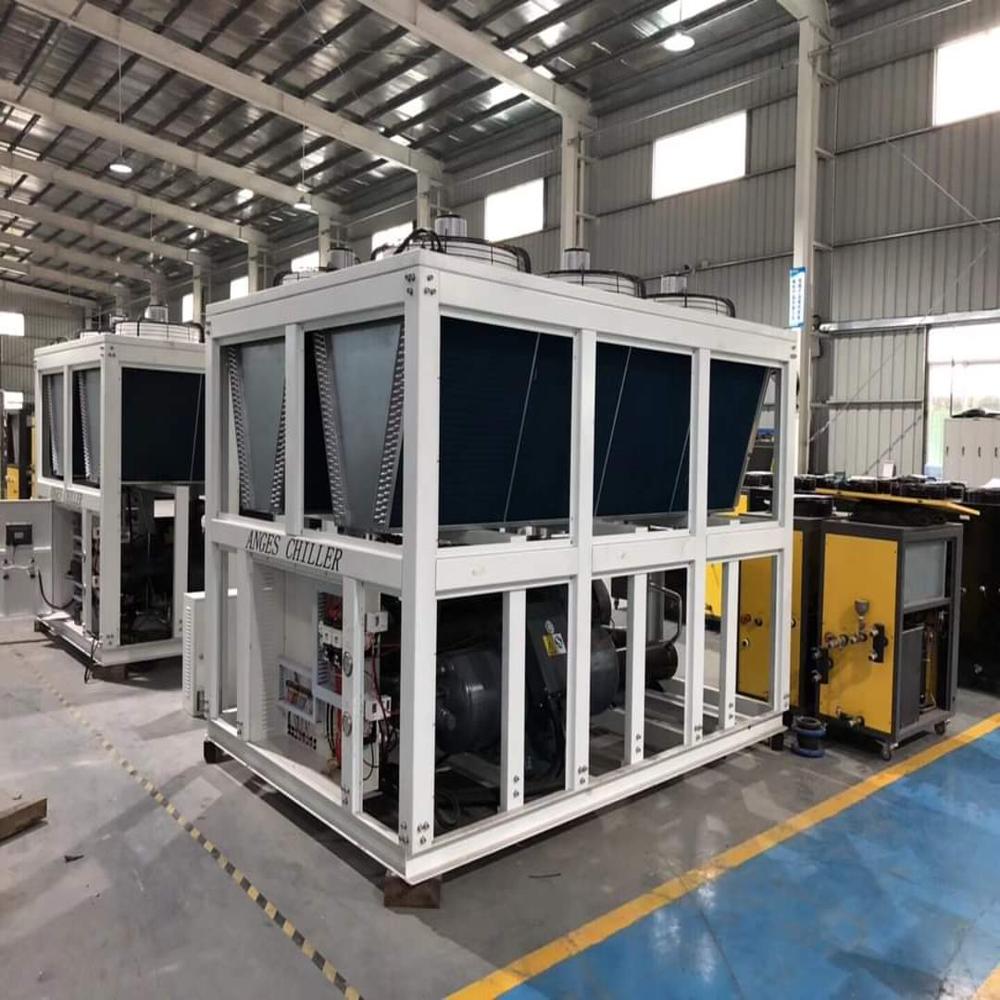

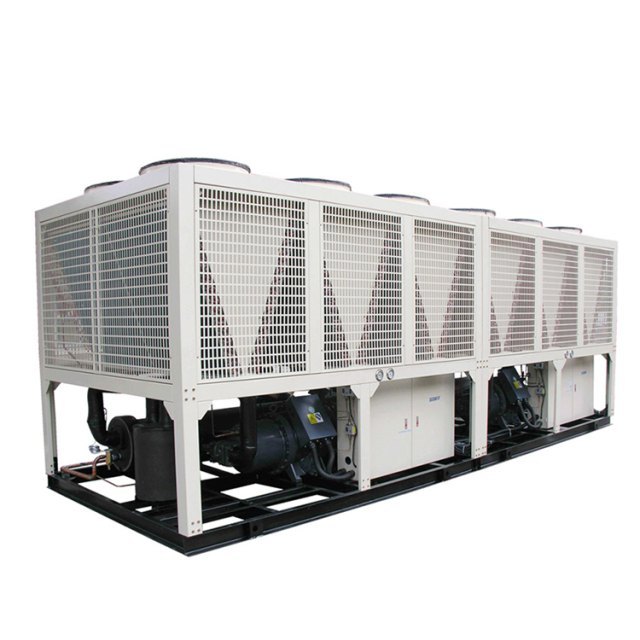

energy-efficient air cooled chiller

Name: energy-efficient air cooled chiller
Brand: AQUATECH PLUS PVT. LTD.
Price: 6700000.0 INR
Availability: InStock

Price 6700000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

energy-efficient air cooled chiller Specification

Air Flow
160000 ft3/min (CFM)

Material
Metal

Refrigerating Capacity
274 TR

Water Flowing Rate
25000 lph

Motor
7 HP

Application
chilling water

Usage
chilling water

Condition
New

Type
air cooled screw chiller

Size
Standard

Dimension (L*W*H)
9610 X 2825 X 2547 Millimeter (mm)

Height
2547 Millimeter (mm)

Product Type
air cooled screw chiller

Power Supply
50 hertz

Voltage
415 Volt (v)

Weight
2000 Kilograms (kg)

Color
multi

Cooling Type
air cooled

Length
2825 Millimeter (mm)

Nozzle Material
metel

Width
9610 Millimeter (mm)

Cooling Coil Material
copper

Water Pump Motor
7 HP

Noise Control
30 db

Compressor
screw

Warranty
1 year

energy-efficient air cooled chiller Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash in Advance (CID), Cash Advance (CA), Cheque

Supply Ability
5 Units Per Month

Delivery Time
15 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Standard packaging

Main Export Market(s)
Asia, North America, South America, Eastern Europe, Australia, Central America, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About energy-efficient air cooled chiller

Technical Specification

Sr. No.	Parameter	Details
1	Model	FM2-275X57XH
2	Cooling Capacity	274.0 TR / 962 kW
3	Refrigeration Circuit	2 No
4	Power Supply	3Ph, 415V, 50Hz
5	Connected Load	304.0 kW / 490 Amp (Full Load Current)
6	Refrigerant	R134a
7	Refrigerant Control	Expansion Valve (Flooded type system)
8	Evaporating SST	+5.6 C (given LWT 6.07 C)
9	Condensing SDT	+36 C Ambient / +45 C SDT
10	Ambient Temperature	Max. 46 C
11	Working Temperature Range	Chilled Water: 5C 20C
12	Chilled Water Flow	415.3 L/s = 1495 m/h , T 5.6C
13	Condenser Air Flow	394,168 CMH
14	Fan Type	Axial Type, Low Noise
15	Fan Quantity	16 Nos
16	Fan Size	910 mm (as per standard for 275 TR unit)
17	Fan Power	40.0 kW (Total, 16 2.5 kW)
18	Compressor Type	Semi-Hermetic Flooded Screw
19	Compressor Quantity	2 Nos
20	Compressor Make & Model	Bitzer
21	Compressor Power	264 kW (driven, total)
22	Start Mode	Star-Delta Starter
23	Capacity Control	Step/Slide Control (Part Load Efficiency IPLV mentioned)
24	Evaporator Type	Flooded Shell & Tube
25	Evaporator Shell MOC	Carbon Steel, Powder Coated
26	Evaporator Tube MOC	Copper Tubes
27	Evaporator Baffle & Header	Carbon Steel
28	Evaporator Design Pressure	15.0 kg/cm (Water Side)
29	Evaporator Test Pressure	Hydrostatic, typically 22 bar
30	Evaporator Pipe Connection	DN150 (6 NB approx., for 1500 m/h flow)
31	Evaporator Insulation	40 mm PUF
32	Condenser Type	Air Cooled, Copper Tubes & Aluminum Fins
33	Condenser Pipe Size	3/8
34	Condenser Support	Galvanized Steel Frame
35	Pump Power	(Not included external pump required)
36	Pump Head (Lift)	(Not included site selected)
37	Safety Protections	Compressor overheating, HP/LP switch, Over-current, Over-temp, Flow Switch, Phase Protection, Oil Safety
38	Electrical Panel	PLC , HMI , MCCB, Contactors, Overload Relay, Timer, Relays, Pre-Wired
39	Dimensions (LWH)	9610 2825 2547 mm
40	Running Weight	9860 kg

Component Brands

Component	Make / Brand
Compressor	Danfoss
Evaporator	FIDEM
Condenser	FIDEM
Electrical Panel	FIDEM
Flow Switch	Castle
Pressure Switch	Danfoss
Expansion Valve	Danfoss
Filter Drier	Dry All
Solenoid Valve	Danfoss
Electrical Components	Schneider Electric
