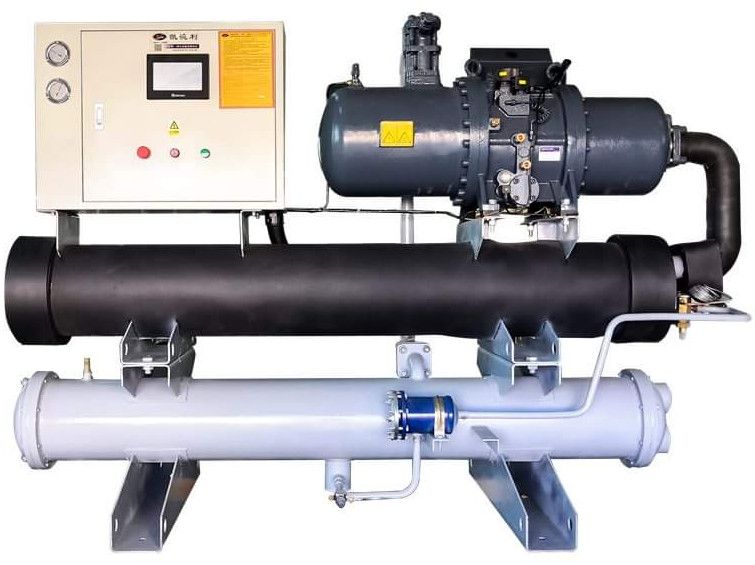

High efficiency cooling

Sr.No.

Parameter

Details

1

Model

FMWCS-80TR-407C

2

Cooling Capacity

80TR/280 kw

3

Refrigeration circuit

1

4

Power Supply

400V-50Hz

5

Connecting load

55.7 KW /104.6 A

6

Refrigerant

R407C

7

Refrigerant Control

Thermostatic Expansion

8

Evaporating SST

7C

9

Condensing SDT

35C

10

Ambient Temp

48C

11

 Working Temperature Range

+7 TO +20

12

Chilled Flow Of Water

6000 LPH , T 35C

18

Compressor Types

Screw

19

Compressor Qty

1

20

Compressor power

 48.2 KW /83 A

21

Start mode

Start Delta

22

Capacity control

0,25,50,75,100 %

23

Evaporator Types

Shell and tube

24

Evaporator pipe connection

4

25

Pump (Condenser) power

 3.75 kw/5 HP/50000LPH

26

Pump head (Lift)

 2.33 KG

27

Pump (Evaporator) power

 3.75 kw/5 HP/40000LPH

28

Pump head (Lift)

 2.4 KG

29

Evaporator Shell MOC

MS. Powder Coted

30

Evaporator and Condenser MOC

Copper and MS

31

Condenser types

Shell and tube

32

Condenser Supporter

Galvanize

33

Safety Protection

Inner Thermostat for compressor motor, unit overload relay, high- and low-pressure switch, reverse phase protection relay, discharge gas thermostat, flow switch, Anti-Freeze protection

34

Electric control panel

Controller, protection relay, contactor, MCB, preventer, timer.

35

Dimension(length/width/height)

After confirmation, we will provide dimensions and drawing -

36

Running weight

-

Product

Make

1.

Compressor

Bitzer

2.

Evaporator

Fidem

3.

Condenser

                               Fidem

4.

Electric panel

Fidem

5.

Flow switch

Castle

6.

Pressure Switch

Danfoss

7.

Expansion valve

Danfoss

8.

Filter

Dryall

9.

Solenoid valve

Danfoss

10.

Electronic components

Schneider
