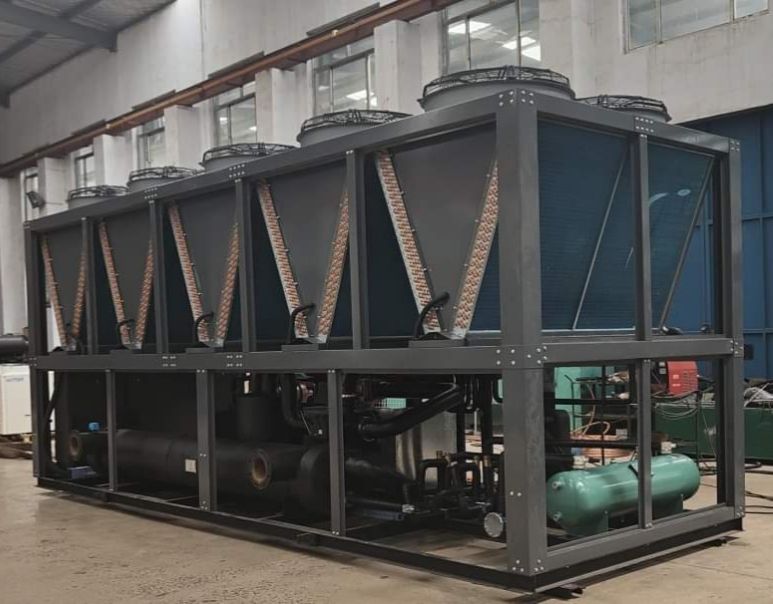

industrial chilling plants

Sr. No.

Parameter

Details

1

Model

FM2-275X57XH

2

Cooling Capacity

274.0 TR / 962 kW

3

Refrigeration Circuit

2 No

4

Power Supply

3Ph, 415V, 50Hz

5

Connected Load

304.0 kW / 490 Amp (Full Load Current)

6

Refrigerant

R134a

7

Refrigerant Control

Expansion Valve (Flooded type system)

8

Evaporating SST

+5.6 C (given LWT 6.07 C)

9

Condensing SDT

+36 C Ambient / +45 C SDT

10

Ambient Temperature

Max. 46 C

11

Working Temperature Range

Chilled Water: 5C 20C

12

Chilled Water Flow

415.3 L/s = 1495 m/h , T 5.6C

13

Condenser Air Flow

394,168 CMH

14

Fan Type

Axial Type, Low Noise

15

Fan Quantity

16 Nos

16

Fan Size

 910 mm (as per standard for 275 TR unit)

17

Fan Power

40.0 kW (Total, 16 2.5 kW)

18

Compressor Type

Semi-Hermetic Flooded Screw

19

Compressor Quantity

2 Nos

20

Compressor Make & Model

Bitzer

21

Compressor Power

264 kW (driven, total)

22

Start Mode

Star-Delta Starter

23

Capacity Control

Step/Slide Control (Part Load Efficiency IPLV mentioned)

24

Evaporator Type

Flooded Shell & Tube

25

Evaporator Shell MOC

Carbon Steel, Powder Coated

26

Evaporator Tube MOC

Copper Tubes

27

Evaporator Baffle & Header

Carbon Steel

28

Evaporator Design Pressure

15.0 kg/cm (Water Side)

29

Evaporator Test Pressure

Hydrostatic, typically 22 bar

30

Evaporator Pipe Connection

DN150 (6 NB approx., for 1500 m/h flow)

31

Evaporator Insulation

40 mm PUF

32

Condenser Type

Air Cooled, Copper Tubes & Aluminum Fins

33

Condenser Pipe Size

3/8

34

Condenser Support

Galvanized Steel Frame

35

Pump Power

(Not included external pump required)

36

Pump Head (Lift)

(Not included site selected)

37

Safety Protections

Compressor overheating, HP/LP switch, Over-current, Over-temp, Flow Switch, Phase Protection, Oil Safety

38

Electrical Panel

PLC , HMI , MCCB, Contactors, Overload Relay, Timer, Relays, Pre-Wired

39

Dimensions (LWH)

9610 2825 2547 mm

40

Running Weight

9860 kg

Component

Make / Brand

Compressor

Danfoss

Evaporator

FIDEM

Condenser

FIDEM

Electrical Panel

FIDEM

Flow Switch

Castle

Pressure Switch

Danfoss

Expansion Valve

Danfoss

Filter Drier

Dry All

Solenoid Valve

Danfoss

Electrical Components

Schneider Electric
