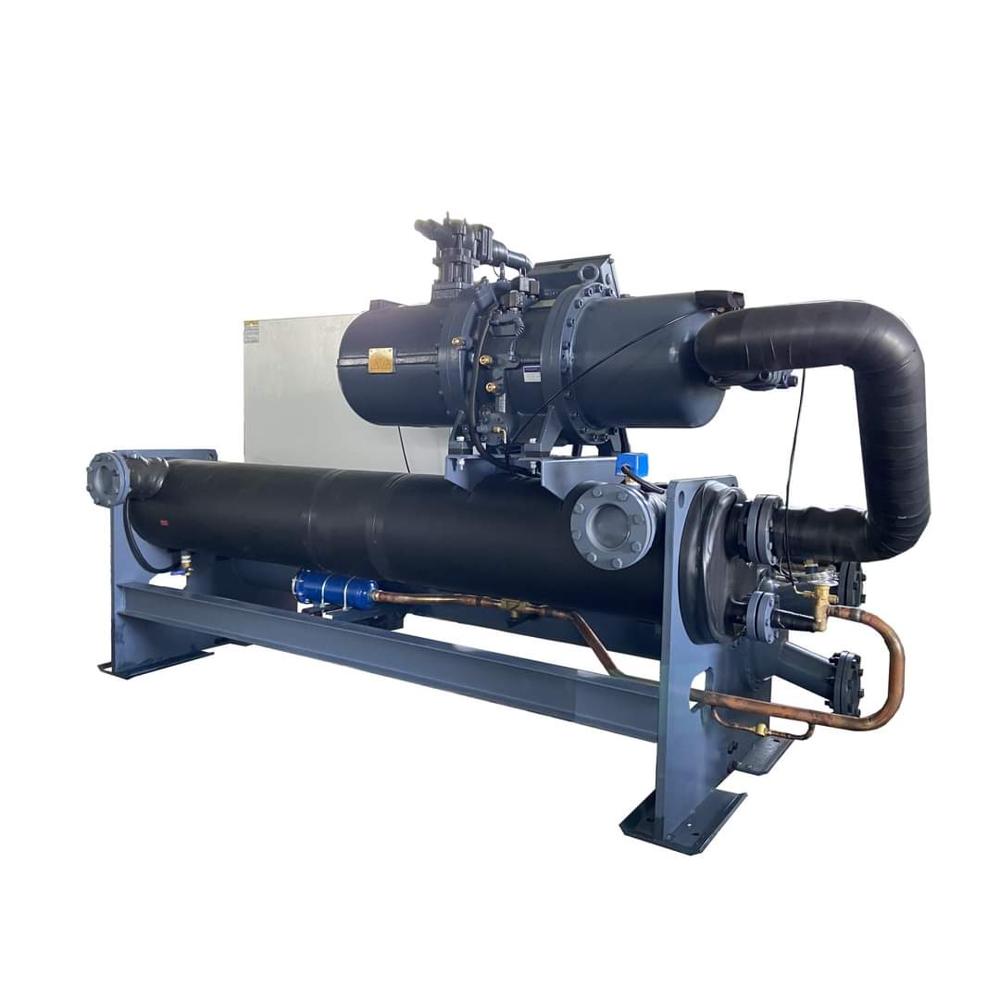

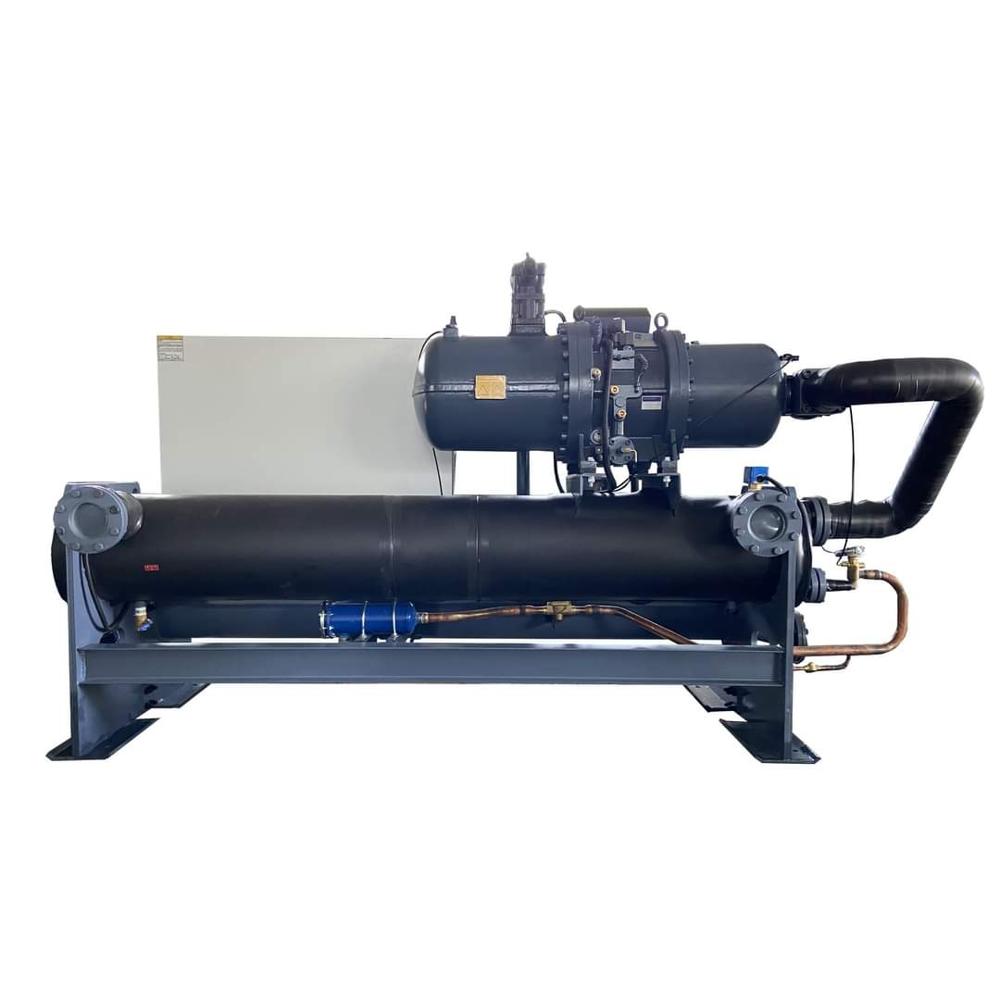

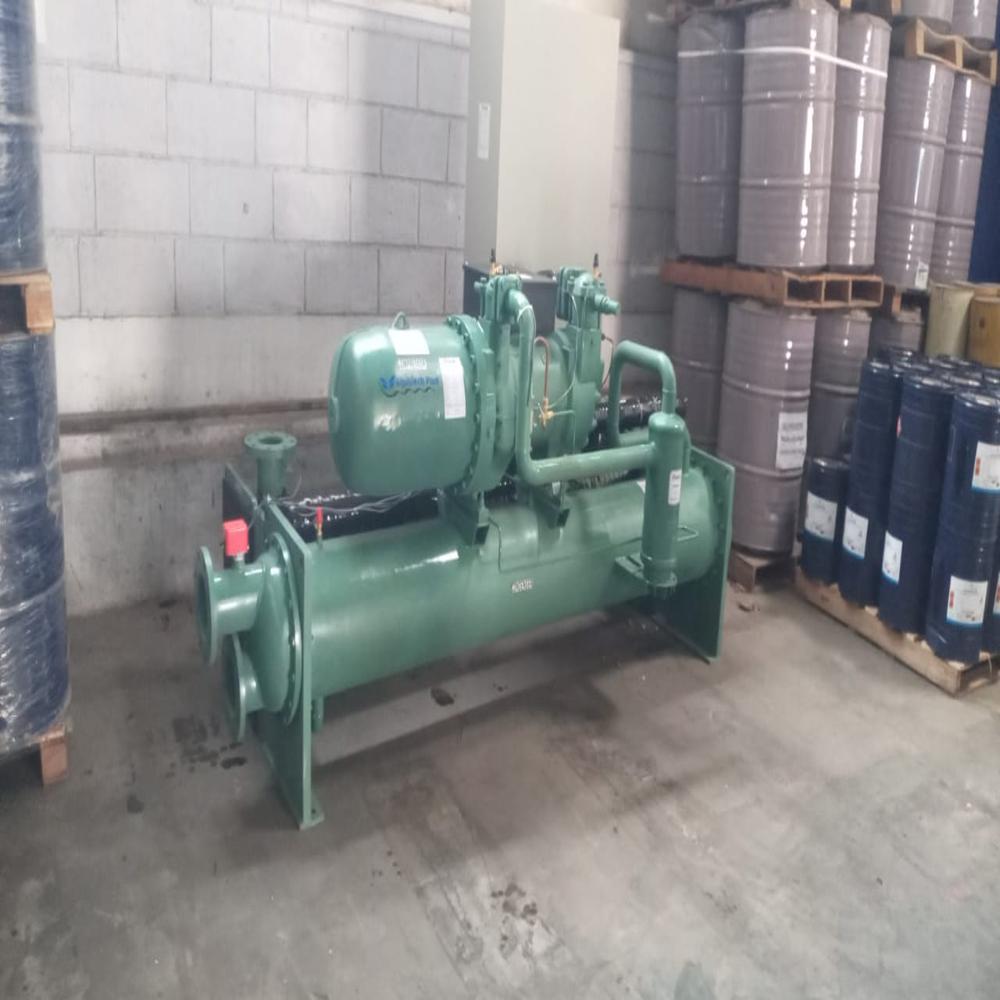

Send Inquirymilk chilling plant
Price 800000.0 INR/ Unit
MOQ : 1 Unit
milk chilling plant Specification
- Air Flow
- NA ft3/min (CFM)
- Application
- chilling water
- Motor
- 3 HP
- Material
- Metal
- Refrigerating Capacity
- 25 tr
- Water Flowing Rate
- 5000
- Usage
- chilling water
- Condition
- New
- Type
- water cooled
- Size
- standard
- Dimension (L*W*H)
- 100x50x75 Inch (in)
- Height
- 50 Inch (in)
- Power Supply
- 50 hetrz
- Product Type
- water cooled
- Voltage
- 415 Volt (v)
- Weight
- 500 Kilograms (kg)
- Cooling Type
- water cooled
- Color
- multi
- Nozzle Material
- metel
- Width
- 100 Inch (in)
- Length
- 75 Inch (in)
- Cooling Coil Material
- copper
- Water Pump Motor
- 3 hp
- Noise Control
- 30 db
- Compressor
- screw
- Warranty
- 1 year
milk chilling plant Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Mundra
- Payment Terms
- Cheque, Cash Advance (CA), Cash in Advance (CID)
- Supply Ability
- 5 Units Per Month
- Delivery Time
- 15 Days
- Sample Available
- Yes
- Packaging Details
- standard packaging
- Main Export Market(s)
- Central America, North America, South America, Eastern Europe, Western Europe, Asia, Australia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC
About milk chilling plant
| Sr. No. | Parameter | Details |
|---|---|---|
| 1 | Model | FM-GWCS-25-410A |
| 2 | Cooling Capacity | 25 TR / 88 kW |
| 3 | Refrigeration Circuits | 1 No. |
| 4 | Power Supply | 3Ph, 415V, 50Hz |
| 5 | Total Connected Load | 28.17 kW / 40.56 Amp |
| 6 | Refrigerant | R410A |
| 7 | Expansion Device | Electronic Expansion Valve |
| 8 | Evaporator Temperature (SST) | -6C |
| 9 | Chilled Glycol Range | -1C to 10C |
| 10 | Evaporator Circuit | 1 No. |
| 11 | Chilled Glycol Flow | 15000 LPH (T = 5C) |
| 12 | Evaporator Capacity | 88 kW |
| 13 | Evaporator Type | Shell & Tube |
| 14 | Evaporator Shell MOC | Carbon Steel (10 mm, Seamless) |
| 15 | Evaporator Tube MOC & Type | Copper (Grooved) / U-Bundle |
| 16 | Evaporator Connection Size | DN150 |
| 17 | Evaporator Pressure Drop | 0.4 Bar |
| 18 | Water Side Design Pressure | 10 Bar |
| 19 | Refrigerant Side Design Pressure | 25 Bar |
| 20 | Evaporator Pump | 15000 LPH @ 15.5 m head |
| 21 | Pump Qty / Type | 1 No. / Centrifugal Monoblock |
| 22 | Pump Power | 1.2 kW |
| 23 | Condensing Temperature (SDT) | +38C |
| 24 | Condenser Type | Shell & Tube |
| 25 | Condenser Capacity | 109.2 kW |
| 26 | Condenser Shell MOC | Carbon Steel, Epoxy Coated |
| 27 | Condenser Tube MOC & Type | Copper, Plain Bundle |
| 28 | Condenser Connection Size | 2" |
| 29 | Condenser Water Flow | 20000 LPH |
| 30 | Condenser Pressure Drop | 0.4 Bar |
| 31 | Condenser Water Side Design Pressure | 10 Bar |
| 32 | Condenser Refrigerant Side Design Pressure | 30 Bar |
| 33 | Condenser Pump | 20000 LPH @ 17 m head |
| 34 | Pump Qty / Type | 1 No. / Centrifugal Monoblock |
| 35 | Pump Power | 2.2 kW (380415V, 50Hz) |
| 36 | Compressor Type | Scroll |
| 37 | Capacity Steps | 100% |
| 38 | Capacity Control | -- |
| 39 | Compressor Starter | StarDelta |
| 40 | Compressor Cooling Capacity | 88 kW |
| 41 | Compressor Power Input | 24.77 kW |
| 42 | Current | Not Provided |
