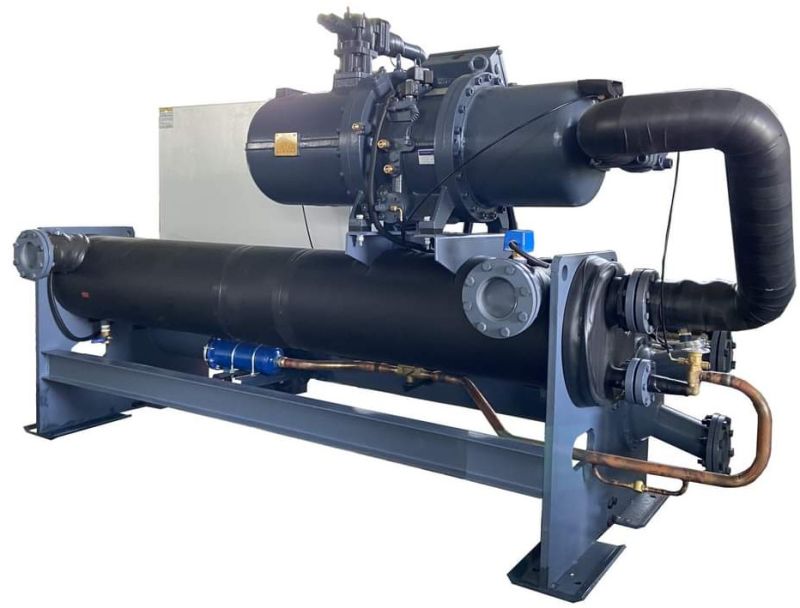

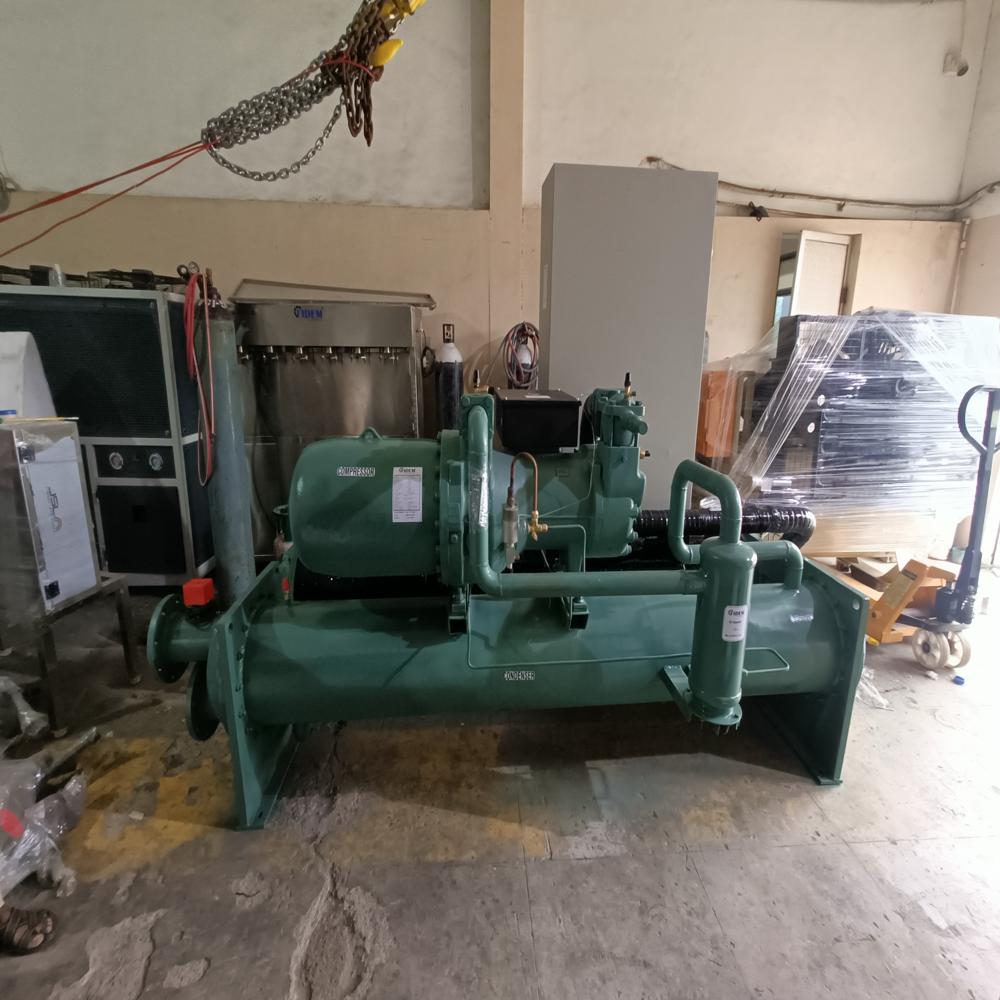

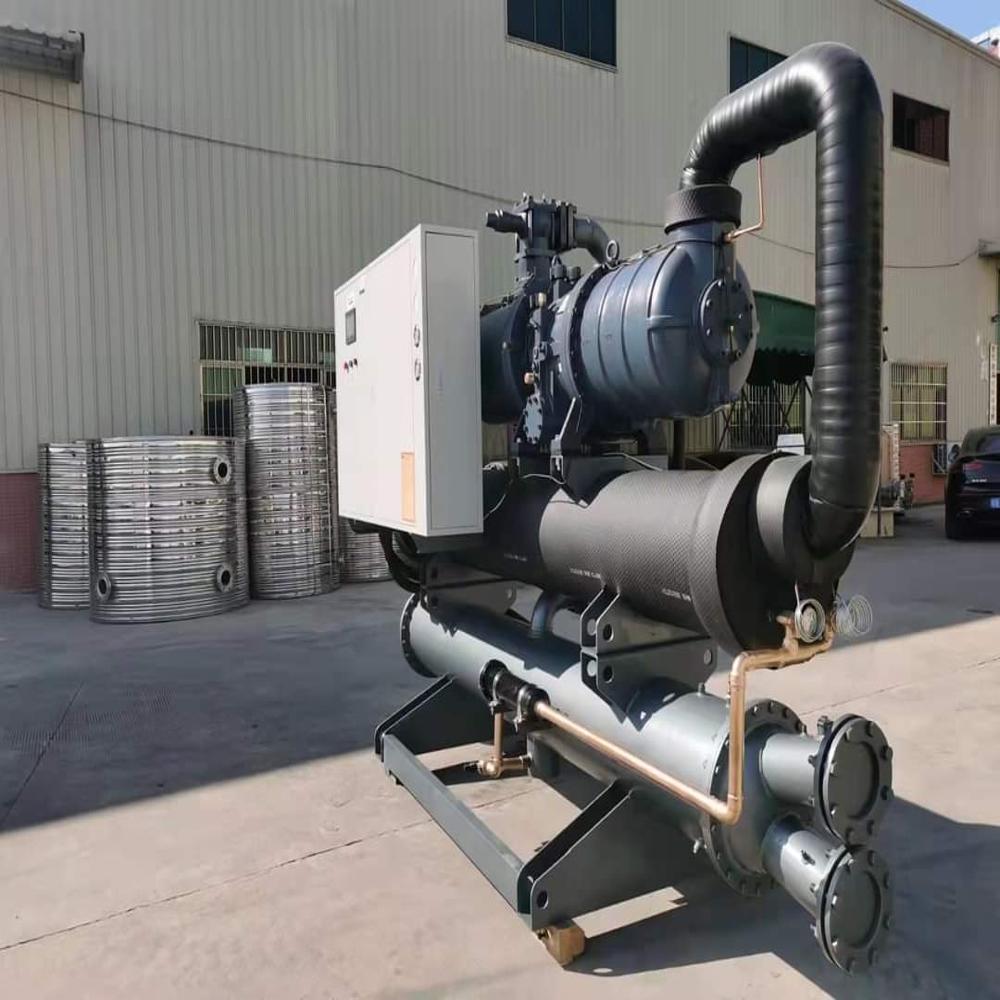

Send InquiryWater cooled chiller system
Price 2050000.0 INR/ Unit
MOQ : 1 Unit
Water cooled chiller system Specification
- Motor
- 2 HP
- Material
- Metal
- Water Flowing Rate
- 10000 LPH
- Refrigerating Capacity
- 40
- Air Flow
- NA ft3/min (CFM)
- Application
- water cooled screw brine chiller
- Usage
- chilling water
- Condition
- New
- Type
- water cooled brine chiller
- Size
- standard
- Dimension (L*W*H)
- 100x60x60 Inch (in)
- Height
- 60 Inch (in)
- Power Supply
- 50 hertz
- Product Type
- water cooled brine chiller
- Weight
- 1000 Kilograms (kg)
- Voltage
- 415 Volt (v)
- Color
- multi
- Cooling Type
- water cooled screw chiller
- Nozzle Material
- metel
- Length
- 60 Inch (in)
- Width
- 100 Inch (in)
- Cooling Coil Material
- copper
- Water Pump Motor
- 2 HP
- Noise Control
- 30 db
- Compressor
- screw
- Warranty
- 1 year
Water cooled chiller system Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Mundra
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 5 Units Per Month
- Delivery Time
- 15 Days
- Sample Available
- Yes
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- standard packaging
- Main Export Market(s)
- North America, Eastern Europe, Western Europe, Middle East, Asia, Australia, Central America, South America, Africa
- Main Domestic Market
- All India
- Certifications
- ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC
About Water cooled chiller system
| Sr. No. | Parameter | Details |
|---|---|---|
| 1 | Model | FM-BWCS-40-407C |
| 2 | Cooling Capacity | 40 TR (150 kW) |
| 3 | Chiller Type | Brine Water Cooled Screw Chiller |
| 4 | Power Supply | 3 Phase, 415 V, 50 Hz |
| 5 | Total Connected Load | 69 kW |
| 6 | Refrigerant | R404A |
| 7 | Compressor Type | Hermetic Screw |
| 8 | Compressor Starter | VFD |
| 9 | Capacity Control | Stepless |
| 10 | Evaporator Type | Shell & Tube |
| 11 | Evaporator SST | -18 C |
| 12 | Chilled Water Temp. Range | -20 C to +5 C |
| 13 | Chilled Water Flow | 24,000 LPH |
| 14 | Condenser Type | Water Cooled, Shell & Tube |
| 15 | Condenser Capacity | 213 kW |
| 16 | Condenser Water Flow | 35 m/hr |
| 17 | Evaporator Pump | 25,000 LPH @ 2 Bar |
| 18 | Condenser Pump | 35 m/hr @ 15 m Head |
| 19 | Compressor Power Input | 62.5 kW |
| 20 | Control System | PLC + HMI (7 Inch) |
| 21 | Safety Protections | High/Low Pressure, Overload, Phase Failure |
