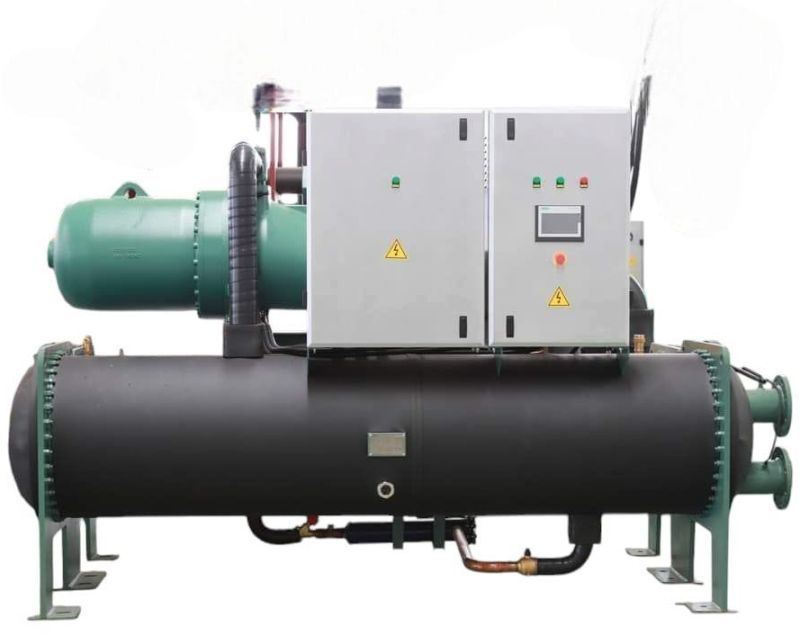

Water cooled chilling plant

Price 3800000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Water cooled chilling plant Specification

Material
Metal

Air Flow
NA ft3/min (CFM)

Refrigerating Capacity
200 TR

Application
CHILLING WATER

Water Flowing Rate
50000

Motor
5 HP

Usage
CHILLING WATER

Condition
New

Type
WATER COOLED

Size
STANDARD

Dimension (L*W*H)
300X90X90 Inch (in)

Height
90 Inch (in)

Power Supply
50 HERTZ

Product Type
WATER COOLED SCREW CHILLER

Voltage
415 Volt (v)

Weight
1000 Kilograms (kg)

Color
MULTI

Cooling Type
WATER COOLED

Width
300 Inch (in)

Nozzle Material
METEL

Length
90 Inch (in)

Cooling Coil Material
COPPER

Water Pump Motor
5 HP

Noise Control
30 db

Compressor
screw

Warranty
1 YEAR

Water cooled chilling plant Trade Information

Minimum Order Quantity
1 Unit

FOB Port
MUNDRA

Payment Terms
Cheque, Cash Advance (CA), Cash in Advance (CID)

Supply Ability
5 Units Per Month

Delivery Time
30 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
STANDARD PACKAGING

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About Water cooled chilling plant

Technical Specification FIDEM Water Cooled Screw Chiller Sr. No. Parameter Details 1 Model FM-WCS-200-407C 2 Cooling Capacity 200 TR / 703 kW 3 Refrigeration Circuits 2 Nos 4 Power Supply 3Ph, 415V, 50Hz 5 Total Connected Load 150 kW / 243 Amp 6 Refrigerant R407C 7 Expansion Electric Expansion Valve Evaporator - Shell and Tube 8 Temperature (SST) 10 C 9 Chilled water Range 15 C TO 20 C Evaporator Circuit 2 Nos 10 Chilled water Flow 26500 LPH (T 23 C) 11 Capacity 703 KW 12 Types Shell and tube 13 Shell MOC Carbone steel (10 MM) (Seamless ) 14 Tube MOC And Types Copper (Grooved ) / U- Bundle 15 Connection Size 6 16 Pressure Drop 0.4Bar 17 Water side Design pressure 10Bar 18 Design Pressure (Refrigerant Side) 25Bar 19 Pump 120000 Lph @ 16.3 Meter 20 Pump Qty / Types 1 Nos / Centrifuge Mono Block 21 Pump Power 11 KW Condenser for Water Cooled chiller 34 Temperature (SDT) +35 C 35 Type Shell & Tube 36 Capacity 718 KW 37 Shell MOC Carbon Steel, Epoxy Coated 38 Tube MOC & Type Copper, Plain, Bundle 39 Connection Size 6 40 Water Flow 140000 LPH 41 Pressure Drop (Water Side) 0.4 Bar 42 Water Side Design Pressure 10Bar 43 Refrigerant Side Design Pressure 30Bar 44 Pump 140000 LPH @ 15.7 m head 45 Pump Qty / Type 1 No., Centrifugal Mono Block 46 Pump Power 11 kW, 380415 V, 50 Hz Compressor 58 Compressor types Compact Screw 59 Capacity Steps 100% 60 Capacity Control 25,50,75,100 Step/Stepless 61 Compressor Starter Star- Delta (VFD- Optional) 62 Cooling Capacity 718 kW 64 Power Input
