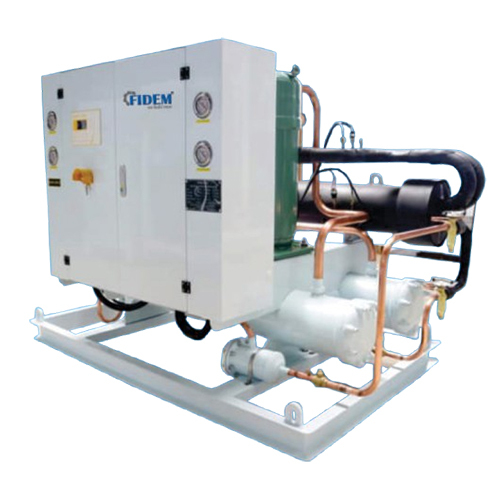

water Cooled Inverter Scroll energy efficience Chiller

water Cooled Inverter Scroll energy efficience Chiller

500000.0 INR/Number

Get a Price/Quote

Product Details:

Color White
Product Type Industrial Chiller
Material Metal
Size Standard
Condition New
Type Scroll Chiller
Power Supply Electrical
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

water Cooled Inverter Scroll energy efficience Chiller Price And Quantity

Price 500000.0 INR/Number
Minimum Order Quantity 1 Number

water Cooled Inverter Scroll energy efficience Chiller Product Specifications

Product Type Industrial Chiller
Type Scroll Chiller
Voltage 220/440 Volt (v)
Color White
Condition New
Size Standard
Power Supply Electrical
Cooling Type Water
Material Metal

water Cooled Inverter Scroll energy efficience Chiller Trade Information

FOB Port Mundra
Payment Terms Cheque Telegraphic Transfer (T/T) Letter of Credit (L/C)
Supply Ability 10 Number Per Month
Delivery Time 1 Months
Sample Available No
Packaging Details Normally : plastic wrapping , Special Case : Wooden Packing
Main Export Market(s) Asia Middle East Africa
Main Domestic Market All India
Certifications ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

Product Description

Inverter Scroll Chillers Energy (Efficient Scroll Chiller).

With over two decades of expertise in the HVAC industry and the largest installed base of scroll chillers in India, Fidem is the nation's leading provider of scroll chiller systems.
Now, Fidem introduces Inverter Scroll Chillers, designed with advanced technology and innovative features to redefine energy efficiency and performance.
Unmatched Efficiency & Savings
The Fidem Inverter Scroll Chiller is India's first scroll chiller to surpass high-efficiency norms, delivering exceptional energy savings and a high return on investment.
Precision Engineering & Versatile Performance
Manufactured at Fidem's ISO 9001-certified facility, this advanced range of inverter scroll chillers is available in capacities ranging from 10TR to 78TR. Engineered with a combination of inverter and fixed-speed compressors, these chillers efficiently adapt to fluctuating.

cooling demands, making them ideal for:

Commercial Spaces-Offices, Hotels

Healthcare-Hospitals, Laboratories

Industrial Applications-Manufacturing Units, Data Centers

Designed for reliable performance in varying loads and seasonal changes, Fidem Inverter Scroll Chillers set new benchmarks in cooling efficiency and sustainability.

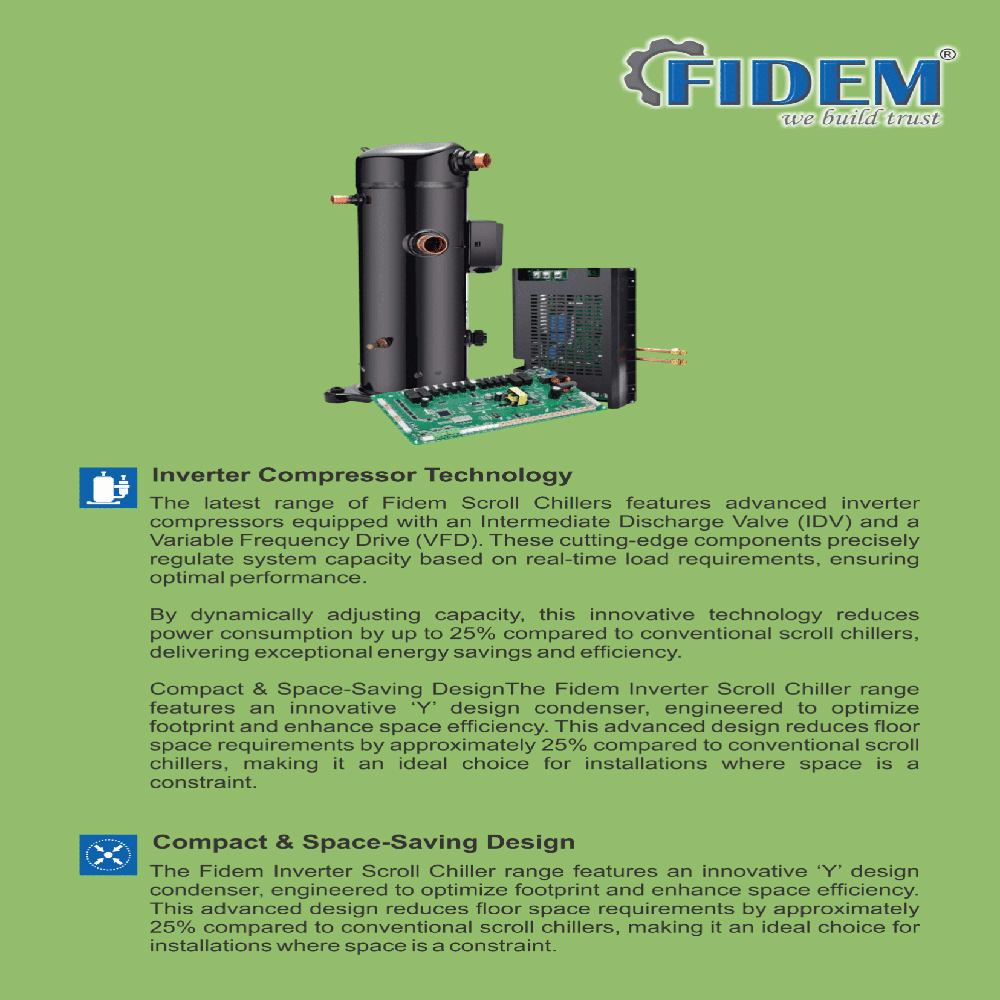

Inverter Compressor Technology

The latest range of Fidem Scroll Chillers features advanced inverter compressors equipped with an Intermediate Discharge Valve (IDV) and a Variable Frequency Drive (VFD). These cutting-edge components precisely regulate system capacity based on real-time load requirements, ensuring optimal performance.
By dynamically adjusting capacity, this innovative technology reduces power consumption by up to 25% compared to conventional scroll chillers. delivering exceptional energy savings and efficiency.
Compact & Space-Saving Design The Fidem Inverter Scroll Chiller range features an innovative 'Y' design condenser, engineered to optimize footprint and enhance space efficiency. This advanced design reduces floor space requirements by approximately 25% compared to conventional scroll chillers, making it an ideal choice for installations where space is a constraint

Compact & Space-Saving Design

The Fidem Inverter Scroll Chiller range features an innovative 'Y' design condenser, engineered to optimize footprint and enhance space efficiency. This advanced design reduces floor space requirements by approximately 25% compared to conventional scroll chillers, making it an ideal choice for installations where space is a constraint.

High Reliability & Performance

The Fidem Inverter Scroll Chiller is engineered for superior reliability. featuring advanced control logic that intelligently manages chiller load variations using inverter scroll compressors. This minimizes on-off cycles of fixed-speed compressors, significantly extending the e span of the chiller while ensuring smooth and efficient operation.

Rapid Cooling Mode for Critical Applications

Designed for process cooling, pharmaceuticals, and industrial applications, where load variations can be substantial, conventional chillers typically take 20 minutes to reach full capacity.

The Fidem Inverter Scroll Chiller features an innovative Rapid Cooling Mode, enabling 100% cooling capacity in just 2 minutes. This ensures precise temperature control and rapid response to cooling demands, making it ideal for industries requiring fast and reliable chilled water supply.

Key Features:

Wide Operating Range:

Conventional Chillers: Operate at a chilled water inlet temperature of 12C and a chilled water outlet temperature of 7C (5C differential) Inverter Scroll Chillers Capable of operating with a chilled water temperature differential of up to 10C, enabling more efficient performance across yahoos applications
Optimized Running Costs: The wider temperature differential helps reduce energy consumption and operational costs, making it a more sustainable solution for industrial and commercial cooling needs
Versatility for Various Applications: Ideal for applications with high cooling demands or process cooling systems requiring higher temperature offerendal
Enhanced Efficiency. The inverter-driven compressor ensures that the chiller operates at the optimal speed, improving both energy efficiency and performance.
Risibility & Durability Designed with advanced features for long-lasting performance in demanding.
Advanced Safety & Protection Features

The Fidem Inverter Scroll Chillers are equipped with a comprehensive multi-level protection system to ensure reliable and safe operation. These advanced safety features safeguard the chiller against.

Anti-freeze protection

High Pressure/Low Pressure (HP/LP) protection

Single-phase protection

Phase loss detection

Overload protection

Overcurrent & undercurrent protection

Reverse rotation protection for inverter compressors

Ollfortage detection

Enhanced Durability with Anti-Corrosion Coating

For installations in corrosive environments, Fidem offers an optional blue-fin coating for air-cooled condensers. This special treatment enhances corrosion resistance, extending the operational life of the chiller and ensuring long-term perform conditions. challenging conditions.

Eco-Friendly & Sustainable Cooling

The Fidem Inverter Scroll Chillers are designed with sustainability in mind, utilizing zero ODP (Ozone Depletion Potential) R-410A refrigerant. This environmentally friendly refrigerant ensures efficient cooling performance while minimizing environmental impact, making it a responsible choice for green building initiatives.

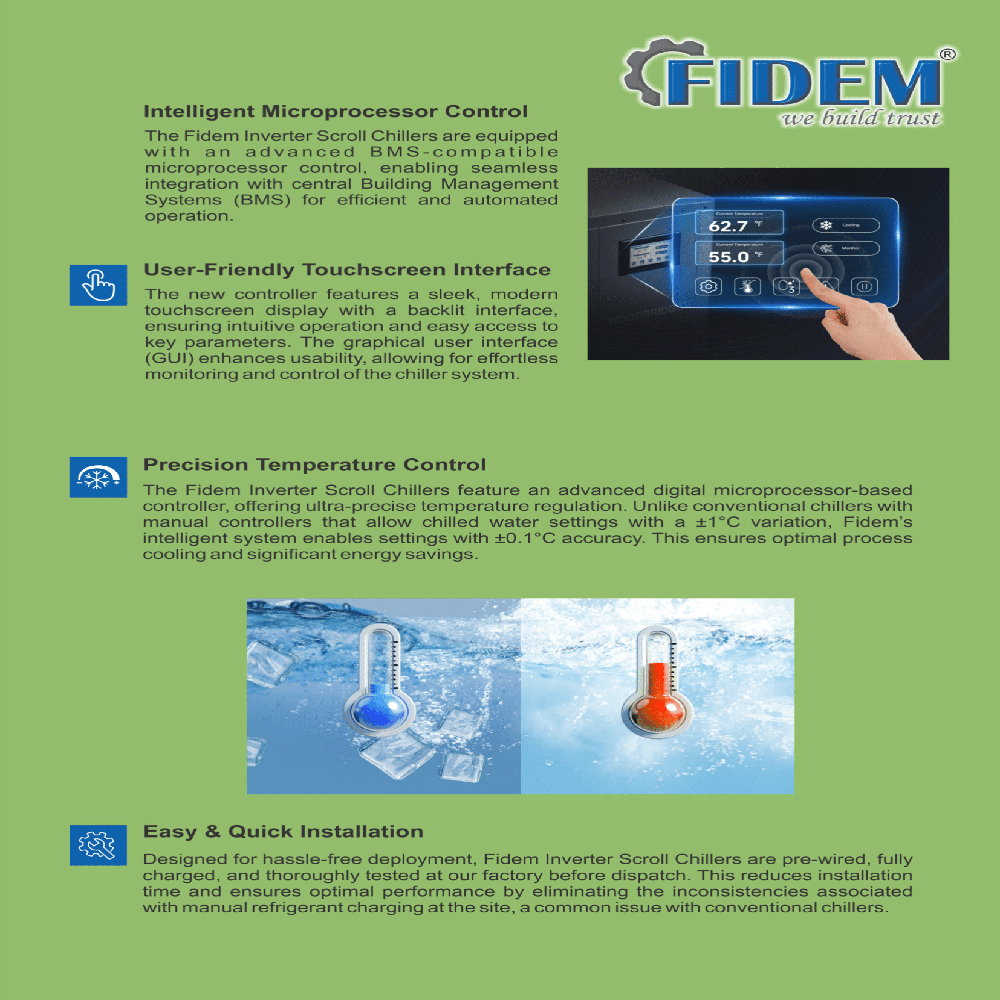

Intelligent Microprocessor Control

The Fidem Inverter Scroll Chillers are equipped with an advanced BMS-compatible microprocessor control, enabling seamless integration with central Building Management Systems (BMS) for efficient and automated operation.

User-Friendly Touchscreen Interface

The new controller features a sleek, modern touchscreen display with a backlit interface, ensuring intuitive operation and easy access to key parameters. The graphical user interface (GUI) enhances usability, allowing for effortless monitoring and control of the chiller system.

Precision Temperature Control

The Fidem Inverter Scroll Chillers feature an advanced digital microprocessor-based controller, offering ultra-precise temperature regulation. Unlike conventional chillers with manual controllers that allow chilled water settings with a 1C variation, Fidem's intelligent system enables settings with 10.1C accuracy. This en cooling and significant energy savings. mal process

Easy & Quick Installation

Designed for hassle-free deployment, Fidem Inverter Scroll Chillers are pre-wired, fully charged, and thoroughly tested at our factory before dispatch. This reduces installation time and ensures optimal performance by eliminating the inconsistencies associated with manual refrigerant charging at the site, a common issue with conventional chillers.

Silent Operation for Enhanced Comfort

The new-generation Fidem Scroll Chillers are engineered for ultra-quiet performance, Incorporalling advanced noise reduction features

Fully enclosed compressor section-Panels on all four sides minimize noise in air cooled applications.

Aerodynamically optimized condensers-Special bell-mouth venture design reduces

fan-generated air cutting noise

Inverter compressor technology Optimizes the on-off cycles of fixed-speed compressors, further lowering operational noise

This ensures a quieter and more comfortable environment, ideal for commercial and industrial applications requiring low-noise cooling solutions.

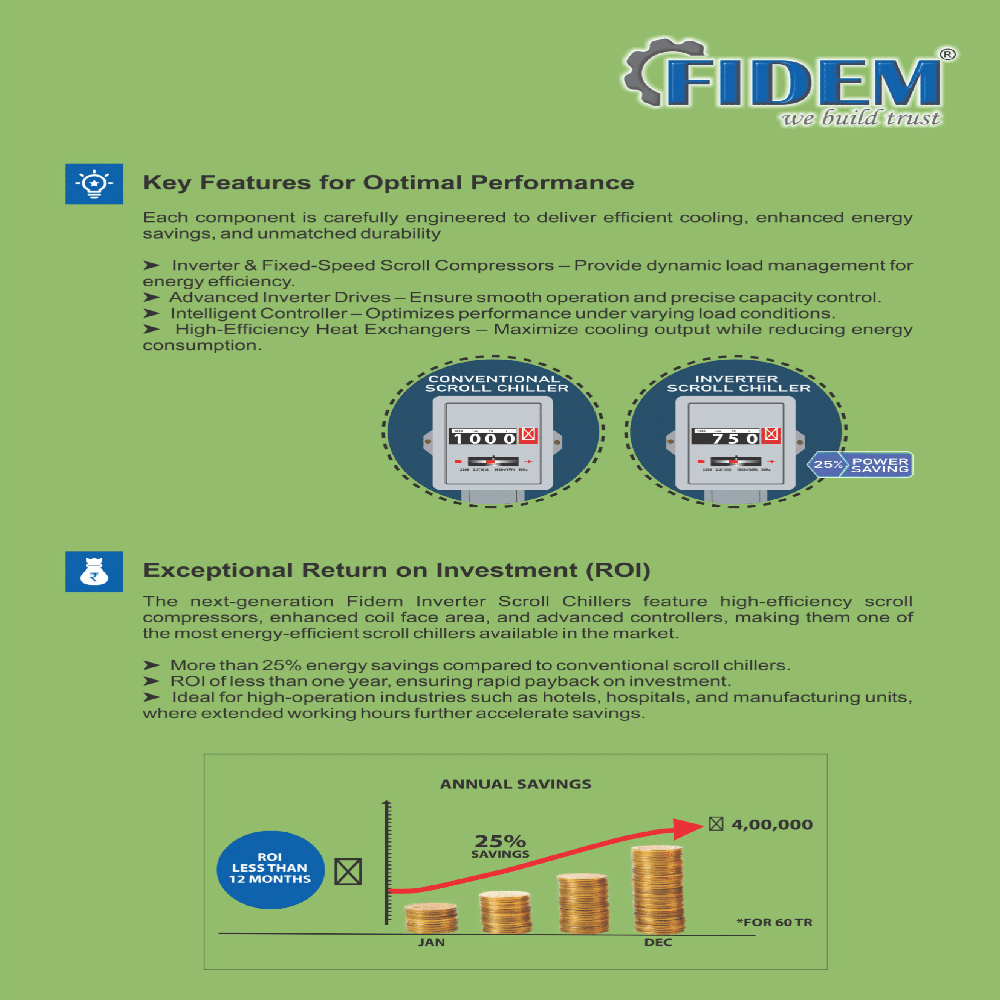

Key Features for Optimal Performance

Each component is carefully engineered to deliver efficient cooling, enhanced energy savings, and unmatched durability

Inverter & Fixed-Speed Scroll Compressors-Provide dynamic load management for energy efficiency.

Advanced Inverter Drives-Ensure smooth operation and precise capacity control.

Intelligent Controller-Optimizes performance under varying load conditions.

High-Efficiency Heat Exchangers-Maximize cooling output while reducing energy consumption.

Exceptional Return on Investment (ROI)

The next-generation idem Inverter Scroll Chillers feature high-efficiency scroll compressors, enhanced coil face area, and advanced controllers, making them one of the most energy-efficient scroll chillers available in the market.

More than 25% energy savings compared to conventional scroll chillers.

ROI of less than one year, ensuring rapid payback on investment.

Ideal for high-operation industries such as hotels, hospitals, and manufacturing units, where extended working hours further accelerate savings.
