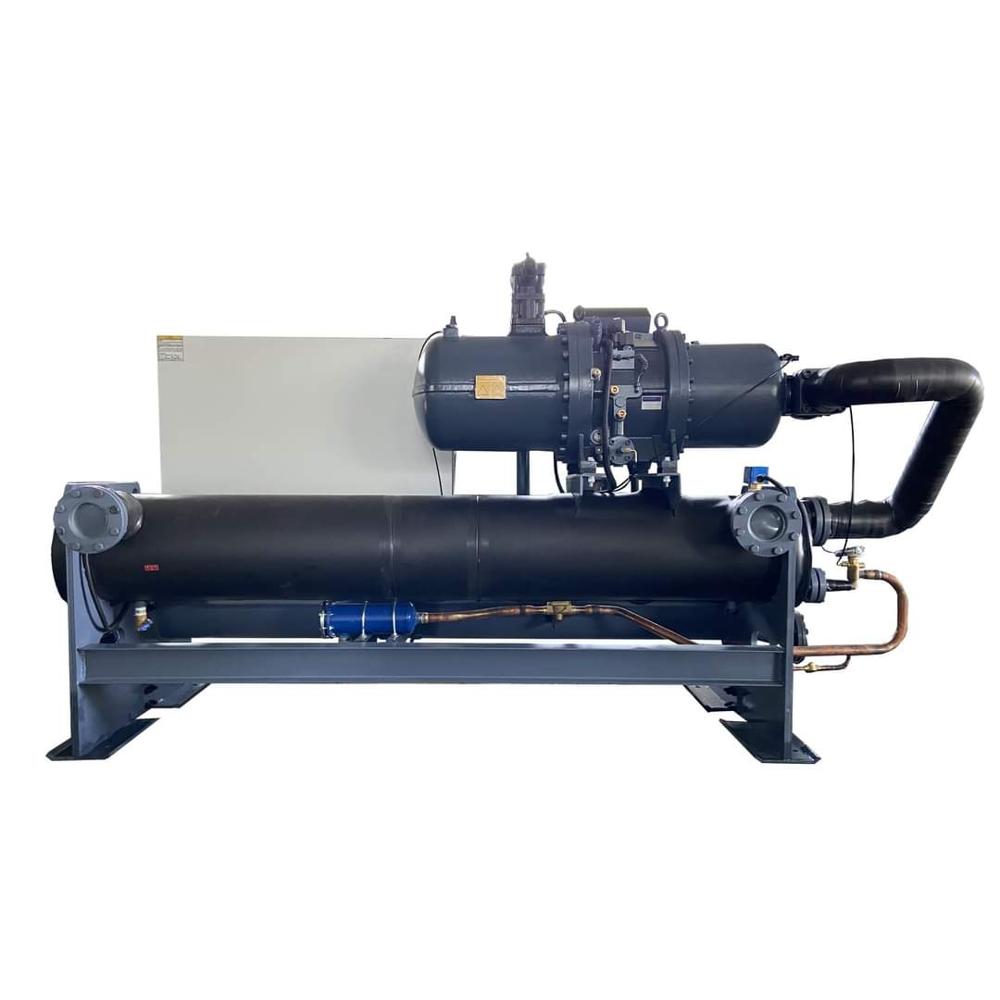

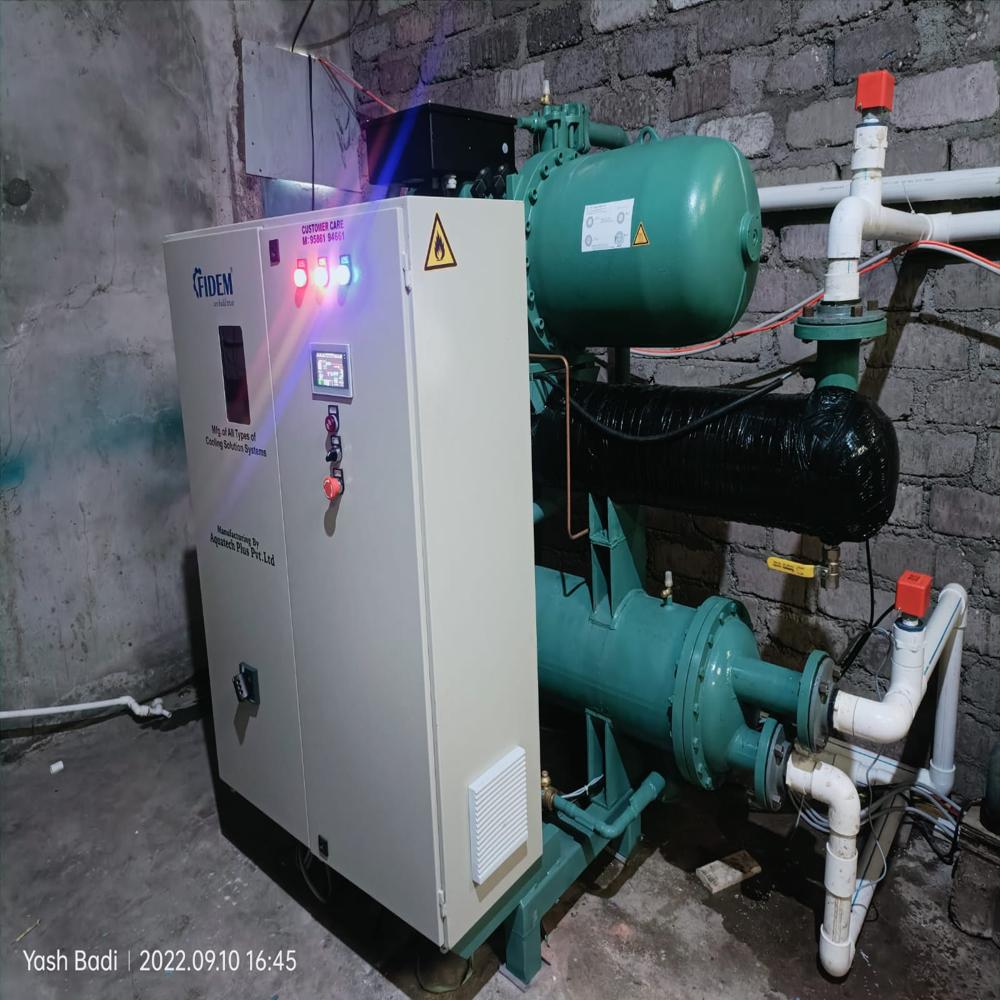

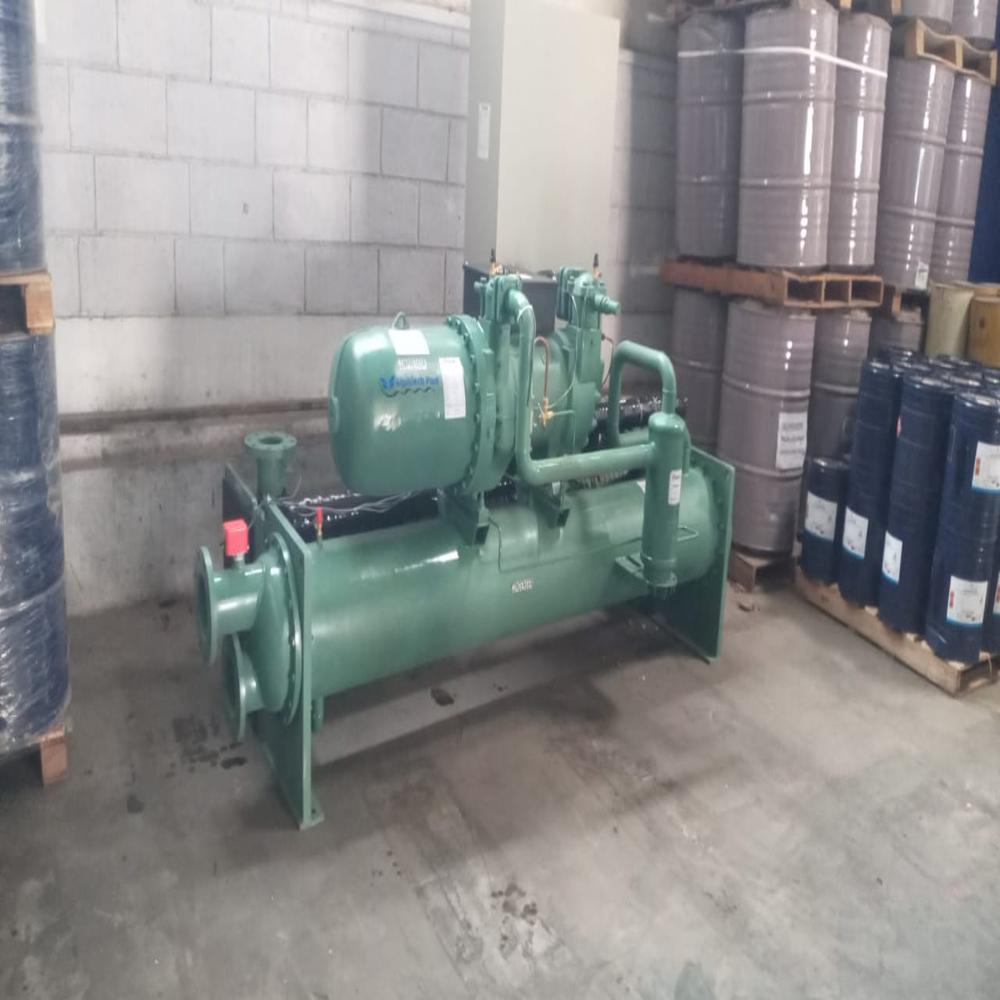

Water cooled scroll chiller

About Water cooled scroll chiller

Sr. No.	Parameter	Details
1	Model	FM-GWCS-25-410A
2	Cooling Capacity	25 TR / 88 kW
3	Refrigeration Circuits	1 No.
4	Power Supply	3Ph, 415V, 50Hz
5	Total Connected Load	28.17 kW / 40.56 Amp
6	Refrigerant	R410A
7	Expansion Device	Electronic Expansion Valve
8	Evaporator Temperature (SST)	-6C
9	Chilled Glycol Range	-1C to 10C
10	Evaporator Circuit	1 No.
11	Chilled Glycol Flow	15000 LPH (T = 5C)
12	Evaporator Capacity	88 kW
13	Evaporator Type	Shell & Tube
14	Shell MOC	Carbon Steel (10 mm) Seamless
15	Tube MOC & Type	Copper (Grooved), U-Bundle
16	Evaporator Connection Size	DN150
17	Evaporator Pressure Drop	0.4 Bar
18	Water Side Design Pressure	10 Bar
19	Refrigerant Side Design Pressure	25 Bar
20	Evaporator Pump	15000 LPH @ 15.5 m head
21	Pump Qty / Type (Evaporator)	1 No., Centrifugal Monoblock
22	Pump Power (Evaporator)	1.2 kW
23	Condensing Temperature (SDT)	+38C
24	Condenser Type	Shell & Tube
25	Condenser Capacity	109.2 kW
26	Condenser Shell MOC	Carbon Steel, Epoxy Coated
27	Condenser Tube MOC & Type	Copper, Plain Bundle
28	Condenser Connection Size	2"
29	Condenser Water Flow	20000 LPH
30	Condenser Pressure Drop	0.4 Bar
31	Water Side Design Pressure (Condenser)	10 Bar
32	Refrigerant Side Design Pressure (Condenser)	30 Bar
33	Condenser Pump	20000 LPH @ 17 m head
34	Pump Qty / Type (Condenser)	1 No., Centrifugal Monoblock
35	Pump Power (Condenser)	2.2 kW (380415V, 50Hz)
36	Compressor Type	Scroll
37	Capacity Steps	100%
38	Capacity Control	--
39	Compressor Starter	StarDelta
40	Cooling Capacity (Compressor)	88 kW
41	Compressor Power Input	24.77 kW
42	Current	Not Provided
