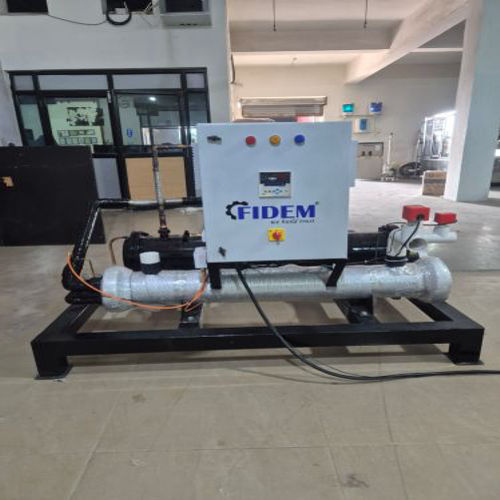

Send Inquiry10 TR Water cooled chiller system
Price 350000.0 INR/ Unit
MOQ : 1 Unit
10 TR Water cooled chiller system Specification
- Water Flowing Rate
- 10.5 11.0 m /h
- Application
- Industrial / Commercial Cooling
- Motor
- Centrifugal Water Pump Motor
- Refrigerating Capacity
- R 407C
- Material
- Metal
- Usage
- Industrial / Process Cooling
- Condition
- New
- Type
- Water Cooled Scroll Chiller
- Dimension (L*W*H)
- 1500 x 750 x 1450 Millimeter (mm)
- Size
- Standard
- Power Supply
- 420 V (Three Phase)
- Product Type
- Water Cooled Scroll Chiller
- Voltage
- 415 -420 V Volt (v)
- Color
- Multi
- Cooling Type
- Water Cooled
- Cooling Coil Material
- Copper
- Water Pump Motor
- 1.5 HP - 2 HP
- Noise Control
- Low Noise (Below 70 dB) db
- Compressor
- Hermetic Scroll
- Warranty
- 1 Year
10 TR Water cooled chiller system Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Mundra
- Payment Terms
- Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 2 Units Per Month
- Delivery Time
- 20 Days
- Sample Available
- No
- Packaging Details
- standard
- Main Export Market(s)
- Asia, Middle East, Africa, Australia, Central America, North America, South America, Eastern Europe, Western Europe
- Main Domestic Market
- All India
- Certifications
- ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC
About 10 TR Water cooled chiller system
|
Description |
Specification |
|
Actual Cooling Capacity |
10.21 TR(35.9 kW) |
|
Nominal Rated Capacity |
10.0 TR |
|
Compressor Input Power |
5.75 kW |
|
Pump Power |
0.75 kW |
|
Total Power Input (Chiller only) |
5.75 kW |
|
Compressor Type |
Hermetic Scroll |
|
Compressor Make / Model |
Danfoss |
|
Quantity of Compressors |
1 No. |
|
Refrigerant Circuits |
1 Circuit |
|
Refrigerant |
R407C /R-410A |
|
Total Heat Rejection |
52 kW |
|
Full Load EER |
11.23 Btu/Wh |
|
Full Load COP |
3.29 W/W |
|
Estimated IPLV (COP) |
3.0 3.2 W/W |
|
Estimated IPLV (EER) |
10.5 11.0 Btu/Wh |
|
Total Power / TR |
0.57 kW/TR |
|
Altitude |
0 m |
CONDENSER DETAILS (WATER COOLED SHELL & TUBE)
|
Description |
Specification |
|
Type |
Shell & Tube Water Cooled |
|
Entering / Leaving Condenser Water |
30 C / 35 C |
|
Condenser Water Flow Rate |
10.5 11.0 m/h |
|
Design Pressure |
150 psig |
|
Fouling Factor |
0.000018 mK/W |
|
Tube Material |
Copper (C12200) |
|
Tube OD |
19 mm |
|
Pass Arrangement |
2-Pass |
|
Shell Material |
Carbon Steel (IS 2062) |
|
Water Velocity |
1.0 1.2 m/s |
|
Pressure Drop |
0.05 0.10 bar |
|
Heat Rejection |
49 52 kW |
