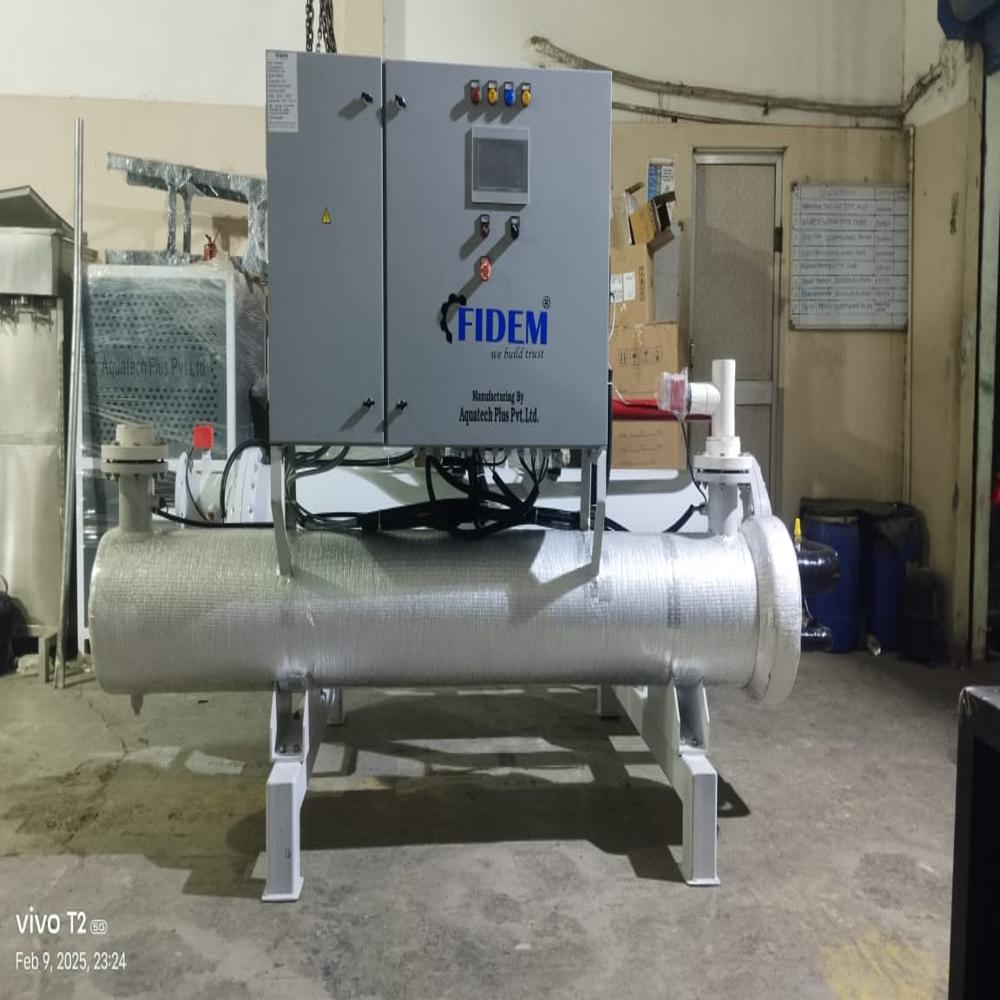

25 TR High performance chiller

25 TR High performance chiller About

Technical Specification FIDEM Glycol Water Cooled Scroll Chiller Sr. No. Parameter Details 1 Model FM-GWCS-25-410A 2 Cooling Capacity 25TR / 88 kW 3 Refrigeration Circuits 1 Nos 4 Power Supply 3Ph, 415V, 50Hz 5 Total Connected Load 28.17kW / 40.56 Amp 6 Refrigerant R410A 7 Expansion Electric Expansion Valve   Evaporator - Shell and Tube 8  Temperature  (SST) -6 C 9 Chilled Glycol Range -1C TO 10 C                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Evaporator Circuit 1 Nos 10 Chilled Glycol Flow 15000 LPH  (T 5 C) 11 Capacity 88 KW 12 Types Shell and tube 13 Shell MOC Carbone steel (10 MM) (Seamless ) 14 Tube MOC And Types Copper (Grooved ) / U- Bundle 15 Connection Size DN150 16 Pressure Drop  0.4Bar 17 Water side Design pressure  10Bar 18 Design Pressure (Refrigerant Side)  25Bar 19 Pump 15000 Lph @ 15.5 Meter 20 Pump Qty / Types 1 Nos / Centrifuge Mono Block 21 Pump Power 1.2 KW   Condenser for Water Cooled chiller 22  Temperature  (SDT) +38 C 23  Type Shell & Tube 24  Capacity 109.2 KW 25  Shell MOC Carbon Steel, Epoxy Coated 26  Tube MOC & Type Copper, Plain,  Bundle 27 Connection Size 2 28 Water Flow 20000 LPH 29 Pressure Drop (Water Side) 0.4 Bar 30 Water Side Design Pressure 10Bar 31 Refrigerant Side Design Pressure 30Bar 32 Pump 20000 LPH @ 17 m head 33 Pump Qty / Type 1 No., Centrifugal Mono Block 34 Pump Power 2.2 kW, 380415 V, 50 Hz         Compressor   35 Compressor types Scroll  36 Capacity Steps 100%  37 Capacity Control --  38 Compressor Starter Star- Delta  39 Cooling Capacity 88 kW  40 Power Input 24.77 kW  41 Curren
