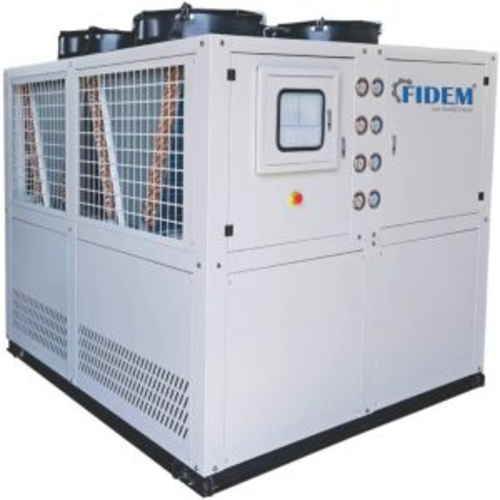

50 tr air cooled screw chiller

Price 1400000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

50 tr air cooled screw chiller Specification

Material
Metal

Application
AIR COOLED CHILLER

Water Flowing Rate
29300 LPH ( T = 5 C)

Air Flow
(Condenser Air Flow)20000 CFM ft3/min (CFM)

Motor
3 KW

Refrigerating Capacity
175 KW

Usage
Beverage & Bottling Plants Dairy & Milk Processing Units Pharmaceutical & Chemical Industries

Condition
New

Type
AIR COOLED SCREW CHILLER

Dimension (L*W*H)
580x360x385mm Millimeter (mm)

Size
STANDARD

Height
385 Millimeter (mm)

Power Supply
400V, 3Ph, 50Hz

Product Type
CHILLER

Weight
2000 Kilograms (kg)

Voltage
400 Volt (v)

Cooling Type
Air Cooled SCREW chiller

Color
Multi Color

Nozzle Material
Copper Tubes with Aluminum Fins

Length
580 Millimeter (mm)

Width
360 Millimeter (mm)

Cooling Coil Material
SHELL AND TUBE COPPER

Water Pump Motor
3 kW

Noise Control
30 db

Compressor
Semi-Hermetic Screw

Warranty
1 YEAR

50 tr air cooled screw chiller Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
3 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Standard And Secure

Main Export Market(s)
North America, South America, Middle East, Africa, Asia, Australia, Eastern Europe, Western Europe, Central America

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About 50 tr air cooled screw chiller

Technical Specification:

Sr. No.	Parameter	Details
1	Model	FMACSC-50TR-R407C
2	Cooling Capacity	48.50 TR / 170 kW
3	Refrigeration Circuit	1 No
4	Power Supply	400 V, 3 Phase, 50 Hz
5	Connected Load	53.2 kW / 83.55 A
6	Refrigerant	R407C
7	Refrigerant Control	Thermostatic Expansion Valve
8	Evaporating SST	5C
9	Condensing SDT	45C
10	Ambient Temperature	Max. 45C
11	Working Temperature Range	+7C to +20C
12	Chilled Water Flow	29,300 LPH (T = 5C)
13	Condenser Air Flow	20,000 CFM
14	Fan Type	Axial Type, Large Blade
15	Fan Quantity	4 Nos
16	Fan Size	22 Inches (Suction Type)
17	Fan Power	0.6 kW 4 Nos = 2.4 kW
18	Compressor Type	Semi-Hermetic Screw
19	Compressor Quantity	1 No
20	Compressor Make & Model	Bitzer
21	Compressor Power	47 kW / 81 A @ 50 Hz
22	Start Mode	StarDelta Starter
23	Capacity Control	Step Control (0%, 25%, 50%, 75%, 100%)
24	Evaporator Type	Shell & Tube Type
25	Evaporator Shell MOC	Carbon Steel, Powder Coated
26	Evaporator Tube MOC	Inner Grooved Copper Tubes
27	Evaporator Baffle & Header	SS-304, TIG Welded
28	Evaporator Design Pressure	10 Bar
29	Evaporator Test Pressure	15 Bar (Hydrostatic)
30	Evaporator Pipe Connection	3 BSP (Inlet & Outlet)
31	Evaporator Insulation	40 mm PUF, Closed Cell
32	Condenser Type	Air Cooled (Copper Tubes & Aluminum Fins)
33	Pump Power	3 kW
34	Pump Head (Lift)	2.2 kg
35	Condenser Pipe Size	3/8
36	Condenser Support	Galvanized Steel Frame
37	Safety Protections	Inner Thermostat, HP/LP Switch, Overload Relay, Phase Reverse Protection, Flow Switch, Anti-Freeze Protection, Discharge Temperature Protection, Low Water Level Protection
38	Electrical Panel	MCB, Contactor, Overload Relay, Timer, Relays, Pre-wired Panel, PLC, HMI
39	Dimensions (L W H)	To be provided after order confirmation along with GA drawing
