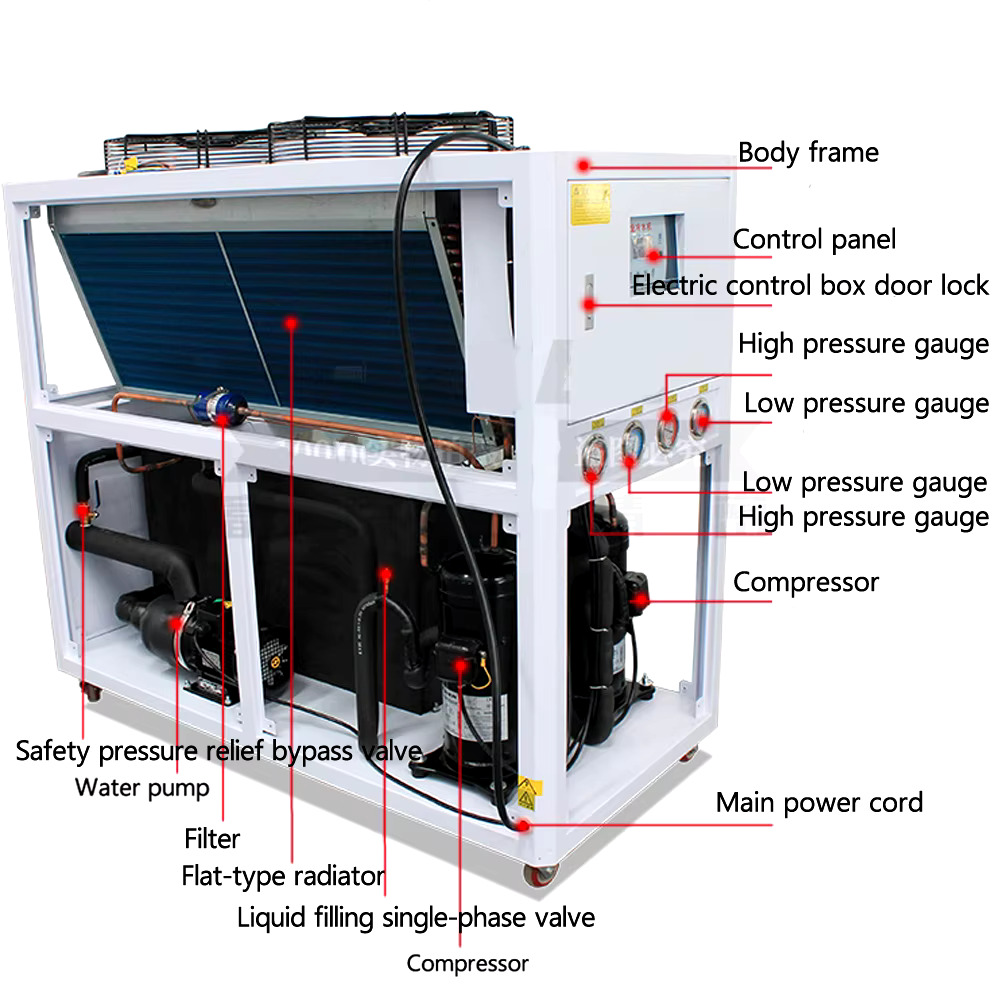

Air Cooled Glycol Chiller

Name: Air Cooled Glycol Chiller
Brand: AQUATECH PLUS PVT. LTD.
Price: 210000.0 INR
Availability: InStock

Price 210000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Air Cooled Glycol Chiller Specification

Application
Industrial Cooling, Process Cooling, Beverage, Chemical & Pharmaceutical Plants

Motor
1 HP to 5 HP (As per chiller capacity)

Air Flow
2500 5000 CFM ft3/min (CFM)

Water Flowing Rate
200 800 LPH (customizable)

Material
Metal

Refrigerating Capacity
2 TR to 100 TR (as per model)

Condition
New

Usage
Industrial

Type
Air Cooled Glycol Chiller

Power Supply
Electric

Product Type
Industrial Chiller

Voltage
440 Volt (v)

Color
White Paint Coated

Cooling Type
Air Cooled

Nozzle Material
Stainless Steel

Cooling Coil Material
Copper

Water Pump Motor
Branded Pump with SS Body

Noise Control
Low Noise (<75 dB) db

Compressor
Scroll / Semi-Hermetic Type

Warranty
Yes (1 Year)

Air Cooled Glycol Chiller Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Sample Available
No

Packaging Details
Standard

Main Export Market(s)
Eastern Europe, Africa, South America, Asia, Australia, North America, Central America, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About Air Cooled Glycol Chiller

The Air Cooled Glycol Chiller is a powerful and efficient industrial cooling solution that operates on electric power supply. Made of durable metal material and coated in white paint, this chiller is designed for long-lasting performance in industrial environments. With a voltage of 440 Volt (v), this chiller ensures reliable and consistent cooling for various applications. The chiller comes with a warranty, providing peace of mind to users.

Model			FMACSGL-10	FMACSGL-12	FMACSGL-14	FMACSGL-25	FMACSGL-31
Cooling capacity	0	kw	33.4	44.2	50.5	87.7	110.6
Cooling capacity	-5	kw	28.4	37.6	43	74.5	94
Power	kw		15.84	20.51	23.52	40.18	47.92
Power Supply			3PH-380V-50HZ
	Type		R22/R407C
Refrigerant	Control		Thermostatic expansion valve
Compressor	Type		Hermetic scroll type
Compressor	Power	kw	4.4*3	8.7*2	10.2*2	8.7*4	10.2*4
Evaporator	Type		SS Tank with coil or Heat exchanger plate
	m/h Flow	0	6.33	8.37	9.57	16.62	20.96
	m/h Flow	-5	5.84	7.73	8.85	15.33	19.34
	Capacity	L	270	350	350	580	580
	Pipe diameter		DN40	DN40	DN40	DN65	DN80
Condenser	Type		High efficiency hydrophilic aluminum foll finned type
Condenser	Power	kw	0.55*2	0.78*2	0.78*2	0.78*4	0.78*4
pump	Type
	Power	kw	1.5	1.5	1.5	2.2	2.2
	lift	m	20	20	20	20	19
Protection System			Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	mm	1800	2100	2100	2000	2000
	W	mm	1000	1000	1000	2000	2000
	H	mm	1600	1700	1700	1750	1750
Wight	kg		750	850	900	1350	1600

Application:-

Beverage & Brewery IndustryCooling fermentation tanks, wort chilling, and beverage storage.
Food ProcessingChilling dairy, meat, seafood, and frozen foods.
Pharmaceutical & Chemical IndustryMaintaining precise temperatures in medicine production and chemical reactions.
Plastic & Rubber IndustryCooling injection molding and extrusion processes.
HVAC & Data CentersClimate control and cooling of IT equipment.
Metal Processing & Laser CuttingCooling machinery and high-temperature processes.
Ice Rinks & Cold StorageMaintaining sub-zero temperatures for ice formation.
Medical & Research LabsCooling MRI machines, blood storage, and laboratory processes.
Supermarkets & Refrigeration SystemsKeeping perishable goods fresh.
