Air Cooled Screw Chiller

1400000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type Screw Chiller
Material Metal
Color White
Condition New
Type Screw Chiller
Power Supply Electrical
Voltage 220/440 Volt (v)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Air Cooled Screw Chiller Price And Quantity

Price 1400000.0 INR/Unit
Minimum Order Quantity 1 Unit

Air Cooled Screw Chiller Product Specifications

Voltage 220/440 Volt (v)
Condition New
Type Screw Chiller
Material Metal
Color White
Cooling Type Air Cooled
Product Type Screw Chiller
Power Supply Electrical

Air Cooled Screw Chiller Trade Information

FOB Port Mundra
Payment Terms Letter of Credit (L/C) Cheque Telegraphic Transfer (T/T)
Supply Ability 10 Unit Per Month
Delivery Time 1 Months
Sample Available No
Packaging Details Special case wooden Packing
Main Export Market(s) Asia Middle East Africa
Main Domestic Market All India
Certifications ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

Product Description

Product Overview

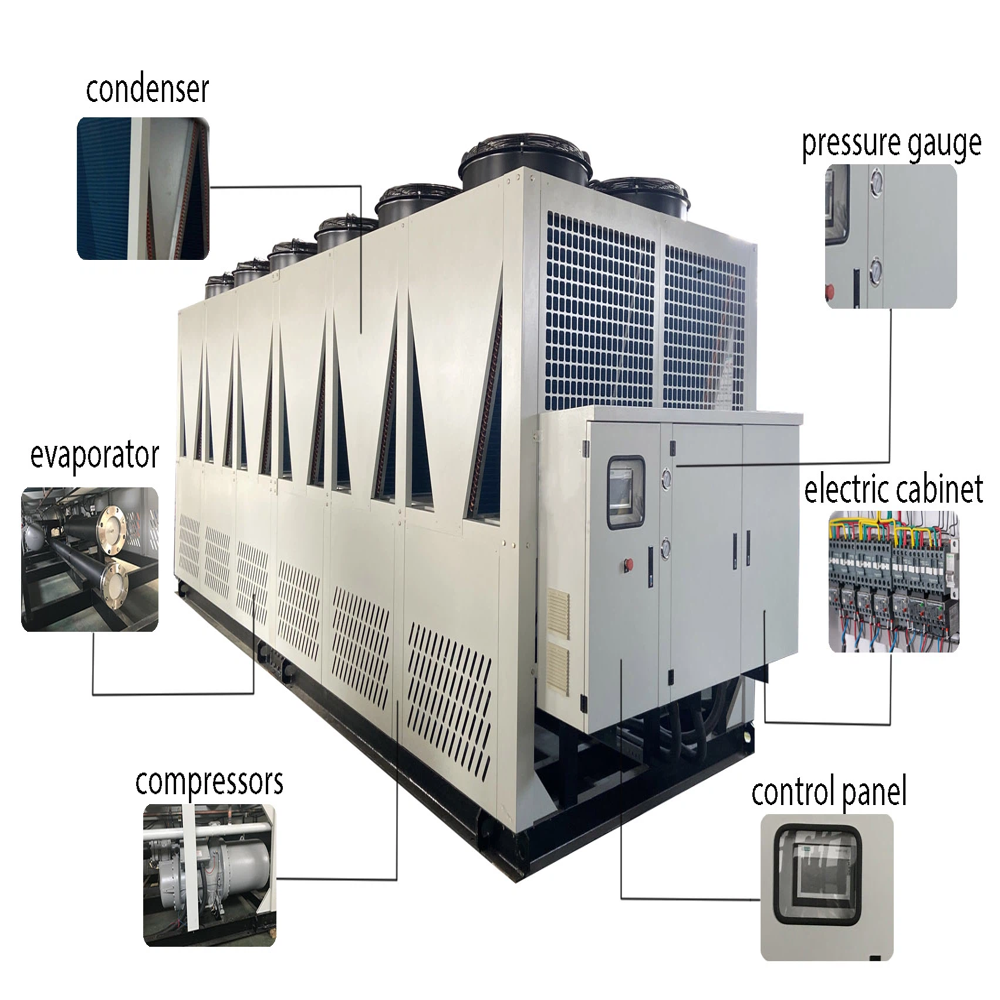

The Fidem Series Air-Cooled Screw Chiller offers cooling capacities ranging from 85kW to 1550kW, designed to provide high efficiency and reliable performance. These units integrate the best features of modern chillers, utilizing imported semi-closed screw compressors, high-efficiency heat exchangers, and advanced microcomputer controllers for easy operation and maintenance. The installation is simple users only need to connect the water system pipeline and power supply for operation.

Applications

These chillers are widely used across multiple industries, providing process chilled water for textile, chemical, petroleum, and mining enterprises. Built with mature and stable technology, the Fidem series ensures durability and reliability in industrial applications.

Key Features

1. High-Performance Compressor

Uses original double/single screw compressor
Auto-adjusts based on load conditions
Equipped with level sensor to prevent low-loading lock-oil failure, extending lifespan

2. Premium Components

Employs high-class imported components
Equipped with dual compressors for independent or joint operation

3. User-Friendly Design

Switch control for easy operation and maintenance
Non-oxidization brass pipe welding for durability

4. High-Safety Standard

Safe and stable operation

Safety Protection System

Compressor Reverse Protection
Freeze Protection
Refrigerant Safety Valve
Buzzer Alarm System
High & Low Pressure Gauges
Power Phase Failure Protection
Coil Overheat Protection
Automatic Temperature Switch
Refrigerant Shortage Protection

Air cooled screw chiller (Environmental Protection)
Model		FMACSCREW 120F	FMACSCREW M140F	FMACSCREW 160F	FMACSCREW 180F	FMACSCREW 200F	FMACSCREW 260F	FMACSCREW 300F	FMACSCREW 350F
Cooling	KW	117	143	162	181	195	260	299	349
Capacity	Kcal/Hr	10620	122980	139320	155631	167700	223600	257140	300140
	RT	33.27	40.66	46.06	51.46	55.44	73.93	85.02	99.23
Power	50HZ	3P-380V-50HZ
Input power(KW)		37.2	51.5	57.3	64.1	68.8	86.2	99.6	115.7
EER	COP	3.15	2.78	2.83	2.82	2.83	3.02	3	3.02
Freezing medium		R134a
control mode		Thermal expansion valve
Compressor	Mode	Semi-closed double screw
	Working style	Y-/-
	Capacity	0-25%-50%-75%-100%
Condenser	Mode	Finned type
	Cooling air temperature	In 35/Out 45
	Wind flow (m/h)	60000	60000	90000	90000	120000	120000	180000	180000
	Fan quantity	4	4	6	6	6	8	12	12
	Motor powerKW)	0.85*4	0.85*4	0.85*6	0.85*6	0.85*6	0.85*8	0.85*12	0.85*12
Evaporator	mode	Efficient finned tube filled with liquid
	Freeze water temperature	In 12/Out 7
	Freeze water flow (m/h)	20.1	24.6	27.9	31.1	33.5	44.7	51.4	60
	Pressure loss (Kpa)	52	52	55	58	58	58	58	61
	water pipe	DN80	DN80	DN80	DN80	DN80	DN80	DN100	DN100
Safeguard		High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection;
Safeguard		high pressure safety valve protection; oil pressure protection; exhaust over heat protection
Units Weight	Kg	2000	2500	2600	2700	3500	3600	4400	4600
Size	L(mm)	2080	2080	3060	3060	4040	4040	6000	6000
	W(mm)	2200	2200	2200	2200	2200	2200	2200	2200
	H(mm)	2220	2220	2220	2220	2260	2260	2260	2260
Noise(dB)		72	72	72	73	74	74	75	75

The listed cooling capacity parameters are based on conditions of a dry bulb temperature of 35, with water temperatures of 12 (inlet) and 7 (outlet).

Customization options are available to meet specific requirements.

If heat recovery is required, please specify, as the recovery rate can range from 25%-30% of the unit's refrigeration capacity, reaching temperatures up to 55.

FAQ Air-Cooled Screw Chiller

1. What is an air-cooled screw chiller?
An industrial cooling system using air to dissipate heat and a screw compressor for refrigeration.

2. How does it work?
It absorbs heat from water, compresses refrigerant, and releases heat into the air via a finned condenser.

3. What are its advantages?

No cooling tower required
Energy-efficient with automatic load adjustment
Ideal for areas with limited water supply
Easy installation and maintenance

4. Where is it used?
Industries like plastics, chemicals, food processing, HVAC, and data centers.

5. How does it differ from a water-cooled chiller?

Air-cooled: Uses fans to release heat, no water required.
Water-cooled: Uses cooling towers, requires a water supply.

6. What is the lifespan?
Typically 15-20 years with proper maintenance.

7. What refrigerants are used?
Common types: R134a, R407C, R410A, R513A.

8. How do I select the right model?
Consider cooling capacity, temperature range, ambient conditions, and efficiency needs.

9. What maintenance is required?

Clean condenser coils
Check refrigerant levels
Inspect compressors and electrical systems
Replace air filters regularly

10. Does it support heat recovery?
Yes, waste heat can be used for hot water, improving efficiency.
