High efficiency cooling

Price 800000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

High efficiency cooling Specification

Refrigerating Capacity
25 tr

Water Flowing Rate
5000

Motor
3 HP

Application
chilling water

Material
Metal

Air Flow
NA ft3/min (CFM)

Usage
chilling water

Condition
New

Type
water cooled

Size
standard

Dimension (L*W*H)
100x50x75 Inch (in)

Height
50 Inch (in)

Power Supply
50 hetrz

Product Type
water cooled

Weight
500 Kilograms (kg)

Voltage
415 Volt (v)

Color
multi

Cooling Type
water cooled

Nozzle Material
metel

Length
75 Inch (in)

Width
100 Inch (in)

Cooling Coil Material
copper

Water Pump Motor
3 hp

Noise Control
415 db

Compressor
screw

Warranty
1 year

High efficiency cooling Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
5 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Packaging Details
standard packaging

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa, Australia, Central America, North America, South America

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About High efficiency cooling

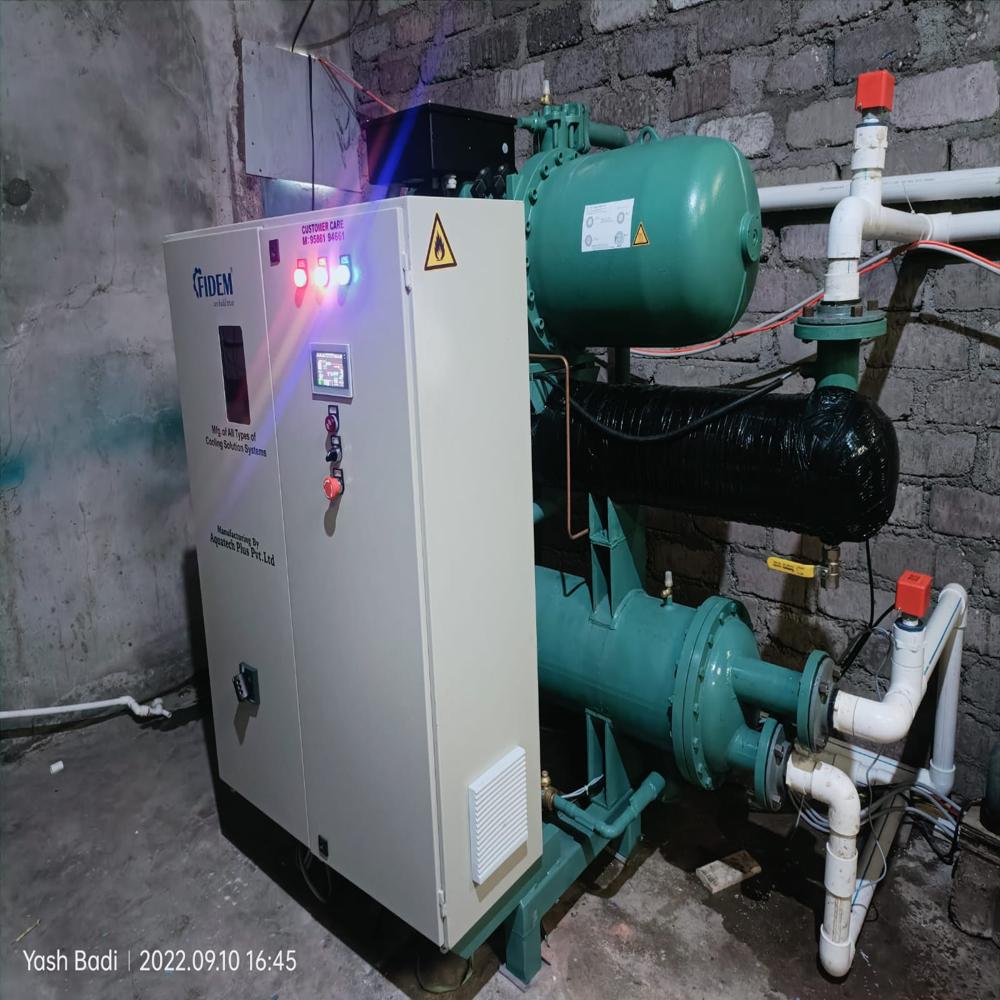

The FIDEM 25 TR Glycol Water-Cooled Scroll Chiller (Model: FM-GWCS-25-410A) is a high-performance cooling system designed for reliable and energy-efficient process chilling applications. Built with advanced scroll compressor technology and a robust shell-and-tube heat exchanger design, this chiller ensures stable cooling performance even under demanding industrial conditions.

Sr. No.	Parameter	Details
1	Model	FM-GWCS-25-410A
2	Cooling Capacity	25 TR / 88 kW
3	Refrigeration Circuits	1 No.
4	Power Supply	3Ph, 415V, 50Hz
5	Total Connected Load	28.17 kW / 40.56 Amp
6	Refrigerant	R410A
7	Expansion Device	Electronic Expansion Valve
8	Evaporator Temperature (SST)	-6C
9	Chilled Glycol Range	-1C to 10C
10	Evaporator Circuit	1 No.
11	Chilled Glycol Flow	15000 LPH (T = 5C)
12	Evaporator Capacity	88 kW
13	Evaporator Type	Shell & Tube
14	Evaporator Shell MOC	Carbon Steel (10 mm, Seamless)
15	Evaporator Tube MOC & Type	Copper (Grooved), U-Bundle
16	Evaporator Connection Size	DN150
17	Evaporator Pressure Drop	0.4 Bar
18	Water Side Design Pressure	10 Bar
19	Refrigerant Side Design Pressure	25 Bar
20	Evaporator Pump	15000 LPH @ 15.5 m head
21	Pump Qty / Type	1 No. / Centrifugal Monoblock
22	Pump Power	1.2 kW
23	Condensing Temperature (SDT)	+38C
24	Condenser Type	Shell & Tube
25	Condenser Capacity	109.2 kW
26	Condenser Shell MOC	Carbon Steel, Epoxy Coated
27	Condenser Tube MOC & Type	Copper, Plain Bundle
28	Condenser Connection Size	2"
29	Condenser Water Flow	20000 LPH
30	Condenser Pressure Drop	0.4 Bar
31	Water Side Design Pressure (Condenser)	10 Bar
32	Refrigerant Side Design Pressure (Condenser)	30 Bar
33	Condenser Pump	20000 LPH @ 17 m head
34	Pump Qty / Type	1 No. / Centrifugal Monoblock
35	Pump Power	2.2 kW (380415V, 50Hz)
36	Compressor Type	Scroll
37	Capacity Steps	100%
38	Capacity Control	--
39	Compressor Starter	StarDelta
40	Cooling Capacity (Compressor)	88 kW
41	Compressor Power Input	24.77 kW
42	Current	Not Provided
