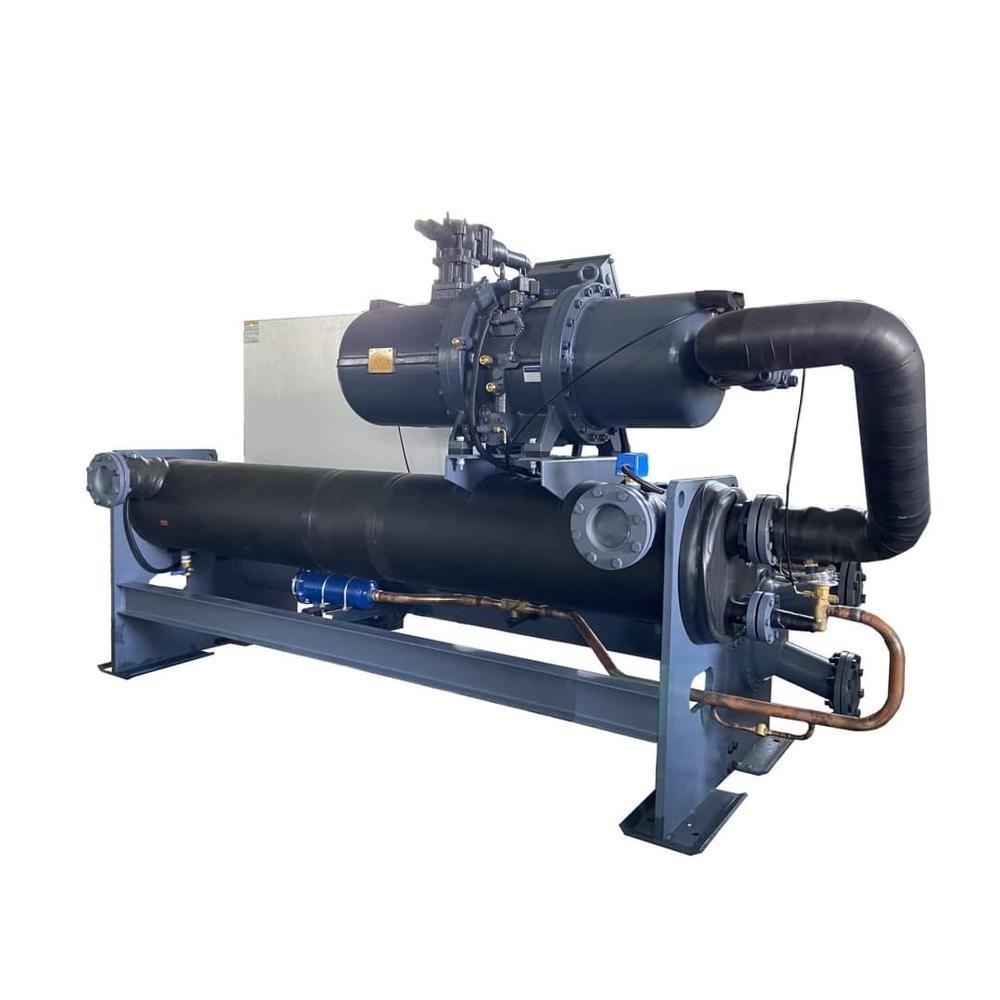

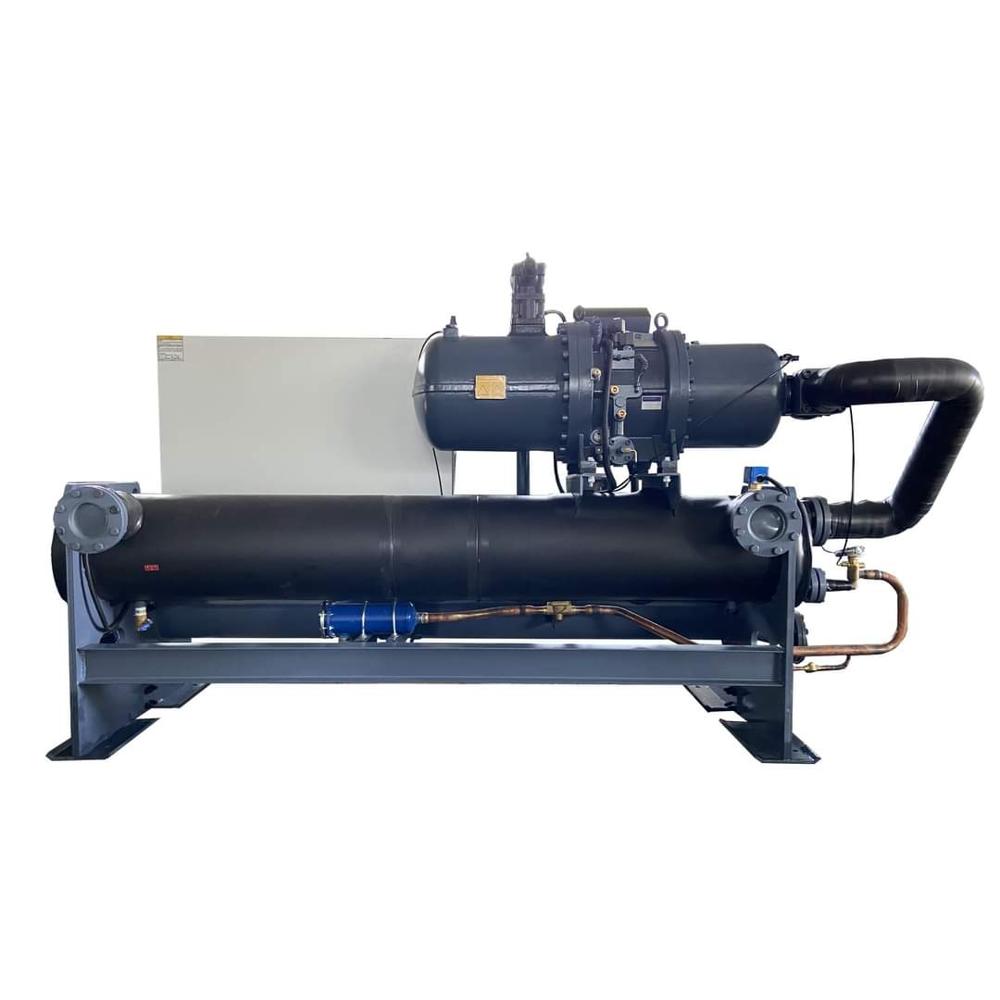

Water cooled chiller for plastic industry

Price 800000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Water cooled chiller for plastic industry Specification

Air Flow
NA ft3/min (CFM)

Material
Metal

Water Flowing Rate
5000

Refrigerating Capacity
25 tr

Motor
3 HP

Application
chilling water

Condition
New

Usage
chilling water

Type
water cooled

Size
standard

Dimension (L*W*H)
100x50x75 Inch (in)

Height
50 Inch (in)

Product Type
water cooled

Power Supply
50 hetrz

Weight
500 Kilograms (kg)

Voltage
415 Volt (v)

Color
multi

Cooling Type
water cooled

Length
75 Inch (in)

Nozzle Material
metel

Width
100 Inch (in)

Cooling Coil Material
copper

Water Pump Motor
3 hp

Noise Control
30 db

Compressor
screw

Warranty
1 year

Water cooled chiller for plastic industry Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
5 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Packaging Details
standard packaging

Main Export Market(s)
Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About Water cooled chiller for plastic industry

Technical Specification FIDEM Glycol Water Cooled Scroll Chiller Sr. No. Parameter Details 1 Model FM-GWCS-25-410A 2 Cooling Capacity 25TR / 88 kW 3 Refrigeration Circuits 1 Nos 4 Power Supply 3Ph, 415V, 50Hz 5 Total Connected Load 28.17kW / 40.56 Amp 6 Refrigerant R410A 7 Expansion Electric Expansion Valve Evaporator - Shell and Tube 8 Temperature (SST) -6 C 9 Chilled Glycol Range -1C TO 10 C Evaporator Circuit 1 Nos 10 Chilled Glycol Flow 15000 LPH (T 5 C) 11 Capacity 88 KW 12 Types Shell and tube 13 Shell MOC Carbone steel (10 MM) (Seamless ) 14 Tube MOC And Types Copper (Grooved ) / U- Bundle 15 Connection Size DN150 16 Pressure Drop 0.4Bar 17 Water side Design pressure 10Bar 18 Design Pressure (Refrigerant Side) 25Bar 19 Pump 15000 Lph @ 15.5 Meter 20 Pump Qty / Types 1 Nos / Centrifuge Mono Block 21 Pump Power 1.2 KW Condenser for Water Cooled chiller 22 Temperature (SDT) +38 C 23 Type Shell & Tube 24 Capacity 109.2 KW 25 Shell MOC Carbon Steel, Epoxy Coated 26 Tube MOC & Type Copper, Plain, Bundle 27 Connection Size 2 28 Water Flow 20000 LPH 29 Pressure Drop (Water Side) 0.4 Bar 30 Water Side Design Pressure 10Bar 31 Refrigerant Side Design Pressure 30Bar 32 Pump 20000 LPH @ 17 m head 33 Pump Qty / Type 1 No., Centrifugal Mono Block 34 Pump Power 2.2 kW, 380415 V, 50 Hz Compressor 35 Compressor types Scroll 36 Capacity Steps 100% 37 Capacity Control -- 38 Compressor Starter Star- Delta 39 Cooling Capacity 88 kW 40 Power Input 24.77 kW 41 Curren
