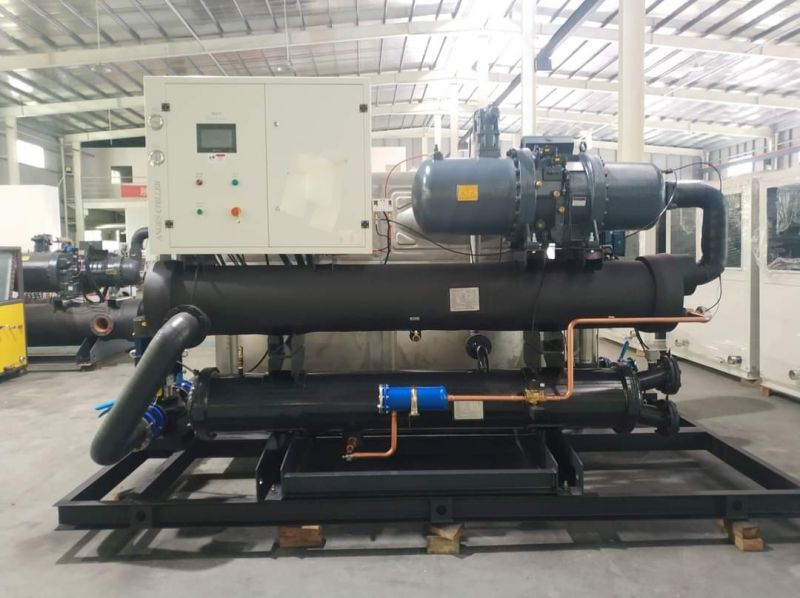

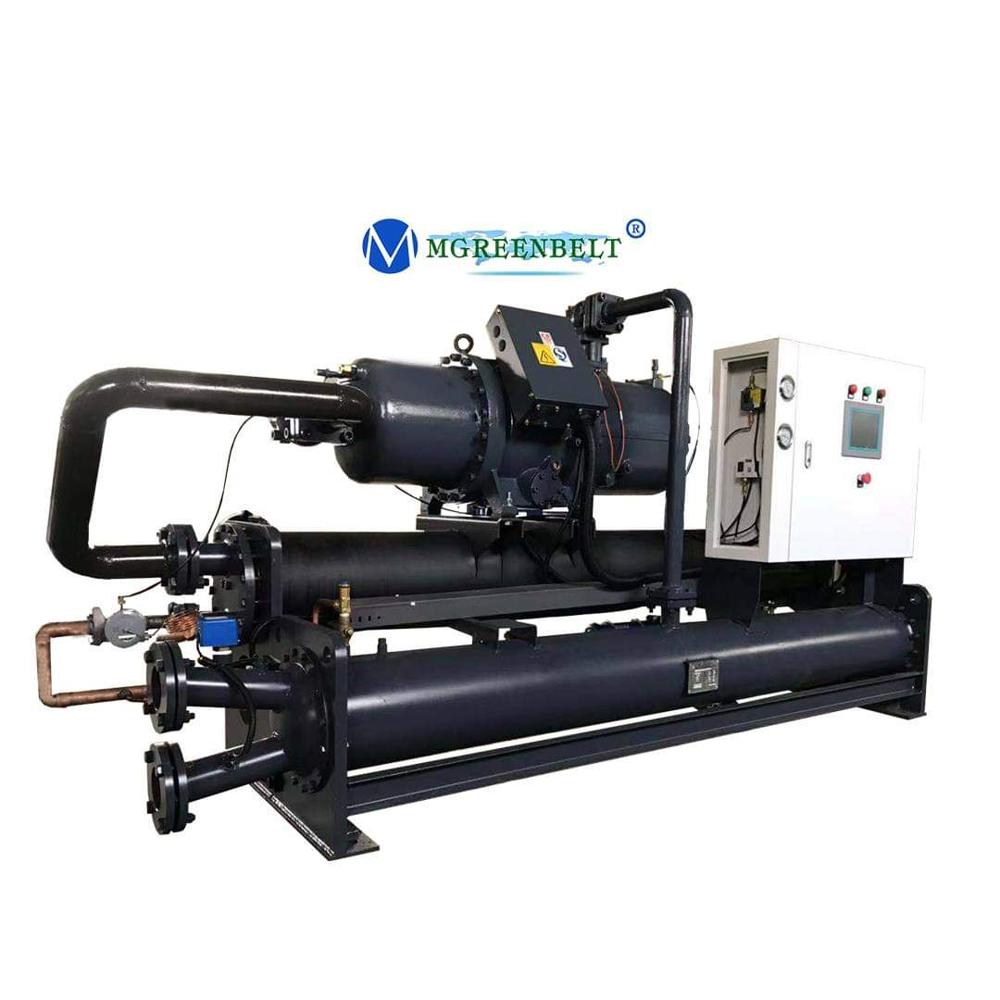

Industrial water cooled chiller

Price 3300000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Industrial water cooled chiller Specification

Motor
5 hp

Application
chilling water

Refrigerating Capacity
150 tr

Material
Metal

Water Flowing Rate
40000

Air Flow
NA ft3/min (CFM)

Usage
chilling water

Condition
New

Type
water cooled

Size
standard

Dimension (L*W*H)
180x90x90 Inch (in)

Height
90 Inch (in)

Power Supply
50 hertz

Product Type
water cooled screw chiller

Voltage
415 Volt (v)

Weight
1000 Kilograms (kg)

Color
multi

Cooling Type
water cooled

Nozzle Material
metel

Width
180 Inch (in)

Length
180 Inch (in)

Cooling Coil Material
copper

Water Pump Motor
5 hp

Noise Control
30 db

Compressor
screw

Warranty
1 year

Industrial water cooled chiller Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
5 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Standard packaging

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About Industrial water cooled chiller

Technical Specification FIDEM Water Cooled Screw Chiller Sr. No. Parameter Details 1 Model FM-WCS-150-407C 2 Cooling Capacity 150 TR / 527 kW 3 Refrigeration Circuits 2 Nos 4 Power Supply 3Ph, 415V, 50Hz 5 Total Connected Load 112.1 kW / 204.8 Amp 6 Refrigerant R407C 7 Expansion Electric Expansion Valve Evaporator - Shell and Tube 8 Temperature (SST) 10 C 9 Chilled water Range 15 C TO 20 C Evaporator Circuit 2 Nos 10 Chilled water Flow 19700 LPH (T 23 C) 11 Capacity 527 KW 12 Types Shell and tube 13 Shell MOC Carbone steel (10 MM) (Seamless ) 14 Tube MOC And Types Copper (Grooved ) / U- Bundle 15 Connection Size 6 16 Pressure Drop 0.4Bar 17 Water side Design pressure 10Bar 18 Design Pressure (Refrigerant Side) 25Bar 19 Pump 90000 Lph @ 15 Meter 20 Pump Qty / Types 1 Nos / Centrifuge Mono Block 21 Pump Power 5.5 KW Condenser for Water Cooled chiller 34 Temperature (SDT) +35 C 35 Type Shell & Tube 36 Capacity 718 KW 37 Shell MOC Carbon Steel, Epoxy Coated 38 Tube MOC & Type Copper, Plain, Bundle 39 Connection Size 6 40 Water Flow 140000 LPH 41 Pressure Drop (Water Side) 0.4 Bar 42 Water Side Design Pressure 10Bar 43 Refrigerant Side Design Pressure 30Bar 44 Pump 110000 LPH @ 10 m head 45 Pump Qty / Type 1 No., Centrifugal Mono Block 46 Pump Power 5.5 kW, 380415 V, 50 Hz Compressor 58 Compressor types Compact Screw 59 Capacity Steps 100% 60 Capacity Control 25,50,75,100 Step/Stepless 61 Compressor Starter Star- Delta (VFD- Optional) 62 Cooling Capacity 550 kW 64 Power Input
