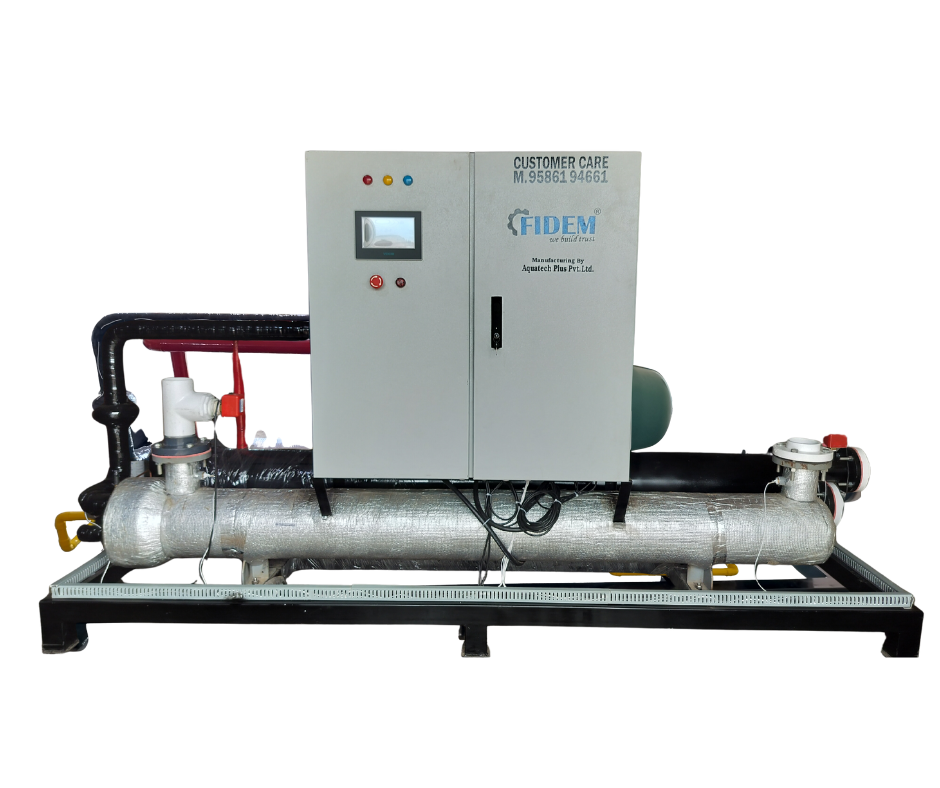

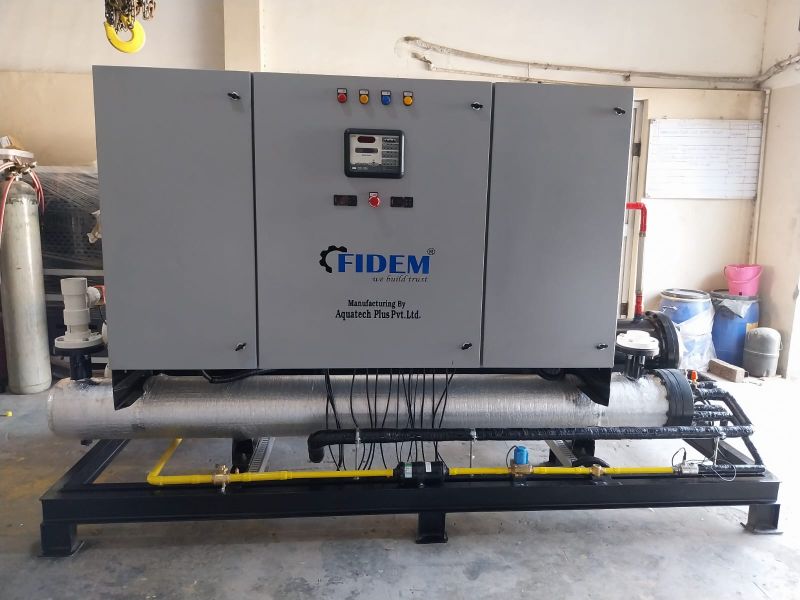

Low maintenance chille

Price 4700000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Low maintenance chille Specification

Refrigerating Capacity
170 TR

Application
CHILLING WATER

Water Flowing Rate
20000

Material
Metal

Motor
5 HP

Air Flow
NA ft3/min (CFM)

Usage
CHILLING WATER

Condition
New

Type
WATER COOLED

Size
STANDARD

Dimension (L*W*H)
3800x2400x1200 Millimeter (mm)

Height
1200 Millimeter (mm)

Product Type

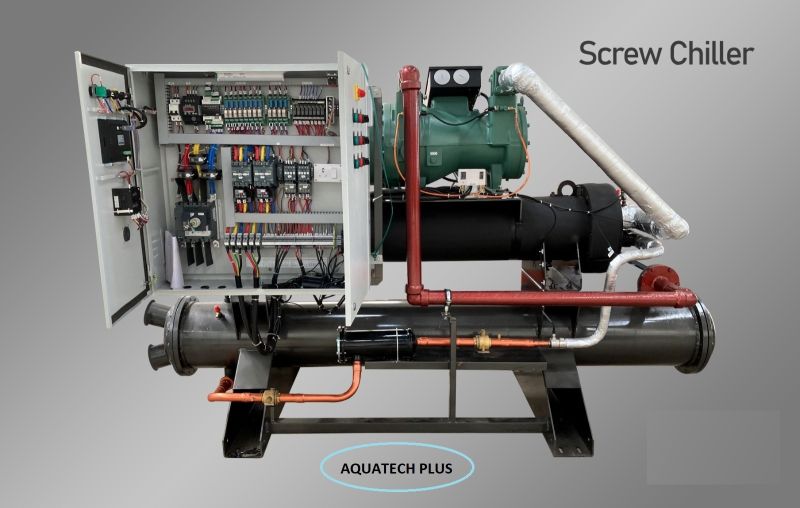

WATER COOLED SCREW CHILLER

Power Supply
50 HERTZ

Weight
1500 Kilograms (kg)

Voltage
415 Volt (v)

Color
MULTI

Cooling Type
WATER COOLED

Nozzle Material
METEL

Width
3400 Millimeter (mm)

Length
2400 Millimeter (mm)

Cooling Coil Material
COPPER

Water Pump Motor
5 HP

Noise Control
30 db

Compressor
screw

Warranty
1 YEAR

Low maintenance chille Trade Information

Minimum Order Quantity
1 Unit

FOB Port
MUNDRA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
5 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Packaging Details
STANDARD PACKAGING

Main Export Market(s)
North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America

Main Domestic Market
All India

Certifications
ISO/IEC 17025:2017 , CE, ROHS,ISO 9001:2015 IEC

About Low maintenance chille

Sr. No. Parameter Details 1 Model FM-GWCS-170-407C 2 Cooling Capacity 170TR / 599 kW 3 Refrigeration Circuits 2 Nos 4 Power Supply 3Ph, 415V, 50Hz 5 Total Connected Load 140kW / 230 Amp 6 Refrigerant R407C 7 Expansion Electric Expansion Valve Evaporator - Shell and Tube 8 Temperature (SST) 5 C 9 Chilled Glycol Range 0 C TO 15 C Evaporator Circuit 2 Nos 10 Chilled Glycol Flow 100000 LPH (T 5 C) 11 Capacity 600KW 12 Types Shell and tube 13 Shell MOC Carbone steel (10 MM) (Seamless ) 14 Tube MOC And Types Copper (Grooved ) / U- Bundle 15 Connection Size DN150 16 Pressure Drop 0.4Bar 17 Water side Design pressure 10Bar 18 Design Pressure (Refrigerant Side) 25Bar 19 Pump 90000 Lph @ 15 Meter 20 Pump Qty / Types 1 Nos / Centrifuge Mono Block 21 Pump Power 7 KW Condenser for Water Cooled chiller 34 Temperature (SDT) +35 C 35 Type Shell & Tube 36 Capacity 720 KW 37 Shell MOC Carbon Steel, Epoxy Coated 38 Tube MOC & Type Copper, Plain, Bundle 39 Connection Size DN200 40 Water Flow 100000 LPH 41 Pressure Drop (Water Side) 0.4 Bar 42 Water Side Design Pressure 10Bar 43 Refrigerant Side Design Pressure 30Bar 44 Pump 100000 LPH @ 10 m head 45 Pump Qty / Type 1 No., Centrifugal Mono Block 46 Pump Power 7.5 kW, 380415 V, 50 Hz Compressor 58 Compressor types Compact Screw 59 Capacity Steps 100% 60 Capacity Control 25,50,75,100 Step 61 Compressor Starter Star- Delta 62 Cooling Capacity 599 kW 64 Power Input 121 kW 65 Current (400V) 201 A 66 Voltage Range 380 415 V
